P3 Outdoor LED Module
Outdoor LED Display
- Robust outdoor LED display with a pixel pitch of 3.0mm
- High brightness and better contrast
- Support multiple outdoor applications
Pixel Pitch 3.0mm (Outdoor)
P3 outdoor LED display is designed to inform and captivate the audience outdoors. Suitable for digital billboards and any outdoor applications such as stadium scoreboards, outdoor advertising and roof billboards.
P3 Outdoor LED Screen

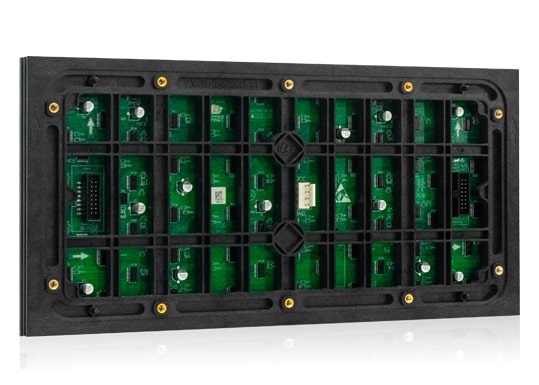

- P3.0 Outdoor LED display module with pixel pitch of 3mm.
- Lightweight and easy installation.
- High brightness with better colors and better image quality.
- Highly durable.
High Brightness
High screen brightness. Suitable for any outdoor applications.
Highly Durable
Designed to withstand extreme climatic conditions.
Easy Installation
Lightweight materials for easy installation and maintenance.
High Refresh Rate
Eliminate unwanted scanning lines using a high refresh rate.
P3 Outdoor LED Display - Specification
| Model | P3 |
| Pixel Pitch | 3.0mm |
| Module Size | 320 x 160mm |
| Module Resolution | 104 x 52 dots |
| LED Lamp Type | SMD 1515 |
| Brightness | 5,000 – 7,500nits (Adjustable) |
| Refresh Rate | 1,920Hz ~ 3,840Hz |
| Greyscale | 16-bit (281 trillion color) / 65,536 shades per primary color |
| Driving Method | 1/13 |
| Min Viewing Distance | > 3 meter |
| Pixel Density / m2 | 105,625 dots |
| IP Rating | IP65 |
| Power Rating (Typ) | 250W/m2 |
| Max Power Rating | 750W/m2 |
| Panel Material | Die-cast Aluminium/ Aluminium/ Steel Iron |
Outdoor LED Screen Applications
Digital Billboard
Advertising Board
