EP-40 Digital Signage Media Player

EP-40

Digital Signage Media Player

  • Support 4K Ultra HD playback
  • Low power consumption
  • Powered by Android 5.1

EP-40 Digital Signage Media Player

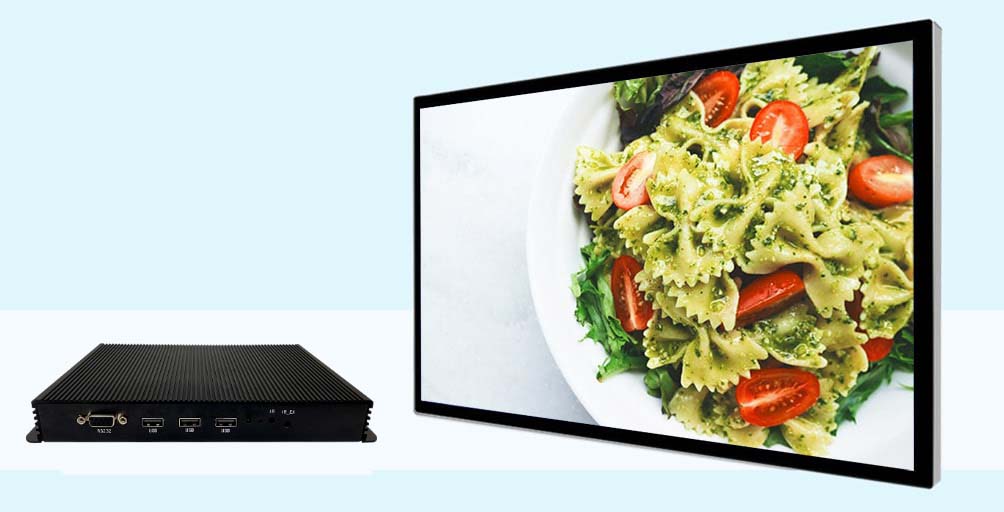

The EP-40 is a powerful 4K digital signage media player. It is used widely in various high-definition applications. The EP-40 is designed to support VGA and HDMI outputs.

What is a Digital Signage Media Player?

A digital signage media player is extremely important in rendering and delivering digital content. Without it, a digital signage can never display any content on the screen.

Digital Signage Player GEP-40

Features

  • Powered by Android 5.1
  • 8GB Internal Storage
  • Support TF card and USB
  • Support HDMI and VGA outputs
  • WIFI / LAN
  • 4K Ultra HD Playback
  • Support 24/7 Operation
  • Low Power Consumption
Digital Signage Player GEP-40

Features

  • Powered by Android 5.1
  • 8GB Internal Storage
  • Support TF card and USB
  • Support HDMI and VGA outputs
  • WIFI / LAN
  • 4K Ultra HD Playback
  • Support 24/7 Operation
  • Low Power Consumption

Digital Signage Player Lineup

Digital signage player for Full HD applications.

EP-60 Digital Signage Media Player

Digital signage player for 4K Ultra HD & interactive applications.

EP-40 Digital Signage Media Player

Digital signage player for 4K Ultra HD applications.

Applications of Digital Signage Player

Digital Signage For Hospital

Health Centres

Promotional Message Digital Signage

Retail Stores

Digital Signage For Quick Service Restaurant

QSR & Restaurants

Digital Signage For Transportation Hub

Airports / Train Stations

Digital Signage For Transportation Hub

Transportation Hub

Digital Signage For Quick Service Restaurant

Restaurant

Promotional Message Digital Signage

Retail Store

Digital Signage For Hospital

Hospital

EP-40 Specifications

ModelEP-40 4K Digital Signage Media Player

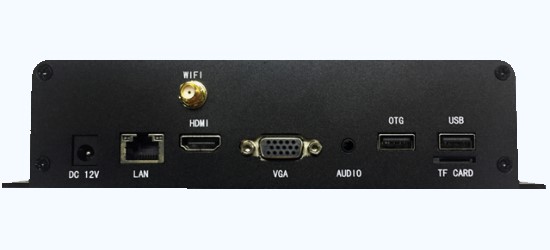

Supported Ports
  • IR and RS232
  • VGA, HDMI, 5 x USB
  • 3.5mm Audio Output
Power Input0.5A, 12V
Power Consumption≤ 6W
Working Temperature0℃~40℃
Network ConnectionWIFI, 1 x Gigabit LAN
GPUARM Quad Mali-764
CPUARM Quad-core Cortex A17 CPU (Up to 1.8GHz) + Rockchip RK3288
MemoryDDR3 2GB (optional 4GB)
Internal Storage8GB eMMC storage(TF/USB optional extended storage)
Memory ExpansionTF / USB
Operating SystemAndroid 5.1
Play ModeLoop, timing, live broadcast, synchronous play, and insert
Timing On/OffSupport
Decoding Resolution4K H.265 Decoding
FeaturesSupport background image and split screen combination. Support a combination of image, video, logo, subtitle, date, time, week and weather.
Supported Video FormatsH.264, MKV, WMV, FLV, TS, MPEG1, MPEG2, MPEG4
Supported Image FormatsPNG, BMP, JPEG
Supported Audio FormatsMP3
