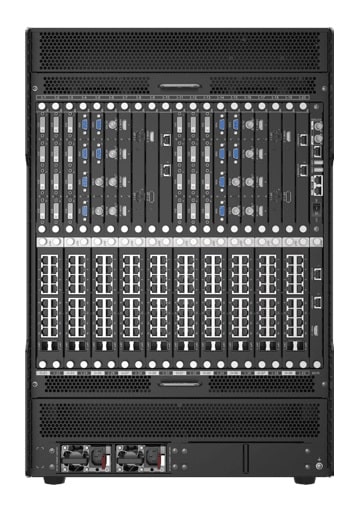

Novastar H15 Video Splicing Processor

NovaStar H15

H15 Video Splicing Processor

  • Various industry-standard input connectors
  • Powerful hardware FPGA system architecture
  • Allow backup between OPT ports and Ethernet ports

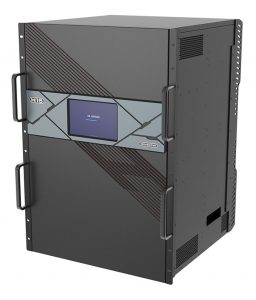

NovaStar H15 LED Video Splicing Processor

The NovaStar H15 is the newest generation of LED video splicing process. It features excellent image quality and video processing capability. It is designed specially to meet various LED screen applications, including the fine pitch LED display.

What is a Video Splicing Processor?

A video splicing processor is used to enable multi-screen display. Different input video signals can be processed and displayed together onto multiple large screens.

Novastar H15 Video Splicing Processor

Features

  • 20 x RJ45 sending card – loads up to 13,000,000 pixels.
  • 16 x RJ45 + 2 x fiber sending card – loads up to 10,400,000 pixels.
  • Multi-capacity configuration on a single card slot
    – 4 x 2Kx1K @ 60Hz
    – 2 x 4Kx1K @ 60Hz
    – 2 x 4Kx2K @ 60Hz
    – 1 x 4Kx2K @ 60Hz
  • Simple screen configuration.
  • Decimal frame rates supported.
  • Each screen can have its own output resolution.
  • Adopt the frame synchronization technology, ensuring all the output connectors to output the image synchronously.
  • Support irregular rectangle mosaic without any limitations.
  • Up to 2,000 presets.
  • Color adjustment.
  • XR scenario control.
  • Self-test for fault detection.
  • Backup design.
  • Auto monitoring and alarms.

Application

NovaStar H15 Video Splicing Processor support multi-layer and multi-screen management, input and output EDID management, BKG settings, OSD settings, and input source renaming.

Video Splicing Processor Application

High Quality Scaling

Featuring a content scaling engine, the video splicing processor helps to retain fine detail and great sharpness when the image size is scaled up.

NovaStar HQ scaling

Specifications

Input Card

4 x DVI input card

10-bit input source. HDCP 1.4 compliant. Do not support interlaced signal input.

  • Single link
    4 DVI connectors are used as input.
    Support max resolution of 2048 x 1152 @ 60Hz and min resolution of 800 x 600 @ 60Hz.
  • Dual-link
    Connector 1 and 3 are unavailable.
    Support max resolution of 3840 x 1080 @ 60Hz and min resolution of 800 x 600 @ 60Hz.
4 x HDMI input card

Do not support interlaced signal. 10-bit input source.

  • For HDMI 1.3 inputs :
    HDMI 1.3 connectors support min resolution of 800 x 600 @ 60Hz and max resolution of 2048 x 1152 @ 60Hz.
    HDMI 1.4 connectors support min resolution of 800 x 600 @ 60Hz and max resolution of 2048 x 1152 @ 60Hz.
  • For HDMI 1.4 inputs :
    Two HDMI 1.3 connectors are unavailable. Two HDMI 1.4 connectors are used. Support maximum resolution of  3840 x 1080 @ 60Hz. HDCP 1.4 compliant.
1 x HDMI 2.0 + 1 x DP 1.2

The default option is the HDMI 2.0 connector. Can choose to use the DP 1.2 connector. Use only one connector at one time.

  • 1 x HDMI 2.0
    Backward compatible with HDMI 1.3 and HDMI 1.4. HDCP 2.2 compliant.
    Support max resolution of 4096 x 2160 @ 60Hz or 8192 x 1080 @ 60 Hz (forced).
  • 1 x DP 1.2
    Backward compatible with DP 1.1. HDCP 2.2 compliant.
    Support max resolution of 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60Hz.
2 x RJ45 IP input card

2 x RJ45 Gigabit Ethernet port. Support interlaced signal input.

  • Support protocols : RTSP, GB28181 and ONVIF.
  • H.264 and H.265 formats.
  • Single card decoding.
    4 x 3840×2160 @ 30fps
    16 x 1920×1080 @ 30fps
  • DHCP compliant.
4 x 3G SDI input card

Max resolution of 1920 x 1080 @ 60Hz.

  • Support de-interlacing processing.
  • Backward compatible with HD-SDI and SD-SDI.
  • Support ST-424, ST-292 and SMPTE 259.
2 x CVBS + 2 x VGA
  • VGA
    Support max resolution 1920 x 1080 @ 60Hz.
  • CVBS
    Support PAL and NTSC.
4 x VGA
  • VGA input card
    Support max resolution 1920 x 1080 @ 60Hz.
2 x DP 1.1
  • DP 1.1
    Support max resolution 3840 x 1080 @ 60Hz or 3840 x 2160 @ 30Hz.
  • Support 8-bit and 10-bit inputs.
  • HDCP 1.3 compliant.
H_STD I/O card
  • 2 x COM
    Control devices that adopt RS422/RS485/RS232 protocol.
  • 1 x ETHERNET
    10/100Mbps self-adaptive.
    Support TCP/IP protocol and UDP/IP protocol.
  • 3 x I/O
    Trigger the execution of the function requirements via programming.
    Support input and output modes.
  • 3 x RELAY OUT
  • 3 x IR OUT
1 x 12G SDI input card
  • 12G SDI IN
    Support max resolution 4096 x 2160 @ 60Hz.
    Support de-interlacing processing.
    Do not support input resolution and bit depth settings.
  • 12G SDI LOOP
1 x HDMI 2.0 input card
  • HDMI 2.0
    Support max resolution 4096 x 2160 @ 60Hz or 8192 x 1080 @ 60 Hz (forced).
    HDCP 2.2 compliant.
2 x HDMI 2.0 input card
  • 2 x HDMI 2.0
    This card can be installed into the slots from I-1 to I-8 only.
    Two 4K inputs can be connected at the same time.
    Each connector supports the maximum resolution of 4096 x 2160 @ 60Hz or 8192 x 1080 @ 60Hz (forced).

Output Card

16 x RJ45 + 2 x fiber sending card

LED 4K sending card can load up to 10,400,000 pixels.

  • 16 x RJ45 Gigabit Ethernet output
    8-bit port loads up to 650,000 pixels.
    10-bit port loads up to 320,000 pixels.
  • 2 x OPT output
    Support both SMF and MMF transmission.
    OPT1 copies and outputs the data on Ethernet ports 1-8.
    OPT2 copies and outputs the data on Ethernet ports 9-16.
20 x RJ45 sending card

LED 4K sending card can load up to 13,000,000 pixels (max 10,752 x 10,752).

  • RJ45 Gigabit Ethernet output
    8-bit port loads up to 650,000 pixels.
    10-bit port loads up to 320,000 pixels.
  • Backup between Ethernet ports.
2 x RJ45 + 1 x HDMI 1.3 preview card
  • RJ45 Gigabit Ethernet output
    Connect to the network for monitoring the inputs and outputs.
  • 1 x HDMI 1.3
    Connect to a monitor for displaying the monitoring information.

Control Card

GENLOCKIN : Accept the Genlock Signal.
LOOP : Loop the Genlock Signal.
ETHERNETFor PC communication.
Connect to PC, switch or router.
For Web Control and NovaLCT screen configuration.
USB 1 & USB 2Update the device program.
Import or export the device configuration parameters.
COMIN : Accept the signal from the central control system.
OUT : Loop the signal.

Tech Specs

PowerAC 100V – 240V, 50/60Hz, 10A-5A
Power Consumption900W
Working Temperature0°C to 45°C
Working Humidity0% RH to 80% RH, non-condensing
Dimension482.6mm x 683.0mm x 533.0mm
Net Weight61.8 kg
Max Input Cards30
Max Input Channels120
Max Output Cards10
Max Loading Capacity130,000,000 pixels
Max Layers160
