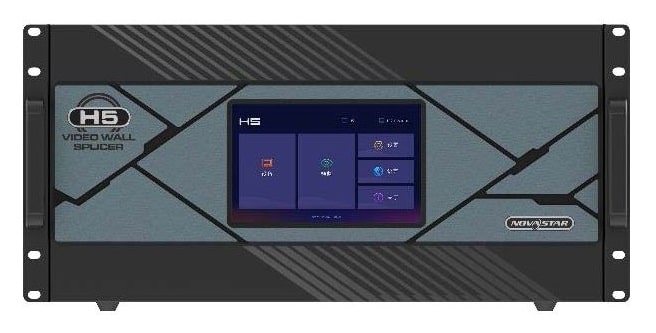

Novastar H5 Video Splicing Processor

NovaStar H5

LED Video Splicing Processor

  • All-in-one video splicing processor
  • Support fine pitch LED display applications
  • Create captivating visual effects

NovaStar H5 LED Video Splicing Processor

The NovaStar H5 is a professional video splicing processor which is widely used in various LED screen applications. Beside working as a pure splicing processor, the video processor also integrates both video control and video processing capabilities.

What is a Video Splicing Processor?

A video splicing processor is an important device that supports the control of multiple screens with different resolutions and effects. It processes multiple video input signals and output signals in real-time.

Novastar H5 Video Splicing Processor

Features

  • Two kinds of 4K LED sending cards that can load up to 10,400,000 pixels and 13,000,000 pixels.
  • Multi-capacity configuration on a single card slot.
  • Simple screen configuration using a single card and connector.
  • Support decimal frame rates.
  • Each screen can have its own output resolution.
  • HDR and 10-bit video processing.
  • Color adjustment.
  • Input source grouping management.
  • Bezel compensation.
  • Multi-layer display.
  • Support seamless switching.
  • Scheduled playback of preset playlist.
  • Up to 2,000 visual effect presets.
  • Auto monitoring and alarm.
  • Fault detection.

Multi-Screen

Support multi-screen management. Different screens can have different output resolutions.

Flexible Configuration

Support multi-layer display. Layers can be in any position, scaled or overlapped.

High Stability

Utilizing hot plugs for both inputs and outputs. Ensure a safe and convenient operation.

Application

NovaStar H5 is a powerful video splicing processor that supports multi-channel input sources such as DVI, HDMI, VGA, SDI, CVBS, DP and IP. It supports multi-screen and multi-layer management. The video splicing processor can be used to create various visual effects and configurations, including scrolling text, transition effect, scheduled playback, irregular screen configuration, logo and color adjustments.

Video Splicing Processor Application

The Beauty of 4K

H5 LED video splicing processor helps to create a true ultra high definition display. It supports 4K high-resolution inputs and outputs with a 10-bit or 12-bit color depth system.

4K LED Video Processor

High Dynamic Range

Enjoy the stunning viewing experience with a wide color gamut and high contrast ratio. Support High Dynamic Range (HDR) processing and provide finer details in both dark and light areas.

HDR LED video processor

Specifications

Input Card

4 x DVI input card

Support single link and dual link input modes. Support 10-bit input source.
HDCP 1.4 compliant. Do not support interlaced signal input.

  • Single link
    4 DVI connectors are used as input.
    Support min resolution of 800 x 600 @ 60Hz and max resolution of 2048 x 1152 @ 60Hz.
  • Dual-link
    Connector 2 and 4 are used as input.
    Support min resolution of 800 x 600 @ 60Hz and max resolution of 3840 x 1080 @ 60Hz.
4 x HDMI input card

Support 10-bit input source. Do not support interlaced signal input.

  • For HDMI 1.3 inputs :
    HDMI 1.3 connectors support max resolution of 2048 x 1152 @ 60Hz and min resolution of 800 x 600 @ 60Hz.
    HDMI 1.4 connectors support max resolution of 2048 x 1152 @ 60Hz and min resolution of 800 x 600 @ 60Hz.
  • For HDMI 1.4 inputs :
    Only two HDMI 1.4 connectors are used for input. Support max resolution of  3840 x 1080 @ 60Hz.
1 x HDMI 2.0 + 1 x DP 1.2

Only one connector can be used at one time. Do not support interlaced signal input.

  • HDMI 2.0
    Backward compatible with HDMI 1.3 and HDMI 1.4.
    Support max resolution of 4096 x 2160 @ 60Hz or 8192 x 1080 @ 60 Hz (forced).
  • DP 1.2
    Backward compatible with DP 1.1.
    Support max resolution of 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60Hz.
2 x RJ45 IP input card

2 x RJ45 Gigabit Ethernet port. Support interlaced signal input.

  • Support RTSP, ONVIF and GB28181 protocols.
  • Support H.264 and H.265 coding formats.
  • Single card decoding.
    4 x 3840×2160 @ 30fps
    16 x 1920×1080 @ 30fps
  • DHCP compliant.
4 x 3G SDI input card

Max resolution of 1920 x 1080 @ 60Hz.

  • Support de-interlacing processing.
2 x CVBS + 2 x VGA
  • VGA
    Support max resolution 1920 x 1080 @ 60Hz.
  • CVBS
    Support NTSC and PAL.
4 x VGA
  • VGA
    Support max resolution 1920 x 1080 @ 60Hz.
2 x DP 1.1
  • DP 1.1
    Support max resolution 3840 x 1080 @ 60Hz or 3840 x 2160 @ 30Hz.
  • Support 8-bit and 10-bit inputs.
H_STD I/O card
  • 2 x COM
    Control devices that adopt RS422/RS485/RS232 protocol.
  • 1 x ETHERNET
    10/100Mbps self-adaptive.
    Support TCP/IP protocol and UDP/IP protocol.
  • 3 x I/O
    Trigger the execution of the function requirements via programming.
    Support input and output modes.
  • 3 x RELAY OUT
  • 3 x IR OUT
1 x 12G SDI input card
  • 12G SDI IN
    Support max resolution 4096 x 2160 @ 60Hz.
    Support de-interlacing processing.
    Do not support input resolution and bit depth settings.
  • 12G SDI LOOP
1 x HDMI 2.0 input card
  • HDMI 2.0
    Support max resolution 4096 x 2160 @ 60Hz or 8192 x 1080 @ 60 Hz (forced).
    HDCP 2.2 compliant.

Output Card

16 x RJ45 + 2 x fiber sending card

LED 4K sending card can load up to 10,400,000 pixels (max 10,240 x 10,240).

  • RJ45 Gigabit Ethernet output
    8-bit port loads up to 650,000 pixels.
    10-bit port loads up to 320,000 pixels.
  • OPT output
    Support both SMF and MMF transmission.
20 x RJ45 sending card

LED 4K sending card can load up to 13,000,000 pixels (max 10,752 x 10,752).

  • RJ45 Gigabit Ethernet output
    8-bit port loads up to 650,000 pixels.
    10-bit port loads up to 320,000 pixels.
2 x RJ45 + 1 x HDMI 1.3 preview card
  • RJ45 Gigabit Ethernet output
    Connect to the network for monitoring the inputs and outputs.
  • 1 x HDMI 1.3
    Connect to a monitor for displaying the monitoring information.

Control Card

GENLOCKSupport bi-level and tri-level.
ETHERNETConnect to the control PC for communication.
Connect to the router, switch or PC.
For Web Control and NovaLCT screen configuration.
USB 2.0Update the device program.
Import or export the device configuration parameters.
COMA serial port that adopts RS232 serial protocol. Support central control system.

Tech Specs

PowerAC 100V – 240V, 50/60Hz, 10A-5A
Power Consumption400W
Working Temperature0°C to 45°C
Working Humidity0% RH to 80% RH, non-condensing
Dimension482.6mm x 532.8mm x 228.2mm
Net Weight25 kg
Max Input Cards10
Max Input Channels40
Max Output Cards3
Max Loading Capacity39,000,000 pixels (LED 4K sending caard)
Max Layers48
CertificationsFCC, IC
