Indoor LED Screen HD Series

High-definition indoor LED display to deliver exceptional viewing experience. Reach your target audience effectively with full HD, 2K or 4K Ultra HD LED screen.

BIG INDOOR LED Screen HD Series

Indoor LED Display HD Series

High-definition indoor LED display to deliver exceptional viewing experience. Reach your target audience effectively with full HD, 2K or 4K Ultra HD LED screen.

Improve Audience Engagement

BIG INDOOR LED Screen HD Series brings cable-less design together with exceptional indoor-ready picture quality to engage your audience with an immersive visual environment. Various pixel pitches available.

Fit perfectly different architectural curves to expand the display composition possibilities. Build LED wall and digital display with full HD, 2K or 4K UHD resolution easily.

BIG INDOOR LED Screen HD Series

Finer Pixel Pitch

Finer pixel pitch options available. Support high-definition LED display screen. Available in 300 x 337.5mm and 600 x 337mm LED screen sizes.

  • P0.93 – pixel pitch of 0.93mm
  • P1.25 – pixel pitch of 1.25mm
  • P1.56 – pixel pitch of 1.56mm
  • P1.87 – pixel pitch of 1.87mm
LED screen sizes
Wall mount installation of LED Screen

Easy To Assemble

LED cabinets can be customized to meet unique screen size requirements. Support wall-mount installation and make use of limited spaces effectively. Feel free to build your desired digital screen or LED video wall.

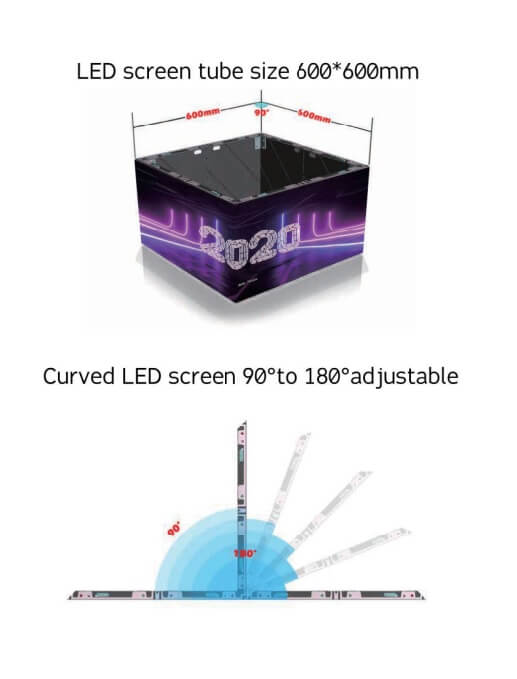

Fit Different Curves

Seamless splicing of the LED screen allows unlimited screen size, structure, and space. Fit perfectly different architectural curves to maximize the visual experience.

Seamless alignment of two cabinets can be achieved by using positioning pins and Coaxial screws.

Curved LED Screen
Eagle

Ultra-high Refresh Rate

The refresh rate can reach up to 3,840Hz. Support fast decoding and response. Eliminate visible lines and noise when capturing with a digital camera. Deliver clear and smooth visual experience.

Vivid Colours

16-bit processing technology helps to deliver excellent grayscale performance with vivid colours regardless of the screen brightness.

Vibrant LED Display
Wide viewing angle of Indoor LED Screen HD Series

Wide Viewing Angle

160° wide viewing. Deliver an excellent viewing experience without the loss of true colour definition.

Excellent Surface Flatness

Manufactured by a high-precision CNC machine, the aluminium case is light-weight, strong and anticorrosion proof. The flat pins in the aluminium case control have a tolerance within 0.05mm. The flatness of the LED screen allows viewers to enjoy the best viewing experience.

LED screen with High precision and even flatness
Front Maintenance Design

Front Maintenance Design

Front maintenance is a key engineering requirement for fine pitch LED displays. Thickness can be greatly reduced. Rear maintenance access can be eliminated to prevent dust accumulation and damage to the electronic components or the PCB boards. The modules can be replaced quickly with the vacuum sucker tool to guarantee the maintenance efficiency.

Fast & Hidden Interface

Power and signal cables are hidden inside of the LED cabinet to avoid accidental damage of the cables and to keep the entire LED screen neat. The usage of the aviation connectors integrates both data and power into one cable quickly.

The LED screen also adopts a dual backup design. The data backup will be activated automatically whenever there is an interruption of data transmitting.

Hidden Interface of LED Screen
Noiseless and Energy Saving LED Screen

Noiseless & Energy Saving

The aluminium back plate helps to ensure an effective heat dissipation. Zero noise ensures a more friendly operation since no fans are required in the cabinet. Besides, it also reduces the power consumption of the display effectively. Operation cost can be reduced.

LED screen sizes

Finer Pixel Pitch

Finer pixel pitch options available. Support high-definition LED display screen. Available in 300 x 337.5mm and 600 x 337mm LED screen sizes.

  • P0.93 – pixel pitch of 0.93mm
  • P1.25 – pixel pitch of 1.25mm
  • P1.56 – pixel pitch of 1.56mm
  • P1.87 – pixel pitch of 1.87mm
Wall mount installation of LED Screen

Easy To Assemble

LED cabinets can be customized to meet unique screen size requirements. Support wall-mount installation and make use of limited spaces effectively. Feel free to build your desired digital screen or LED video wall.

Curved LED Screen

Fit Different Curves

Seamless splicing of the LED screen allows unlimited screen size, structure, and space. Fit perfectly different architectural curves to maximize the visual experience.

Seamless alignment of two cabinets can be achieved by using positioning pins and Coaxial screws.

Eagle

Ultra-high Refresh Rate

The refresh rate can reach up to 3,840Hz. Support fast decoding and response. Eliminate visible lines and noise when capturing with a digital camera. Deliver clear and smooth visual experience.

Vibrant LED Display

Vivid Colours

16-bit processing technology helps to deliver excellent grayscale performance with vivid colours regardless of the screen brightness.

Wide viewing angle of Indoor LED Screen HD Series

Wide Viewing Angle

160° wide viewing. Deliver an excellent viewing experience without the loss of true colour definition.

LED screen with High precision and even flatness

Even Flatness

Manufactured by a high-precision CNC machine, the aluminium case is light-weight, strong and anticorrosion proof. The flat pins in the aluminium case control have a tolerance within 0.05mm. The flatness of the LED screen allows viewers to enjoy the best viewing experience.

Front Maintenance Design

Front Maintenance Design

Front maintenance is a key engineering requirement for fine pitch LED displays. Thickness can be greatly reduced. Rear maintenance access can be eliminated to prevent dust accumulation and damage to the electronic components or the PCB boards. The modules can be replaced quickly with the vacuum sucker tool to guarantee the maintenance efficiency.

Hidden Interface of LED Screen

Fast & Hidden Interface

Power and signal cables are hidden inside of the LED cabinet to avoid accidental damage of the cables and to keep the entire LED screen neat. The usage of the aviation connectors integrates both data and power into one cable quickly.

The LED screen also adopts a dual backup design. The data backup will be activated automatically whenever there is an interruption of data transmitting.

Noiseless and Energy Saving LED Screen

Noiseless & Energy Saving

The aluminium back plate helps to ensure an effective heat dissipation. Zero noise ensures a more friendly operation since no fans are required in the cabinet. Besides, it also reduces the power consumption of the display effectively. Operation cost can be reduced.

Ready to engage your audience?

Ready to engage your audience?

LED Display: The Ultimate Guide

Everything you need to know about LED Display. You will love this guide if you are looking to implement LED display in your business.

Examples of Full HD Multi-screen Configurations by Viewing Distance

Specifications

ModelP0.93P1.25P1.56P1.87
Pixel Pitch0.93mm1.25mm1.56mm1.87mm
Cabinet Resolution640 x 360px480 x 270px384 x 216px320 x 180px
Brightness (6,000K color temperature)800cd ~ 1,500cd/m2800cd ~ 1,500cd/m2800cd ~ 1,200cd/m2600cd ~ 1,000cd/m2
Pixel Density1,137,778 dots/m2640,000 dots/m2409,600 dots/m2284,444 dots/m2
Pixel Constitution3-IN-1 (1R1G1B)
Cabinet Weight4.3 kg
Cabinet Dimensions600mm x 337.5mm x 32mm / 300mm x 337.5mm x 32mm
Grayscale16 bit
Contrast Ratio3500:1
Peak Consumption≤ 600W/m2
Average Consumption100W/m2 ~ 300W/m2
Screen Color Temperature2,000 ~ 9,500K Adjustable
Module Flatness0.1mm
Viewing Angle160°/140°
Refresh Rate≥ 3,000Hz
Working VoltageAC: 95V ~ 240V
Power Supply ModeDC/AC Power Supply (Options)
Ingress ProtectionIP41
LED life-time100,000h
Viewing Distance 0.1mm
Screen Temperature Raise (under normal use) 20°C
Pixel CalibrationBrightness & Chromatic Pixel Calibrations
Control MethodSynchronous / Asynchronous Control
Driving MethodConstant Current Drive
Cabinet MaterialDie-casting Aluminium Case
Heat Dissipation MethodElectronics passive cooling, entire unit air-flow cooling
MTBF≥ 10,000 Hours
Power BackupDual backup power supply (Optional)
Signal BackupDual backup signal (Optional)
Transmission DistanceCAT5, Optic fibre cables when exceed 100 meters
Working Temperature / Humidity-10°C ~ +60°C / 10% ~ 90%RH, No condensation
Installation MethodMount-bracket / Wall-mount / Frame mount
MaintenanceFront Service
ModelP0.93P1.25
Pixel Pitch0.93mm1.25mm
Cabinet Resolution640 x 360px480 x 270px
Brightness (6,000K color temperature)800cd ~ 1,500cd/m2800cd ~ 1,500cd/m2
Pixel Density1,137,778 dots/m2640,000 dots/m2
ModelP1.56P1.87
Pixel Pitch1.56mm1.87mm
Cabinet Resolution384 x 216px320 x 180px
Brightness (6,000K color temperature)800cd ~ 1,200cd/m2600cd ~ 1,000cd/m2
Pixel Density409,600 dots/m2284,444 dots/m2
Pixel Constitution3-IN-1 (1R1G1B)
Cabinet Weight4.3 kg
Cabinet Dimensions600mm x 337.5mm x 32mm / 300mm x 337.5mm x 32mm
Grayscale16 bit
Contrast Ratio3500:1
Peak Consumption≤ 600W/m2
Average Consumption100W/m2 ~ 300W/m2
Screen Color Temperature2,000 ~ 9,500K Adjustable
Module Flatness0.1mm
Viewing Angle160°/140°
Refresh Rate≥ 3,000Hz
Working VoltageAC: 95V ~ 240V
Power Supply ModeDC/AC Power Supply (Options)
Ingress ProtectionIP41
LED life-time100,000h
Viewing Distance 0.1mm
Screen Temperature Raise (under normal use) 20°C
Pixel CalibrationBrightness & Chromatic Pixel Calibrations
Control MethodSynchronous / Asynchronous Control
Driving MethodConstant Current Drive
Cabinet MaterialDie-casting Aluminium Case
Heat Dissipation MethodElectronics passive cooling, entire unit air-flow cooling
MTBF≥ 10,000 Hours
Power BackupDual backup power supply (Optional)
Signal BackupDual backup signal (Optional)
Transmission DistanceCAT5, Optic fibre cables when exceed 100 meters
Working Temperature / Humidity-10°C ~ +60°C / 10% ~ 90%RH, No condensation
Installation MethodMount-bracket / Wall-mount / Frame mount
MaintenanceFront Service
