Magnimage LED-760H

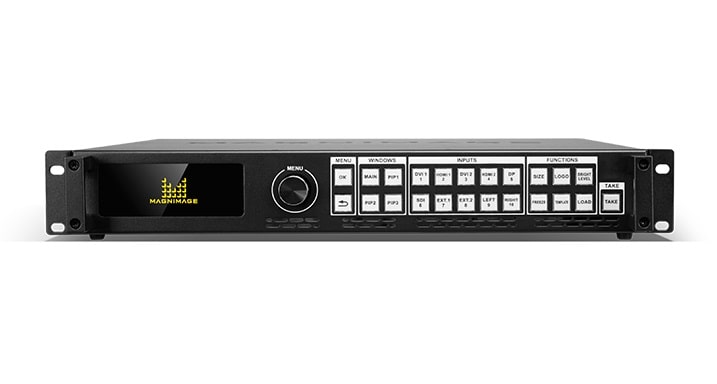

LED-760H Video Processor
- Better visual performance for LED display
- Support 4-screen splicing
- Support network, USB or RS232 linking for different control demands
Magnimage LED-760H Video Processor
The LED-760H is a powerful video processor that supports resolution up to 4K x 2K at 60Hz. It is an ideal device for various applications, such as theater, studio, showroom and multi-purpose hall.
What is a Video Processor?
A video processor is used to deliver a multi-screen display. The device can support screen splicing and device cascading to achieve an ultra-wide or ultra-large screen display.
Features
- 4 screens splicing in 1 processor.
- 4 windows output.
- Support multiple cascades.
- Built-in input matrix for seamless switching between 8 inputs.
- Preset saving and loading.
- Internal graphic card for testing.
- EDID management.
- Multiple input ports – DVI x 2, HDMI x 2, DP x 1, extended 2K signal x 2, input signal source (VGA, DVI or SDI) or 4K input signal x 1 (DP 1.1 or HDMI 1.4)
- Customized output resolution.
- Rotary output.
- Low latency (16ms at 60Hz).
Screen Splicing
Support 4-screen splicing with one video processor. Vertical splicing, horizontal splicing and same or different size splicing are supported.
Rotary Output
Support rotary output where screens can be spliced even when rotated. Design your unique screen solution.
Specifications
Input Port
| 2 x DVI | VESA standard. 165MHz bandwidth. |
| 1 x DP | Display port 1.1, 3840 x 1080 @ 60Hz, 3840 x 2160 @ 30Hz. Support customized output resolution. |
| 2 x HDMI | HDMI 1.3. |
Extended Input Port
| 1 x DVI, 1 X DVI LOOP | VESA standard. 165MHz bandwidth. |
| 1 x VGA, 1 X VGA LOOP | VESA Standard. |
| 1 x SDI, 1 X SDI LOOP | 480i, 576i, 720p, 1080i, 1080p |
| 1 x DP, 1 x DVI | 3840 x 1080 @ 60Hz, 3840 x 2160 @ 30Hz. Customized output resolution. |
| 1 x HDMI, 1 x DVI | 3840 x 1080 @ 60Hz, 3840 x 2160 @ 30Hz. Customized output resolution. |
Output Port
| 8 x DVI | Maximum customized output resolution is 3840 x 2160 px. |
| 1 x DP LOOP | Loop out any input signal. |
Tech Specs
| Power | 100V – 240V AC, 50/60Hz |
| Power Consumption | 55W |
| Dimension | 482.6mm x 452.0mm x 66.75mm |
| Net Weight | 6.0 kg |
