Magnimage LED-W2000
LED-W2000 Video Processor
- Support various input ports
- High load capacity
- Support EDID management
Magnimage LED-W2000 Video Processor
The LED-W2000 is a 4K x 2K video processor which integrates functions such as switch, mosaic and multi-window display. It is widely used in stage performances, TV stations, conferences and exhibitions.
Features
- 4K x 2K mosaic output – 8 channels DVI output (4 hosts x 4 standby).
- 4 layers.
- Layer zoom and rotation.
- Multi-machine cascade switch.
- Support touch screen control.
- Time task management.
- 4 x DVI, 3 x HDMI, 4 x DP, 1 x SDI, 2 x extended input 4K x 2K @ 60Hz
- EDID management.
- Support HDCP.
- Built-in test pattern.
- Brightness level adjustment.
- Customized output resolution.
Multi-machine Cascade Switch
Synchronous switch operation of multiple LED-W2000 in the same Local Area Network (LAN).
Backup Function
Input backup function is supported. Switch between host and standby signal automatically or manually.
Specifications

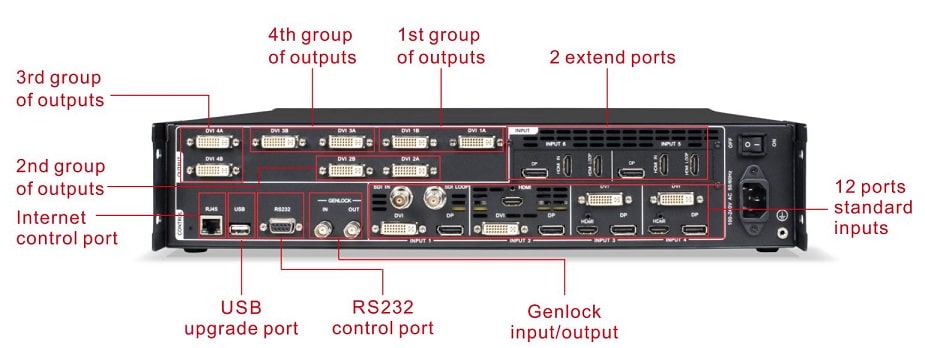

Input Port
| 4 x DVI | EDID management and 3840 x 1080 @ 60Hz. |
| 4 x DP | EDID management. 3840 x 1080 @ 60Hz. 3840 x 2160 @ 30Hz. |
| 3 x HDMI | EDID management and 3840 x 1080 @ 60Hz. |
| 1 x SDI | 480i, 576i, 720p, 1080i, 1080p |
Extend Input (A single 4K module)
| 1 x DP 1.2 | 4096 x 2160 @ 60Hz. 7680 x 1080 @ 60Hz. EDID management. |
| 1 x HDMI 2.0 | 3840 x 2160 @ 60Hz. EDID management. |
Each group extendable 1 x DP, 1 x HDMI, 1 x HDMI LOOP, maximum 2 groups.
Output Port
| 8 x DVI | DVI output port. |
| GENLOCK | 1 x GENLOCK IN. 1 x GENLOCK OUT. |
Tech Specs
| Power | 100V – 240V AC, 50/60Hz, 0.6A |
| Power Consumption | 90W |
| Dimension | 482.6mm x 446.3mm x 92.5mm |
| Operating Temperature | 0°C – 45°C |
| Net Weight | 6.7 kg |
