NovaStar MCTRL4K

4K LED Display Controller

  • High dynamic range display
  • Support 4K resolution
  • Suitable for ultra-long or ultra-large LED displays

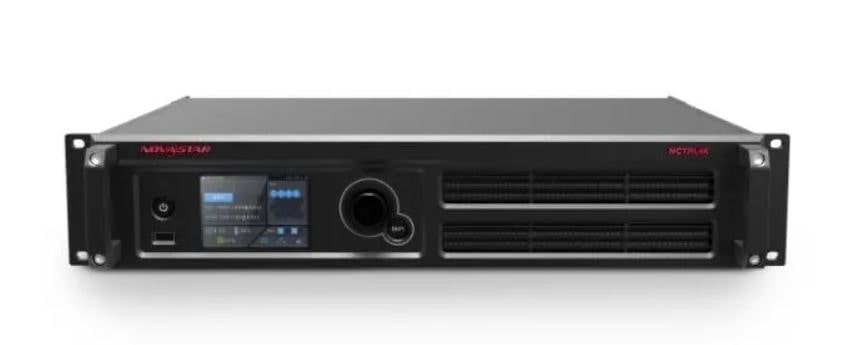

NovaStar MCTRL4K LED Display Controller

The MCTRL4K is a powerful LED display controller that can support ultra high-definition resolution. It provides a loading capacity of up to 4096 x 2160 at 60Hz.

What is an LED Display Controller?

An LED display controller ensures a successful video display on the LED screens while maintaining the excellent image quality. It is an important component in any LED display system. The LED display controller is widely used for various LED display applications such as retail advertising, sales events, concerts and live events.

MCTRL4K LED Display Controller by LED Display Supplier Malaysia

Features

  • 1 x DP 1.2 input and 1 x HDMI 2.0 input
  • 2 x D-DVI input

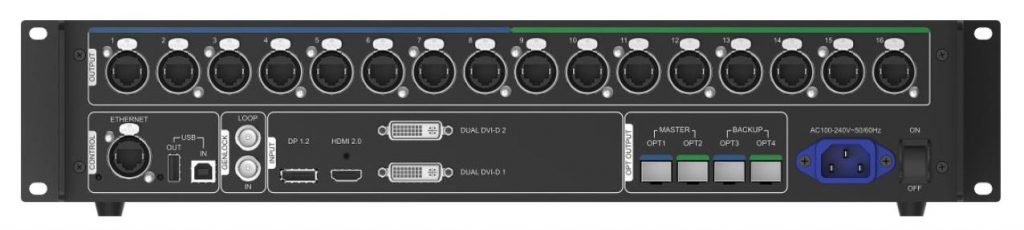

  • 16 x Neutrik Gigabit Ethernet port
  • 4 x 10G optical output port
  • Support 8-bit, 10-bit and 12-bit video bit depths.
  • Support both mosaic and multi-card working modes for dual-link DVI inputs.
  • Support HDR function.
  • Support individual Gamma adjustment for RGB.
  • 3D content display is supported when working with the 3D emitter EMT200 and 3D glasses.
  • Low latency.
  • Support ultra-high resolution.
  • Support screen configuration via Web Interface.
  • Support a wide range of video formats.

High Dynamic Range HDR

The advanced technologies HLG and HDR10-Optima help to provide a high dynamic range display. HDR enables us to view fine details in both dark and light areas of the image clearly.

4K Ultra High-Definition

Supported by the large loading capacity of up to 4096 x 2160 at 60Hz, LED screen application with any custom resolution is possible. Explore endless possibilities brought by the 4K UHD LED Display.

Fine Pixel Pitch LED Application

Wide Color Gamut

A wide color gamut describes a wide range of colors. When more colors can be produced by an LED display, viewers are able to enjoy a pure viewing experience with native colors. Images are now coming alive.

Without wide color gamut
Support wide color gamut.

Specifications

Input Connector

DP 1.2

DP 1.2 input.

  • Maximum resolution of 4096 x 2160 @ 60Hz.
  • Minimum resolution of 640 x 480 @ 24Hz.
  • Custom resolutions supported. Resolution with max width of 7680 x 1080 @60Hz, and max height of 1080 x 7680 @ 60Hz.
  • Support HDCP 1.3.
  • Supported standard resolutions:
    1280×1024 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1366×768 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1440×900 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1600×1200 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×1080 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×1200 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×2160 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    2560×1600 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    3840×1080 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    3840×2160 @ (24/25/30/48/50/60) Hz
HDMI 2.0

HDMI 2.0 input.

  • Maximum resolution of 4096 x 2160 @ 60Hz.
  • Minimum resolution of 800 x 600 @ 30Hz.
  • Pixel capacity : 8,800,000 pixels
  • Custom resolutions supported. Resolution with max width of 7680 x 1080 @60Hz, and max height of 1080 x 7680 @ 60Hz.
  • Support HDCP 1.4 and HDCP 2.2.
  • Supported standard resolutions:
    1280×1024 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1440×900 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1600×1200 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×1080 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×1200 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×2160 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    2048×1536 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    2560×1600 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    3840×1080 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    3840×2160 @ (24/25/30/48/50/60) Hz
DUAL DVI-D1, DUAL DVI-D2
  • 2 x DVI inputs.
  • Maximum resolution of 3840 x 1080 @ 60Hz.
  • Minimum resolution of 800 x 600 @ 30Hz.
  • Pixel capacity : 8,300,000 pixels
  • Custom resolutions supported. Resolution with max width of 3840 x 2160 @60Hz, and max height of 2160 x 3840 @ 60Hz.
  • Supported standard resolutions:
    1280×1024 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1366×768 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1440×900 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1600×1200 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×1080 @ (24/25/30/48/50/60/72/75/85/100/120) Hz
    1920×1200 @ (24/25/30/48/50/60/72/75/85/100) Hz
    1920×2160 @ (24/25/30/48/50/60) Hz
    2560×1600 @ (24/25/30/48/50/60) Hz
    3840×1080 @ (24/25/30/48/50/60) Hz
    3840×2160 @ (24/25/30) Hz

Output Connector

1 – 16
  • 16 Neutrik (NE8FBH) Gigabit Ethernet ports.
  • Max loading capacity of a single Ethernet port:
    – for 8-bit input source : 650,000 pixels
    – for 10-bit/12-bit input source : 320,000 pixels
  • Do not support audio output.
  • Support redundancy between Ethernet ports.
OPT1 – OPT4
  • 10G optical ports
    – Single-mode twin-core fiber : support LC optical connectors; wavelength 1310nm; transmission distance 10km; OS1/OS2 recommended
    – Dual-mode twin-core fiber : support LC optical connectors; wavelength 850nm; transmission distance 300m; OM3/OM4 recommended
  • The maximum loading capacity of a single optical port equals to that of all the 8 Ethernet ports.
  • 4 OPT inputs/outputs

Control

GENLOCK INGENLOCK input connector.
– Genlock type : Blackburst
– Input Genlock sync signal to ensure synchronization and same refresh rate between the output signals of cascaded MCTRL4K units and the external Genlock signal.
GENLOCK LOOPGenlock loop output connector.
EthernetFor PC connection.
USB INInput port for device cascading. Or to be connected to PC.
USB OUTOutput port for device cascading.

Video Source Features

HDMI 2.0
  • 8bit, Max Input Resolution 4096 x 2160 @ 60Hz.
    Support sampling formats RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0.
  • 10bit/12bit, Max Input Resolution 3840 x 1080 @ 60Hz.
    Support sampling formats RGB 4:4:4 and YCbCr 4:4:4.
  • 10bit/12bit, Max Input Resolution 4096 x 2160 @ 60Hz.
    Support sampling formats YCbCr 4:2:2 and YCbCr 4:2:0.
DP 1.2
  • 8bit, Max Input Resolution 4096 x 2160 @ 60Hz.
    Support sampling formats RGB 4:4:4, YCbCr 4:4:4 and YCbCr 4:2:2.
  • 10bit/12bit, Max Input Resolution 3840 x 1080 @ 60Hz.
    Support sampling formats RGB 4:4:4 and YCbCr 4:4:4.
  • 10bit/12bit, YCbCr 4:2:2, Max Input Resolution 4096 x 2160 @ 60Hz.
Dual-link DVI
  • 8bit, Max Input Resolution 38400 x 1080 @ 60Hz.
    Support sampling formats RGB 4:4:4, YCbCr 4:4:4 and YCbCr 4:2:2.

Tech Specs

PowerAC 100V – 240V, 50/60Hz
Rated Power Consumption30W
Working Temperature-20°C to 60°C
Working Humidity10% RH to 90% RH, non-condensing
Dimension482.6mm x 372.0mm x 96.0mm
Net Weight4.6 kg
Accessories1 x power cord, 1 x USB cable, 1 x DP cable, 1 x HDMI cable, 1 x Ethernet cable
CertificationsRoHS, EMC, FCC, IC, LVD, UL&CUL, EAC, CB, KC, RCM
