NovaStar MCTRL660

Independent Controller

  • Smart screen configuration without using a computer
  • Allow manual screen brightness adjustment
  • Support both rental and fixed field applications

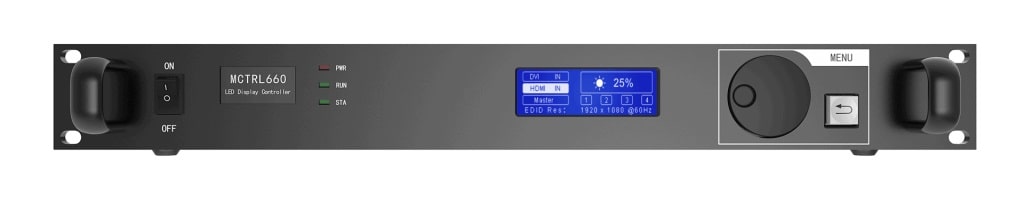

NovaStar MCTRL660 Independent Controller

The MCTRL660 is a powerful independent controller designed by NovaStar. No flickering and no blackout. Support multiple video signal formats. Used widely in various LED display applications such as concerts, live events and retail advertising.

What is an Independent Controller?

An LED independent controller provides high image quality with no flickering or scanning lines. It helps to encode and process incoming video signals.

MCTRL660 Independent Controller - LED Sending Card Supplier Malaysia

Features

  • 1 x DVI input
  • 1 x HDMI input
  • 4 x Gigabit Ethernet outputs
  • Multiple controllers can be cascaded.
  • Support resolution up to 1920 x 1200 @ 60Hz.
  • 18-bit grayscale processing.
  • Support NovaStar calibration technology.
  • Allow manual screen brightness adjustment.
  • Quick and convenient screen configuration without using a computer.
  • Support smart screen configuration – shorten the preparation time.
  • Fine image quality and a good sense of depth.

Specifications

Indicator

POWERPWR : Power Indicator.
RUNRUN : Device operating indicator.
  • Flashing slowly : Video input unavailable.
  • Flashing normally : Video input available.
  • Flashing rapidly : The screen is displaying startup image.
  • Breathing: Ethernet port redundancy has taken effect.
STATUSSTA : Device operating indicator.
  • Off : The device is not operating, or operating abnormally.
  • Always On : The device is operating normally.

Input Connector

DVI IN

Single-link DVI input, with a maximum resolution of 1920 x 1200 at 60Hz.

  • Custom resolutions supported. Resolution with max width is 3840 x 600 @ 60Hz. Resolution with max height is 800 x 3840 @ 60Hz.
HDMI IN

HDMI 1.3 input, with a maximum resolution of 1920 x 1200 at 60Hz.

  • HDCP 1.4 compliant.
  • Custom resolutions supported. Resolution with max width is 3840 x 600 @ 60Hz. Resolution with max height is 800 x 2560 @ 60Hz.
AUDIOAudio input connector.

Output Connector

RJ45 x 4

4 x RJ45 Gigabit Ethernet outputs.

  • Maximum loading capacity of each Ethernet port is 650,000 pixels.
  • Support redundancy between Ethernet ports.

Control

TO PCType-B USB port for PC connection.
UART INInput port for device cascading.
UART OUTOutput port for device cascading. Up to 20 controllers can be cascaded.

Video Source Features

HDMI 1.3
  • 8bit, RGB4:4:4, Max Input Resolution 1920 x 1200 @ 60Hz
  • 10bit/12bit (customized), RGB4:4:4, Max Input Resolution 1440 x 900 @ 60Hz
S-DVI
  • 8bit, RGB4:4:4, Max Input Resolution 1920 x 1200 @ 60Hz
  • 10bit/12bit (customized), RGB4:4:4, Max Input Resolution 1440 x 900 @ 60Hz

Tech Specs

PowerAC 100V – 240V ~ 50/60Hz
Rated Power Consumption10W
Working Temperature-20°C to 60°C
Working Humidity0% RH to 90% RH, non-condensing
Dimension483.0mm x 258.1mm x 55.3mm
Net Weight3.6 kg
Accessories1 x power cord, 1 x USB cable, 1 x DVI cable
CertificationsCB, RoHS, EAC, FCC, UL/CUL, LVD, EMC, KC, CCC, PSE
