NovaStar MCTRL660 PRO

Independent Controller

  • Loading capacity up to 1920 x 1200 @ 60Hz
  • Support 4K resolution
  • Suitable for ultra-large LED display applications

NovaStar MCTRL660 PRO Independent Controller

The MCTRL660 PRO is a professional LED independent controller developed by NovaStar. It can support custom resolutions with the width up to 3840px and the height up to 2560px. Perfect for large screen applications.

What is an Independent Controller?

An LED independent controller decodes and processes incoming video signals. Once decoded, the LED screen can display the content successfully while maintaining the fine image quality.

MCTRL660 PRO Independent Controller - LED Sending Card Supplier Malaysia

Features

  • Input connectors : 1 x 3G-SDI input, 1 x HDMI 1.4a input, 1 x single-link DVI input
  • Output connectors : 6 x Gigabit Ethernet port, 2 x 10G optical port
  • Loop output connectors : 1 x 3G-SDI LOOP, 1 x HDMI 1.4a LOOP, 1 x DVI LOOP
  • Support 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4.
  • Support individual Gamma adjustment for RGB.
  • Low latency (less than 1 ms).
  • Dual working modes : working as sending card and fiber converter.
  • One-click backup and recovery.
  • Auto LED screen configuration.
  • Web control.
  • Pixel level brightness and chroma calibration.
  • Support image mirroring.

Realistic & Detailed Image

Support 10-bit/12-bit color depth. A 10-bit color system can produce up to 1 billion colors. It is 64 times more than what an 8-bit color system can produce. Enjoy a realistic viewing experience with accurate color representation.

Vibrant LED Display

Image Mirroring & Rotation

Create a stunning effect with only a button push. Support image mirroring and rotation of a single or dual-port.

LED Screen Image Mirroring and Rotation

Synchronized Display

In order to ensure an ultra-smooth synchronized display performance, the latency issue is minimized greatly with a video source output of less than 1ms. Enjoy a superb live experience with no delay.

LED Screen Low Latency

Specifications

Indicator

GreenThe device is running normally.
RedThe device is in standby mode.

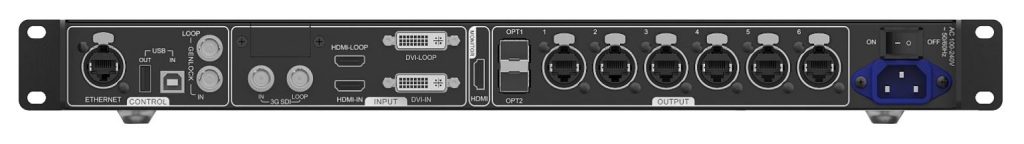

Input Connector

DVI IN

Single-link DVI connector.

  • Custom resolutions supported. Resolution with max width of 3840px and max height of 2560px.
  • Supported standard resolutions:
    1024×768 @ (24/30/48/50/60/72/75/85/100/120) Hz
    1280×1024 @ (24/30/48/50/60/72/75/85) Hz
    1366×768 @ (24/30/48/50/60/72/75/85/100) Hz
    1440×900 @ (24/30/48/50/60/72/75/85) Hz
    1600×1200 @ (24/30/48/50/60) Hz
    1920×1080 @ (24/30/48/50/60) Hz
    1920×1200 @ (24/30/48/50/60) Hz
    2560×960 @ (24/30/48/50) Hz
    2560×1600 @ (24/30) Hz
HDMI IN

HDMI 1.4a and HDCP 1.4 compliant.

  • Custom resolutions supported. Resolution with max width of 3840px and max height of 2560px.
  • Supported standard resolutions:
    1024×768 @ (24/30/48/50/60/72/75/85/100/120) Hz
    1280×1024 @ (24/30/48/50/60/72/75/85) Hz
    1366×768 @ (24/30/48/50/60/72/75/85/100) Hz
    1440×900 @ (24/30/48/50/60/72/75/85) Hz
    1600×1200 @ (24/30/48/50/60) Hz
    1920×1080 @ (24/30/48/50/60) Hz
    1920×1200 @ (24/30/48/50/60) Hz
    2560×960 @ (24/30/48/50) Hz
    2560×1600 @ (24/30) Hz
3G-SDI IN
  • SMPTE ST425-1 Level A & B, SMPTE ST 274, ST 296, ST 295 compliant.
  • Support input resolution up to 1920 x 1080 @ 60Hz.

Output Connector

RJ45 x 6
  • 6 x Gigabit Ethernet ports.
  • Max loading capacity of a single Ethernet port:
    – for 8-bit input source : 650,000 pixels
    – for 10-bit/12-bit input source : 320,000 pixels
  • Support redundancy between Ethernet ports.
OPT1, OPT2
  • 10G optical ports
    – Single-mode twin-core fiber : support LC optical connectors; wavelength 1310nm; transmission distance 10km; OS1/OS2 recommended
    – Dual-mode twin-core fiber : support LC optical connectors; wavelength 850nm; transmission distance 300m; OM3/OM4 recommended
  • The maximum loading capacity of a single optical port equals to that of all the 6 Ethernet ports.
  • 2 OPT inputs/outputs
    – The OPT1 works as the primary input or output port, and the 6 Gigabit Ethernet ports work as the corresponding output or input ports
    – The OPT2 works as the backup input or output port of OPT1
  • In the sending card mode, both OPT ports and 6 Gigabit Ethernet ports can work as output ports to output the same image.
  • In the fiber converter mode, when the OPT ports work as the input ports, the 6 Gigabit Ethernet ports work as output ports. When the 6 Gigabit Ethernet ports work as input ports, the OPT ports work as output ports.
DVI LOOP
  • DVI loop output.
HDMI LOOP
  • HDMI loop output.
  • Support HDCP 1.3 loop output encryption.
3G-SDI LOOP
  • SDI loop output.

Control

GENLOCK INGENLOCK input connector.
– Genlock type : Blackburst
– Input Genlock sync signal to ensure synchronization and same refresh rate between the output signals of cascaded MCTRL660 PRO units and the external Genlock input signal.
GENLOCK LOOPGenlock loop output connector.
EthernetEthernet port to connect to PC. Support TCP/IP.
USB INInput port for device cascading. Or to be connected to PC.
USB OUTOutput port for device cascading.

Video Source Features

HDMI 1.4a
  • Supported sampling formats : RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • 8bit, Max Input Resolution 1920 x 1200 @ 60Hz
  • 10bit/12bit, Max Input Resolution 1920 x 1080 @ 60Hz
Single-link DVI
  • Supported sampling formats : RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • 8bit, Max Input Resolution 1920 x 1200 @ 60Hz
  • 10bit/12bit, Max Input Resolution 1920 x 1080 @ 60Hz
3G-SDI
  • Maximum supported input resolution : 1920 x 1080 @ 60Hz
  • 3G-SDI input sources do not support input resolution and color depth settings.
  • The Gamma value can be adjusted for 8-bit input sources, but cannot be adjusted for 10-bit and 12-bit input sources.

Tech Specs

PowerAC 100V – 240V
Rated Power Consumption20W
Working Temperature-20°C to 60°C
Working Humidity10% RH to 90% RH, non-condensing
Dimension482.6mm x 356.0mm x 50.1mm
Net Weight4.6 kg
Accessories1 x power cord, 1 x USB cable, 1 x DVI cable, 1 x HDMI cable, 1 x Ethernet cable
CertificationsRoHS, EMC, FCC, IC, LVD
