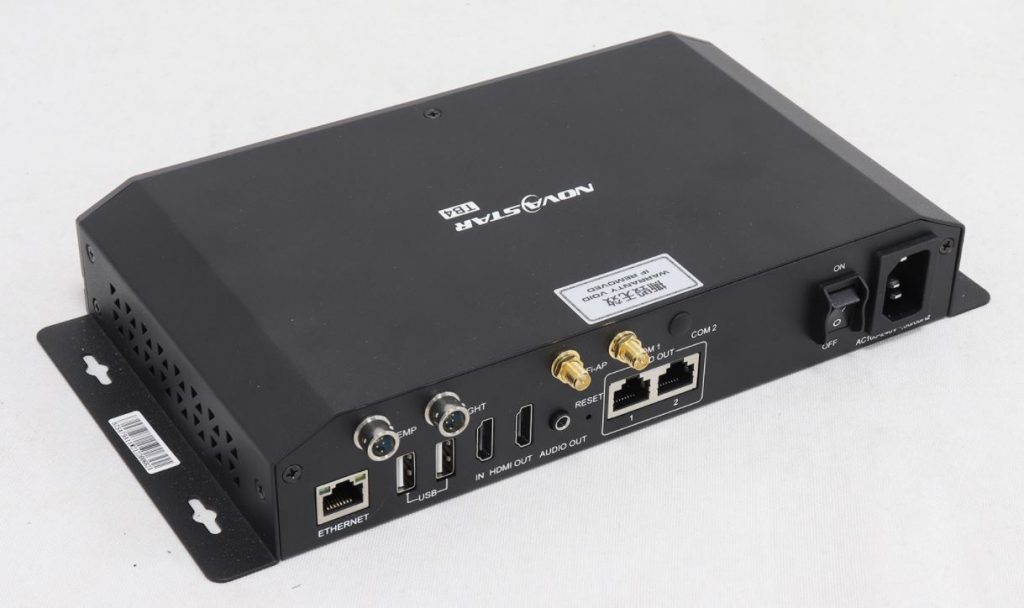

NovaStar TB4 LED Media Player
The TB4 is NovaStar’s second-generation multimedia player which is dedicated to small and medium-sized full color LED display applications.
What is an LED Multimedia Player?
An LED multimedia player helps to process incoming video signals and allows the content to be displayed on the LED screens. It is widely used in various commercial display applications.
Features
- 1.5 GHz eight-core processor.
- Support H.265 4K and 1080p video hardware decoding.
- 8GB internal storage.
- 2GB operating memory.
- Support switching on/off function of the synchronous display.
- Gigabit wired network.
- Stereo audio output.
- Support synchronous and asynchronous dual-mode.
- Support Wi-Fi AP connection.
- Loading capacity up to 1,300,000 pixels.
- Support HDMI Loop, HDMI input and full-screen display.
- USB drive importing display.
- Onboard light sensor connector.
- Omnidirectional control plan.
Specifications
Front Panel
| PWR | Power status indicator. |
| SYS | System status indicator. |
| RUN | FPGA status indicator. |
| SWITCH | Switch between synchronous and asynchronous modes. |
| CLOUD | Internet connection status indicator. |

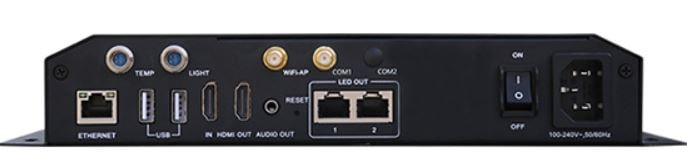

Real Panel
| TEMP | Temperature sensor port. |
| LIGHT | Light sensor port. |
| Wi-Fi AP | Wi-Fi antenna port. |
| COM1, COM2 | Reserved. |
| ETHERNET | Gigabit Ethernet port. |
| USB | USB 2.0 port. |
| HDMI | HDMI 1.4 input and output. |
| AUDIO OUT | Audio output. |
| RESET | Factory reset button. |
| LED OUT | Output Ethernet port. |
| ON / OFF | Power switch. |
Tech Specs
| Power | 100-240V AC, 50/60Hz |
| Max Power Consumption | 18W |
| Working Temperature | -40°C to 80°C |
| Working Humidity | 0% RH to 80% RH |
| Dimension | 278.5mm x 139.5mm x 45.0mm |
| Storage Capacity | 2GB Operating Memory, 8GB Internal Storage |
| Support Decode Codec | Image : JFIF 1.02, BMP, GIF, PNG, WEBP Audio : MPEG, WMA, PCM, OGG, FLAC, ACC, AMR, MIDI Video : MPEG1/2/4, H.264, H.264 MVC, H.265, VP8, H.263, VC-1, MJPEG |
| Support Encode Codec | Image : JPEG Baseline Audio : AMR, AAC Video : H.264, VP8 |
