Novastar TB6 LED Media Player

NovaStar TB6

TB6 LED Media Player

  • Powerful processing capacity with 8 core 1.5GHz processor
  • Support playback of H.265 4K videos
  • 28GB or 32GB Internal Storage

NovaStar TB6 Multimedia Player

The TB6 is a multimedia player developed by NovaStar. The player can support playbacks of audio, image and video contents. Some of the supported file formats are mp3, mp4, MOV, PNG and JPEG.

What is an LED Media Player?

An LED multimedia player is an important component within an LED display system. It integrates playback and sending capabilities, allowing screen control and solution publishing via various devices such as mobile phone, PC and tablet.

Features

  • 4 x Gigabit Ethernet output (2 main & 2 back-ups)
  • 1 x Stereo audio output
  • 1 x HDMI 1.3 input
  • 1 x HDMI 1.3 output (allow HDMI loop)
  • 2 x USB 2.0
  • 8-core 1.5GHz processor
  • 2GB RAM
  • 28GB or 32GB internal storage
  • Support automatic screen brightness adjustment.
  • Support synchronous and asynchronous playback modes.
  • Hardware decoding of 1080p and 4K videos.
  • Support remote cluster solution publishing and screen control.
  • Dual Wi-Fi modes.
  • Support both network and Ethernet port redundancy.
  • Loading capacity up to 1,300,000 pixels with a maximum width of 4096 pixels and a maximum height of 1920 pixels.

Flexible Playback

TB6 LED Media Player supports unrestricted and flexible playback, including Cloud playback, wireless playback and U-disk playback. Display your media content in any preferred method.

Application of Indoor LED Display

Remote Management

TB6 Multimedia Player helps to reduce operation cost. You do not need to attend physically to make adjustments. Monitor and adjust your settings remotely by using your preferred device.

Specifications

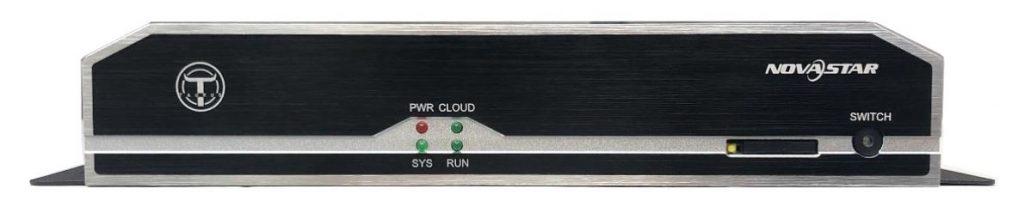

Indicator

SWITCH

Green color.

  • Staying on : Synchronous mode.
  • Off : Asynchronous mode.
PWR Indicator

Red color.

  • Staying on : The power supply is working properly.
SYS Indicator

Green color.

  • Flashing once every 2 secs : The device is operating properly.
  • Flashing once every second : The device is installing the update package.
  • Flashing once every 0.5 sec : The device is downloading data from the Internet or copying the upgrade package.
  • Staying on/ off : The device is abnormal.
CLOUD Indicator

Green color.

  • Staying on : The device is connected to the Internet.
  • Flashing once every 2 secs : The device is connected to VNNOX.
RUN Indicator

Green color.

  • Flashing once every second : No video signal.
  • Flashing once every 0.5 sec : The FPGA is functioning normally.
  • Staying on/ off : The FPGA is abnormal.

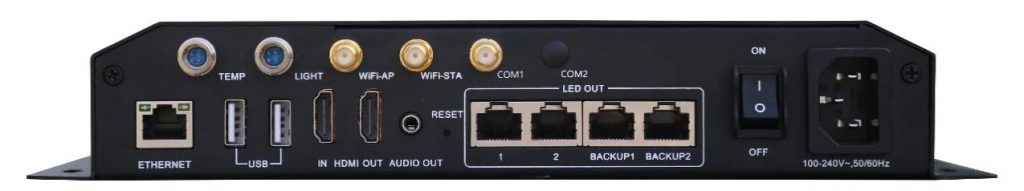

Connector

HDMI IN1 x HDMI 1.3 input.
HDMI OUT1 x HDMI 1.3 output. Allow HDMI loop.
ETHERNETConnect to the network or control PC.
USB2 x USB 2.0. Import solutions from a USB drive for playback.
AUDIO OUTAudio output.
LED OUTGigabit Ethernet output ports with two serving as the main and the other two as the backup.
TEMPTemperature sensor connector.
LIGHTLight sensor connector.
WiFi-APWi-Fi antenna connector.
WiFi-STAWi-Fi antenna connector.
COM1A reserved connector.
COM2A reserved connector.

Tech Specs

PowerAC 100V – 240V
Max Power Consumption18W
Working Temperature-20°C to 60°C
Working Humidity0% RH to 80% RH, non-condensing
Dimension278.5mm x 139.5mm x 45.0mm
Net Weight1.35 kg
Storage Capacity2GB RAM, 28GB or 32GB Internal Storage
System SoftwareAndroid operating system software, Android terminal application software, FPGA program
Supported Image File FormatJPEG, BMP, GIF, PNG, WEBP
Supported Audio File FormatMP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, AAC, M4A, 3GP, MIDI
Supported Video File FormatMPG, DAT, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, WMV, ASF
CertificationsCE, FCC, SDoC, FCC, ID, UL, PSE, CB, IC, CCC, KC, RCM, MIC, SIRIM, EAC, FAC, PSB, IMDA, NTC, CITI, NCC
