NovaStar VX4s
LED Display Controller
- Support input resolution up to 1920 x 1200 @ 60Hz
- Seamless high-speed switch
- Stable and flicker-free

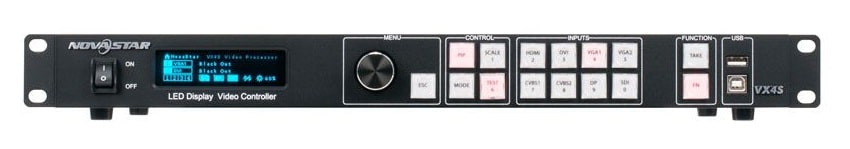

NovaStar VX4s LED Display Controller
The VX4s LED Display Controller is a powerful controller that helps to manage and control the LED display. It is also equipped with powerful front-end processing to provide excellent image quality.
What is an LED Display Controller?
An LED display controller offers sending capability where an incoming video signal is decoded and processed. When the signal is decoded successfully, the video content can be displayed on the LED screen.
Features
- CVBS, VGA, DVI, HDMI, DP and SDI inputs.
- Input resolution up to 1920 x 1200 @ 60Hz.
- High-speed switch and fade in / out effect.
- Nova G4 engine.
- White balance calibration and color gamut mapping.
- HDMI / external audio input.
- 8bit / 10bit HD video source.
- Loading capacity of 2,300,000 pixels.
- Support multiple-controller montage for loading huge screen.
- Quick screen debugging.
Specifications

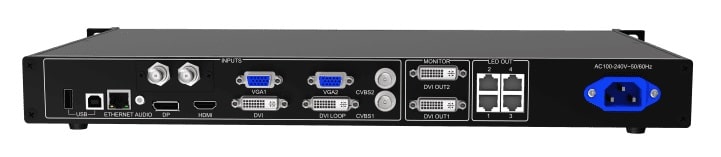

Input Connector
| AUDIO | Audio input. |
| DP | DP input. VESA standard. |
| HDMI | HDMI input. HDMI 1.3 standard. Support HDCP. |
| SDI | SDI input. Support 480i, 576i, 720p, 1080i/p. |
| DVI | DVI input. Support 1080i input. |
| VGA1 ~ VGA2 | 2-channel VGA input. Support 1920 x 1200 @ 60Hz. |
| CVBS1 ~ CVBS2 | 2- channel PAL/NTSC TV composite video input. |
Output Connector
| DVI LOOP | DVI LOOP output. |
| SDI LOOP | SDI LOOP output. |
| Monitor DVI1 OUT | DVI1 monitoring output connector. |
| Monitor DVI2 OUT | DVI2 monitoring output connector. |
| LED OUT 1 – 4 | 4 Gigabit Ethernet outputs. Only Ethernet port 1 supports audio output. |
Control
| ETHERNET | Network control (PC communication or network access). |
| Type-B USB | USB control (CASCADE IN, or PC communication). |
| Type-A USB | CASCADE OUT. |
Tech Specs
| Power | AC 100V – 240V ~ 50/60Hz |
| Power Consumption | 25W |
| Working Temperature | -20°C to 60°C |
| Dimension | 482.6mm x 251.5mm x 45mm |
| Net Weight | 2.55 kg |
