BIG INDOOR
LED Digital Poster
The state-of-the-art indoor LED digital poster features a built-in audio system, robust acrylic cover for dust, water, and damage protection, and a portable, thin, lightweight design. It offers multiple content control methods, including PC, tablet, phone, and USB, ensuring easy updates. Additionally, multiple stands can be joined to create larger, impactful displays, ideal for events, exhibitions, and retail spaces.
BIG INDOOR
LED Digital Poster
The state-of-the-art indoor LED digital poster features a built-in audio system, robust acrylic cover for dust, water, and damage protection, and a portable, thin, lightweight design. It offers multiple content control methods, including PC, tablet, phone, and USB, ensuring easy updates. Additionally, multiple stands can be joined to create larger, impactful displays, ideal for events, exhibitions, and retail spaces.
Optimum Viewing Height
With the size of 640mm x 1920mm, our led poster is designed for optimal viewing height, ensuring maximum visibility and comfort. Featuring a 320 x 160 LED module, it provides excellent resolution and brightness for clear, vibrant displays even in bright environments.
Portable Panel
Each panel weighs less than 48kg, saving on labor costs and setup time. It offers convenience and high-quality display, perfect for mobile use.
Ultra Thin Design
With a sleek 45mm thickness, our digital poster is designed for flexible installation. Its slim profile allows it to seamlessly integrate into various environments, making it a versatile solution for diverse installation needs.
Optimum Viewing Height
With the size of 640mm x 1920mm, our led poster is designed for optimal viewing height, ensuring maximum visibility and comfort. Featuring a 320 x 160 LED module, it provides excellent resolution and brightness for clear, vibrant displays even in bright environments.
Portable Panel
Each panel weighs less than 48kg, saving on labor costs and setup time. It offers convenience and high-quality display, perfect for mobile use.
Ultra Thin Design
With a sleek 45mm thickness, our digital poster is designed for flexible installation. Its slim profile allows it to seamlessly integrate into various environments, making it a versatile solution for diverse installation needs.
Expand and Enhance Display Area
Multiple BIG Indoor LED Digital Posters can be cascaded to create larger displays for various applications. Up to five units can be combined to form a 3200x1920mm (147”) large format display, ideal for digital backgrounds, corporate videos, and images for any event setup. For an even larger screen, additional units can be cascaded, providing an enhanced and immersive viewing experience.
Multiple Control Method
The LED stand offers multiple control methods, including PC, tablet, phone, and USB, with support for HDMI and WLAN/LAN connectivity. It also allows for group management of multiple units across different locations, enhancing content management and improving brand presence and information delivery.
LED Module
Our BIG Indoor LED Digital Poster uses high-quality SMD1515 for P1.8 and P2.0 models, and SMD2121 for the P2.5 model, with each module measuring 320x160mm. The SMD lamps feature black matte surface technology, enhancing brightness and reducing reflectivity for an improved viewing experience.
Product Specifications
| Model No. | BIG-i1.8-DP |
| Module Size (mm) | 320 x 160 |
| Module Resolution (dots) | 172 x 86 |
| Display Size (mm) | 640 x 1920 |
| Display Cabinet Size (WxHxD) | 640 x 1920 x 45 |
| Display Resolution (dots) | 344 x 1032 |
| Driving Method | 1/43 |
| Min Viewing Distance | >1.8m |
| LED Type | Full Black SMD1515 3-in-1 RGB |
| Colour Temperature (K) | 3,000 ~16,000 Adjustable |
| Horizontal Viewing Angle (°) | 160 |
| Vertical Viewing Angle (°) | 160 |
| IP Rating | IP20 |
| Brightness (Nits) | 600 (Adjustable) |
| Contrast Ratio | 3,000:1 |
| Dimming Levels | Up to 256 Levels (Automatic or Manual Control) |
| Refresh Rate (Hz) | 3,840 (High Refresh) |
| Frame Rate (Hz) | 50 & 60 |
| LED Lifetime (Hrs) | 100,000 |
| Greyscale | 16-bit (281 trillion colours) / 65,536 shades per primary colour |
| Control System (Optional) | Novastar TB4 LED Player & MRV412 with Viplex / Huidu HD-B6 LED Player & R712 with HD-Player |
| Speaker | Yes, Built-in 10W |
| Cover Material | 3mm Thick Clear Acrylic Panel |
| Body Panel | Metal Sheet & Portable Solid Base with Castor Wheels |
| Display Weight (kg) | 48KG |
| Display Power Consumption | 750W (Max) / 250W (Typ) |
| Power Supply | 220 ~ 240VAC 50/60 Hz |
| Operation Temperature (°C) | -10 ~ 40 |
| Storage Temperature (°C) | -10 ~ 60 |
| Operatation Humidity (RH) | 10 ~ 80% no condensation |
| Storage Humidity (RH) | 10 ~ 85% no condensation |
| Model No. | BIG-i2.0-DP |
| Module Size (mm) | 320 x 160 |
| Module Resolution (dots) | 160 x 80 |
| Display Size (mm) | 640 x 1920 |
| Display Cabinet Size (WxHxD) | 640 x 1920 x 45 |
| Display Resolution (dots) | 320 x 960 |
| Driving Method | 1/40 |
| Min Viewing Distance | >2.0m |
| LED Type | Full Black SMD1515 3-in-1 RGB |
| Colour Temperature (K) | 3,000 ~16,000 Adjustable |
| Horizontal Viewing Angle (°) | 160 |
| Vertical Viewing Angle (°) | 160 |
| IP Rating | IP20 |
| Brightness (Nits) | 600 (Adjustable) |
| Contrast Ratio | 3,000:1 |
| Dimming Levels | Up to 256 Levels (Automatic or Manual Control) |
| Refresh Rate (Hz) | 3,840 (High Refresh) |
| Frame Rate (Hz) | 50 & 60 |
| LED Lifetime (Hrs) | 100,000 |
| Greyscale | 16-bit (281 trillion colours) / 65,536 shades per primary colour |
| Control System (Optional) | Novastar TB4 LED Player & MRV412 with Viplex / Huidu HD-B6 LED Player & R712 with HD-Player |
| Speaker | Yes, Built-in 10W |
| Cover Material | 3mm Thick Clear Acrylic Panel |
| Body Panel | Metal Sheet & Portable Solid Base with Castor Wheels |
| Display Weight (kg) | 48KG |
| Display Power Consumption | 750W (Max) / 250W (Typ) |
| Power Supply | 220 ~ 240VAC 50/60 Hz |
| Operation Temperature (°C) | -10 ~ 40 |
| Storage Temperature (°C) | -10 ~ 60 |
| Operatation Humidity (RH) | 10 ~ 80% no condensation |
| Storage Humidity (RH) | 10 ~ 85% no condensation |
| Model No. | BIG-i2.5-DP |
| Module Size (mm) | 320 x 160 |
| Module Resolution (dots) | 128 x 64 |
| Display Size (mm) | 640 x 1920 |
| Display Cabinet Size (WxHxD) | 640 x 1920 x 45 |
| Display Resolution (dots) | 256 x 768 |
| Driving Method | 1/32 |
| Min Viewing Distance | >2.5m |
| LED Type | Full Black SMB2121 3-in1 RGB |
| Colour Temperature (K) | 3,000 ~16,000 Adjustable |
| Horizontal Viewing Angle (°) | 160 |
| Vertical Viewing Angle (°) | 160 |
| IP Rating | IP20 |
| Brightness (Nits) | 600 (Adjustable) |
| Contrast Ratio | 3,000:1 |
| Dimming Levels | Up to 256 Levels (Automatic or Manual Control) |
| Refresh Rate (Hz) | 3,840 (High Refresh) |
| Frame Rate (Hz) | 50 & 60 |
| LED Lifetime (Hrs) | 100,000 |
| Greyscale | 16-bit (281 trillion colours) / 65,536 shades per primary colour |
| Control System (Optional) | Novastar TB4 LED Player & MRV412 with Viplex / Huidu HD-B6 LED Player & R712 with HD-Player |
| Speaker | Yes, Built-in 10W |
| Cover Material | 3mm Thick Clear Acrylic Panel |
| Body Panel | Metal Sheet & Portable Solid Base with Castor Wheels |
| Display Weight (kg) | 48KG |
| Display Power Consumption | 750W (Max) / 250W (Typ) |
| Power Supply | 220 ~ 240VAC 50/60 Hz |
| Operation Temperature (°C) | -10 ~ 40 |
| Storage Temperature (°C) | -10 ~ 60 |
| Operatation Humidity (RH) | 10 ~ 80% no condensation |
| Storage Humidity (RH) | 10 ~ 85% no condensation |
Applications of BIG Indoor LED Digital Poster

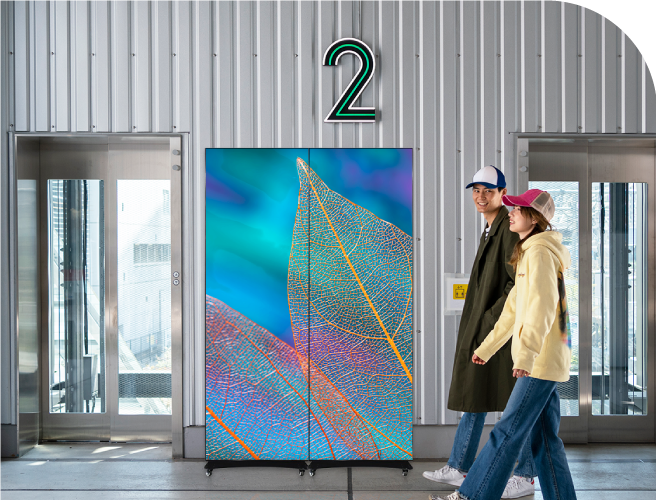

Shopping Malls

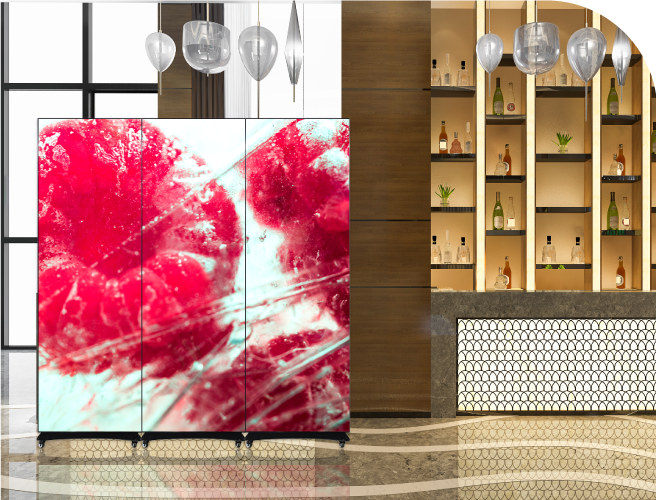

Lobby

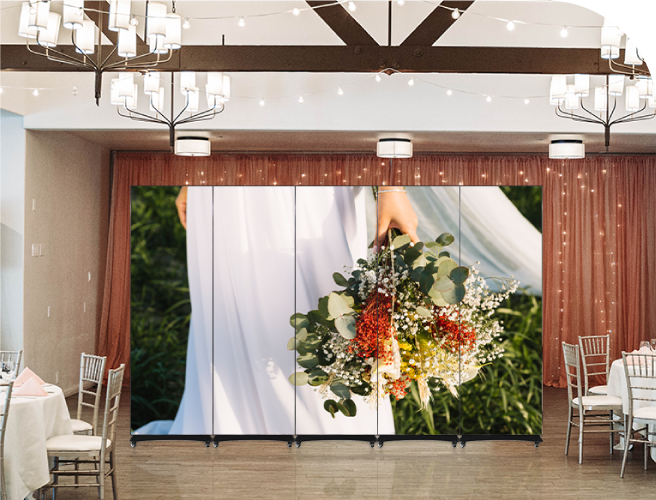

Event Hall

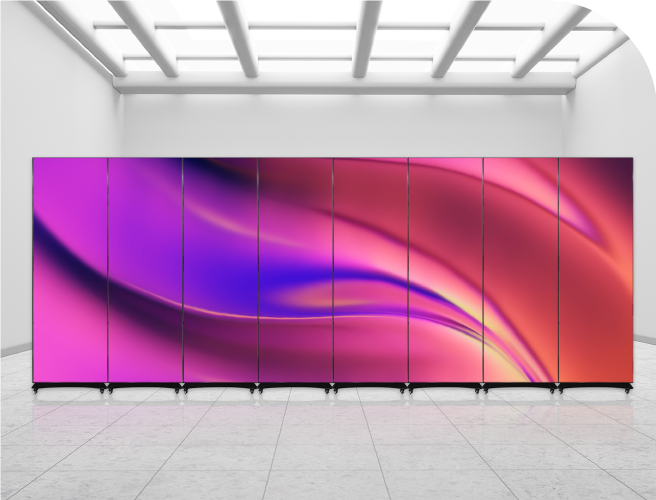

Exhibition Hall
Applications of
BIG Indoor LED Digital Poster
Shopping Malls
Lobby
Event Hall
Exhibition Hall
