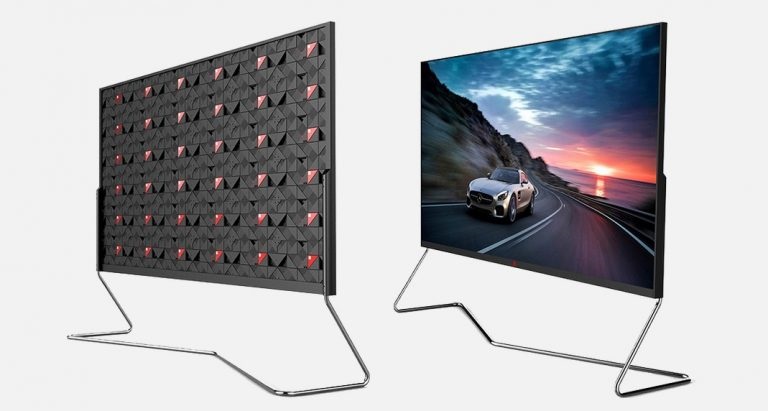

Our BIG Smart LED TV is no ordinary LED TV you have ever seen on the market, where most are actually LED back-lit LCD based TV. Our product is made from direct view LED panel, where each individual pixel is made from LED lamps that emit lights in red, green and blue colours.
Explore Bracket Design
Order Now
Our BIG Smart LED TV is no ordinary LED TV you have ever seen on the market, where most are actually LED back-lit LCD based TV. Our product is made from direct view LED panel, where each individual pixel is made from LED lamps that emit lights in red, green and blue colours.

Smart LED TV

Order Now
Explore Bracket Design
Our BIG Smart LED TV is no ordinary LED TV you have ever seen on the market, where most are actually LED back-lit LCD based TV. Our product is made from direct view LED panel, where each individual pixel is made from LED lamps that emit lights in red, green and blue colours.

Smart LED TV

Order Now
Slider

Smart LED TV

Coupled with modular design, it is possible to form much larger screen size than before, starting from 110″, 135″, 165″ to 220″, suitable for modern homes or commercial installations looking for big smart LED TV. Be ready to vow your audiences with our BIG Smart LED TV now!

Smart LED TV Content

Modular & Cable-less Design

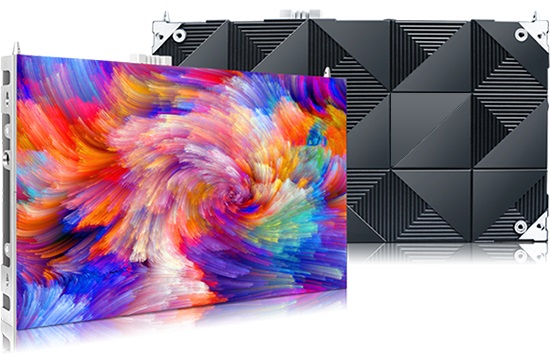

We design BIG Smart LED TV to be modular and cable-less. It means we can build bigger screen at ease. Each panel is sized to 608mm x 342mm in 16:9 ratio. Besides, we can increase the screen size while maintaining the golden ratio of 16:9 by cascading even number of columns and rows.

Hub slot inter-connectors join each panel. Therefore, this reduces the use of hardwire cables which can be messy to setup and less reliable. With this each panel can operate much more reliable for continuous visual experience.

2K, 4K and up to 8K Resolutions

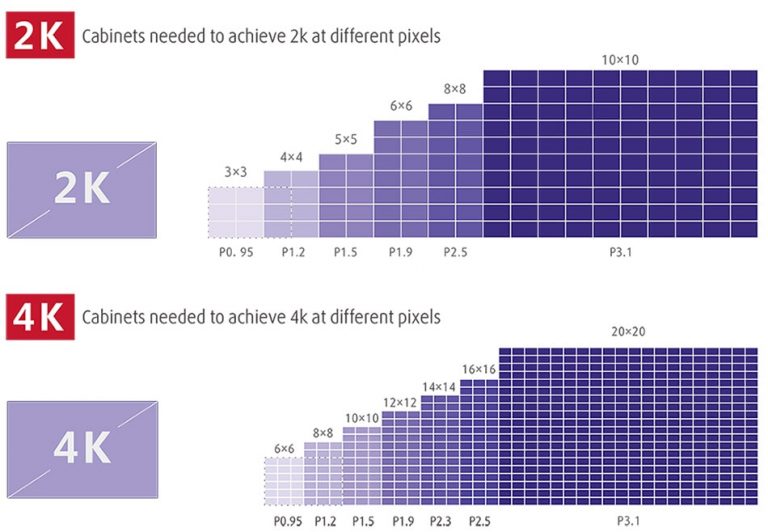

Modular LED panel construction enables us to increase the resolution of the LED screen at ease. Therefore, this modular method can be use for us to increase the resolution and sizes very easily. This is unlike the design fix the sizes of conventional LED TV where largest size is limited around 100″ due to lower production yield and difficulty in transportation.

A 165″ Full HD LED screen can be constructed using P1.9 LED panels in 6×6 arrangement. To bump up to 4K resolution, we can simply increase panel arrangement to 10×10 or go for smaller pixel pitch of P0.95 while maintaining the panel arrangement of 5×5 (same size).

Smart LED TV Content
Smart LED TV Content

High Precision & Light Weight

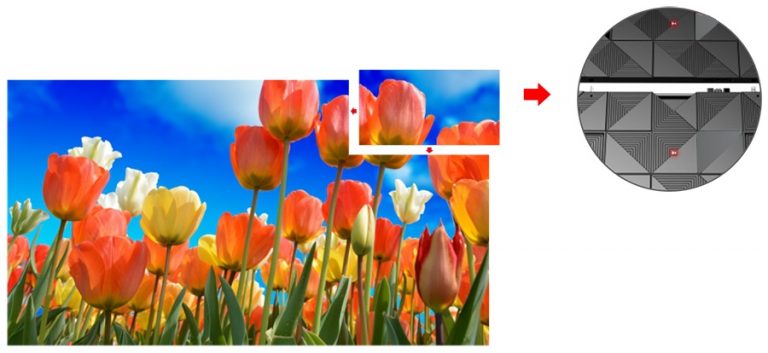

Using CNC manufacturing process and alloy materials, the accuracy in panel joints are within 0.01mm level. This ensures that the whole screen is uniform without any black or bight lines, which is a very common problem with LED screen in the industry.

Second, Light weight construction also means that the screen can be mounted directly onto the wall, or using our neatly designed bracket stand fit to any interior space.
