Transparent LED Screen Display

Transparent LED screen is commonly refer to LED screen that is not solid like our BIG Indoor & BIG Outdoor LED Screen Display. A transparent LED screen can allow some external lights to pass through the LED screen. Hence the term of “transparent” is used for such product. However, do you know there are many types of such “transparent” LED screen?

Our BIG Transparent series is made up of
3 types of transparent LED screens. Therefore, the selection of the product depends on site conditions, brightness requirements and purpose of the LED screen display installation. The 3 types of our BIG Transparent series are as follows:

Transparent LED Content

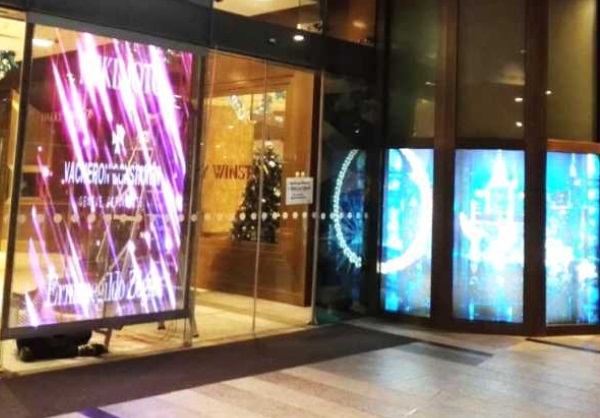

BIG Glass

Transparent LED Screen for Behind-the-Glass installation

  • For indoor installation (behind the glass)
  • Not waterproof
  • High transparency ratio up to 87%
  • Silver aluminium back frame
  • Customizable panel size
  • Low brightness option <1,500 nits for indoor applications
  • High brightness option >5,500 nits for outdoor applications
Transparent LED Content

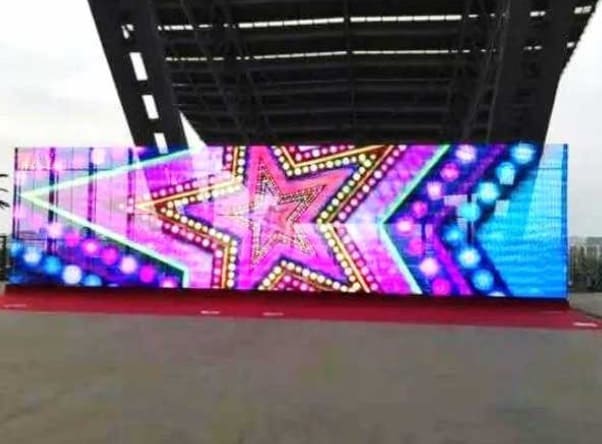

BIG Curtain

Fully Outdoor Rated LED Screen for External Building Installation​

  • For outdoor installation
  • Fully waterproof
  • IP67 rating
  • Black powder coated aluminium back casing frame
  • High transparency ratio up to 85%
  • Fully sealed panel with aerospace connectors
  • High brightness up to 8,000 nits for fully outdoor display applications
Transparent LED Content

BIG Mesh

Fully Flexible LED Mesh for Building Media Facade Installation

  • For outdoor installation
  • Fully waterproof
  • IP67 rating
  • High transparency ratio up to 90%
  • Minimal mounting frame support
  • Super lightweight and least visibility obstruction
  • Low brightness option only <2,000 nits for evening / night display applications

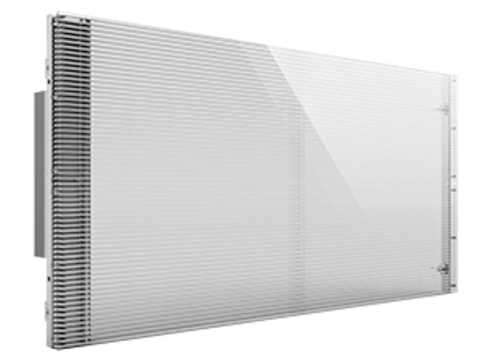

BIG Glass - Transparent LED Screen

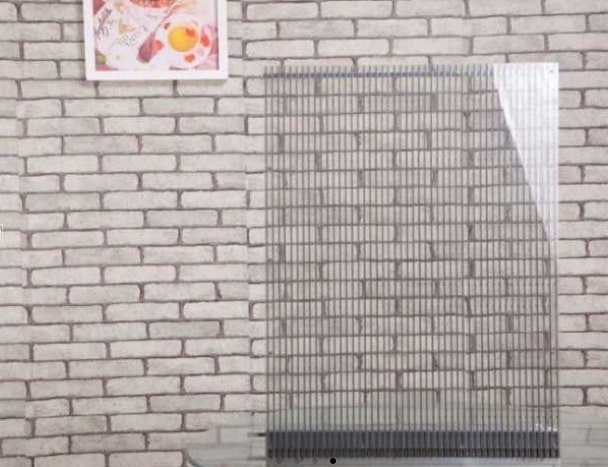

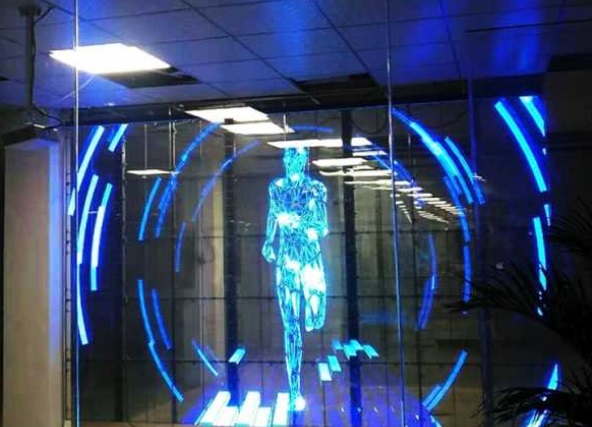

Our BIG Glass LED Screen has a strip-like LED lamp arrangement sandwiched between acrylic sheet layers. It can provide visual display and transparency effect at the same time.

Product features:

  • Available Pixel Pitch: P3.9, P7.8, P10.4
  • Two types of brightness, 1,500 nits for facing indoor use and up to 5,500 nits for facing outdoor use
  • Up to 87% transparency ratio for almost no visual obstruction
  • Standard panel size of 500 x 1000mm, and can also be customized to fit to the windows size
  • Lightweight aluminium casing design

BIG Glass - Applications

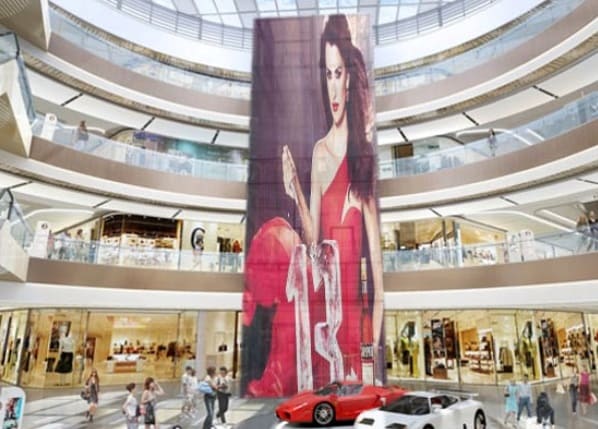

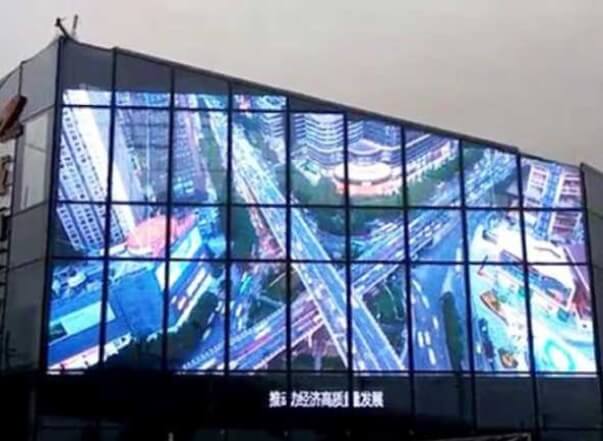

The BIG Glass series can be used for the following applications:

  • Retail outlet
  • Shopping mall
  • Office windows
  • Building glass wall
  • Shop windows
  • Car showroom
  • Jewelry outlets
  • Airport
  • Creative art
  • Entertainment venues

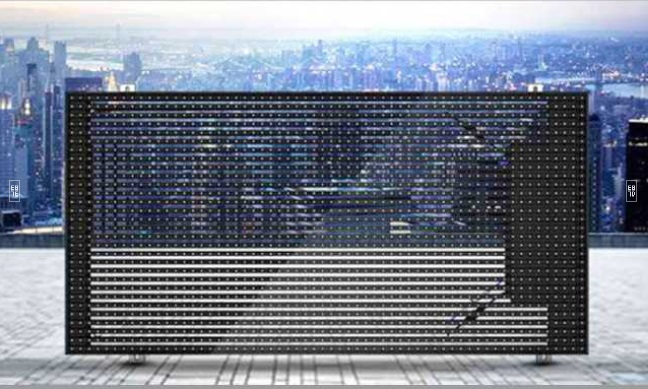

BIG Curtain - Transparent LED Screen

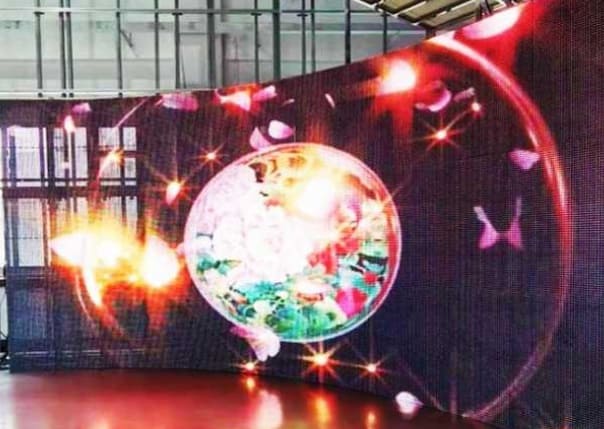

Our BIG Curtain LED Screen is made from DIP LED lamps, which can provide superior brightness and lower power consumption over SMD LED lamps. The whole panel is designed to be waterproof, including the separate field for power supply and control system.

Product features:

  • Wide Range of Pixel Pitch: P16, P25, P31, P50
  • Up to 8,000 nits brightness to replace traditional outdoor LED Screen
  • Up to 85% transparency for less visual obstruction
  • Reduced wind-load due to open slit design
  • Aluminium cast casing for lightweight and strong construction
  • Less structural weight and requirements for LED screen support

BIG Curtain - Applications

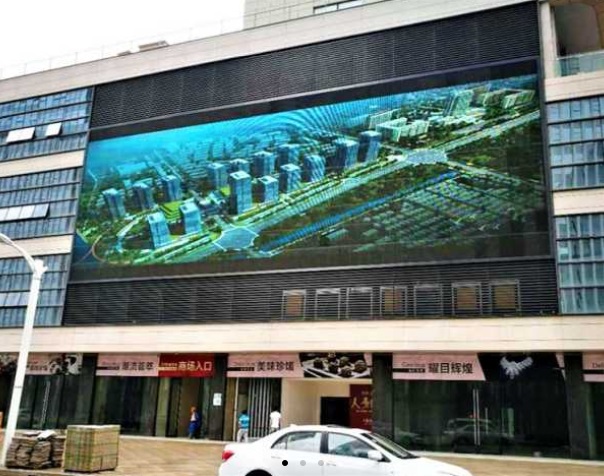

The BIG Curtain series can be used for the following applications:

  • Digital billboard
  • Shopping mall
  • Office block
  • Building facade
  • Media facade wall

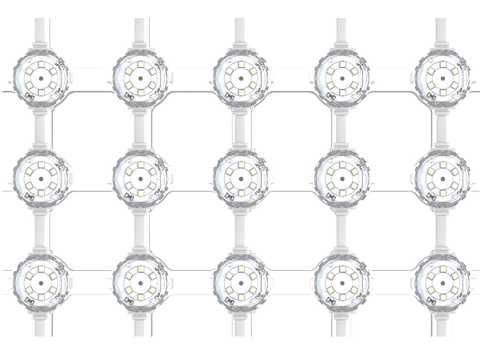

BIG Mesh - Transparent LED Screen

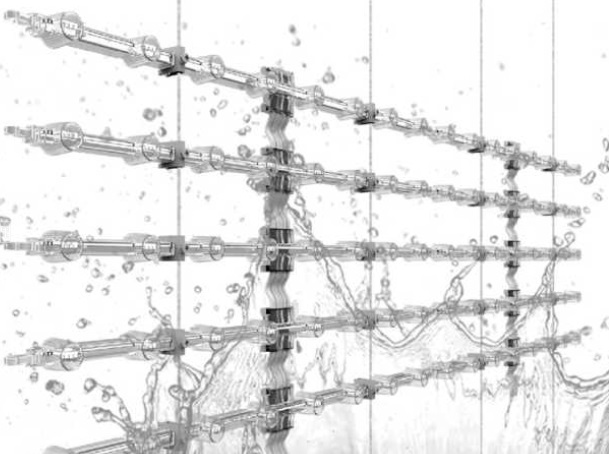

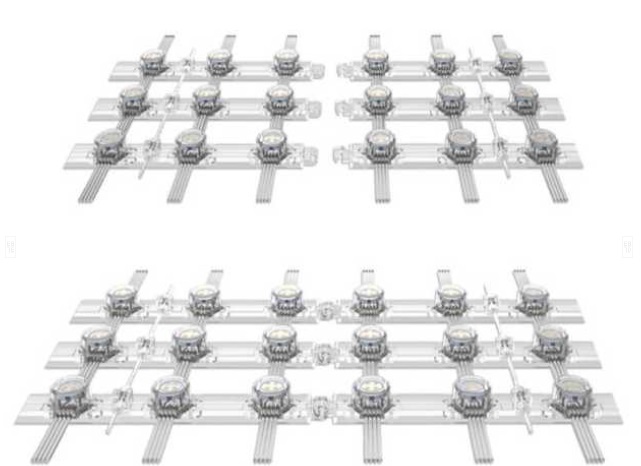

Our BIG Mesh LED Screen utilizes individual bulb-like LED lamp design, with flexible interconnecting cables to create a grid of LED screen. It is flexible, and can be fit to any building shapes.

Product features:

  • Flexible spacing between each LED lamp assembly
  • Fully flexible and customizable to fit to any building shapes
  • Up to 90% transparency ratio for super minimal visual obstruction
  • Up to 2,000 nits of brightness to light up the entire building
  • Can be used as architectural lighting or as media facade
  • Ultra lightweight design reduces the need of bulky support structure

BIG Mesh - Applications

The BIG Mesh series can be used for the following applications:

  • Digital billboard
  • Office block
  • Building facade
  • Media facade wall
  • Building glass wall
  • Glass facade
