Outdoor LED
S-Series

✓ High Stability
✓ High Protection

✓ High Flexibility
✓ High Performance

Features of Outdoor LED Display

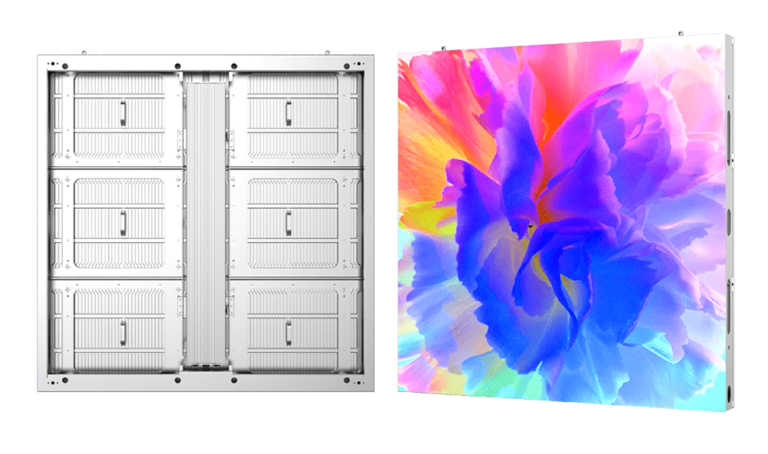

Big Outdoor LED S Series Modules

Outdoor LED
S-Series

✓ High Stability
✓ High Protection
✓ High Flexibility
✓ High Performance

Features of Outdoor LED Display

Higher Screen Display Resolution

Outdoor LED screen usually has a large pixel pitch of 10mm above. However, with matured manufacturing processes and extensive R&D budget, we are getting finer pixel pitches today. Finer pixel pitch helps to improve the screen resolution.

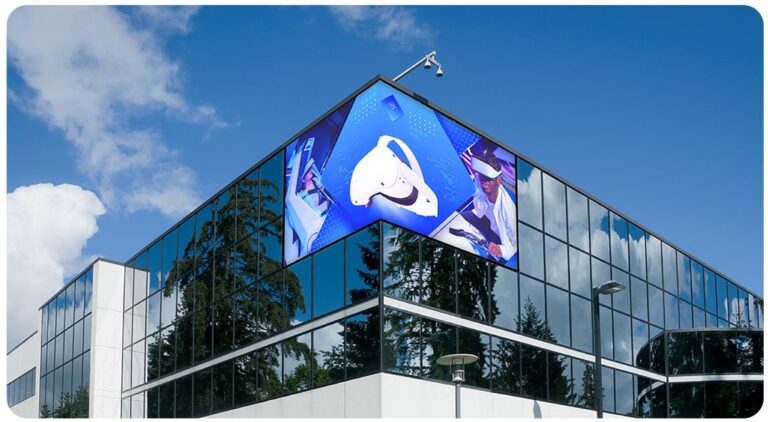

LED billboard using Big Outdoor S-Series

Perfect Seamless Corner

• Seamless perfect corner for naked eye 3D screen
• CCES technology
• Aluminium cabinet and module chasis
• Faster heat dissipation
• Low power consumption
• IP66, 5VB
• Certificate : CE, EMC, ETL FCC

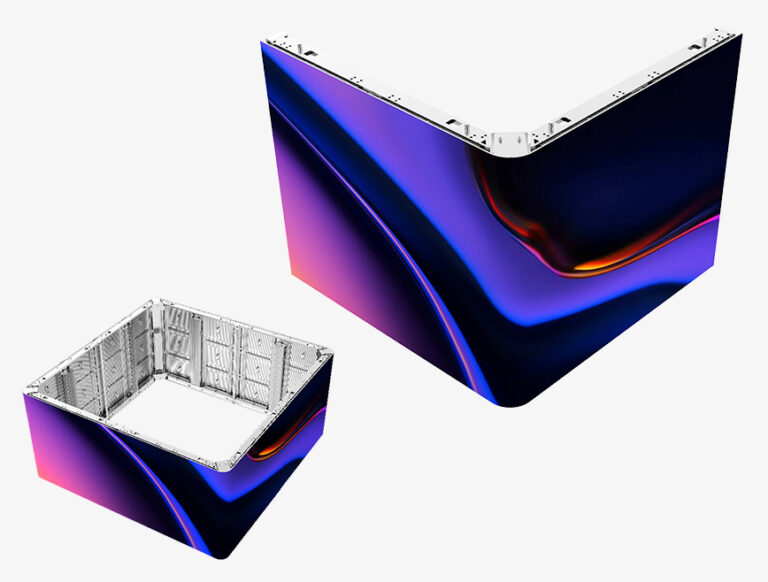

Outdoor LED Screen Cabinet with seamless corners

Superior Weather Resistance

Big Outdoor S Series features IP66-rated aluminium LED module design on both front & rear surfaces. The switching power supply unit and the LED receiving card are also fully enclosed in an aluminium compartment with a heatsink design.

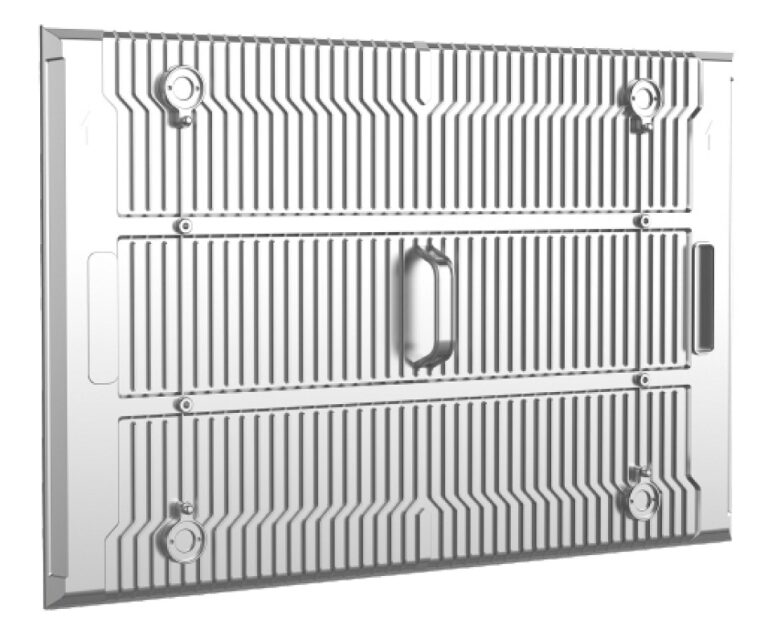

Heat Dissipation design of Outdoor LED module

Fast Heat Dissipation

• 5VB Fireproof
• Heat sink design for module chasis and power supply unit that improves heat dissipation considerably
• Aluminium module chasis and panel frame accelerate heat dissipation
• Work stably under low / high temperature (-40°C ~ +60°C)


Better Heat Dissipation

• Aluminium Module Cover + power Box > 90% Heat Sink
• Power box heat sink, 12mm in depth

Heat Dissipation design of Outdoor LED module

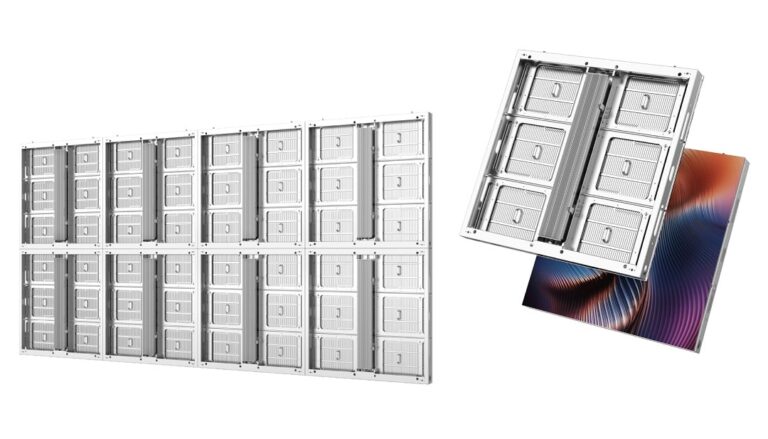

Front and Rear Service of Outdoor LED cabinets

Front & Rear Service

Due to the front accessible design, LED modules, switching power suppy unit and LED receiving card can be replaced from front by using simple tools.

A fully front accessible outdoor LED screen can have a thickness ranging from 200 to 300mm, while a rear accessible outdoor LED screen has a thickness ranging from 750 to 900mm.

High Brightness

Accurate electricity distribution for RGB LED chips to reach 5500 - 10000nits. Visible under direct sunlight.

Grey Scale ≥ 14 Bits

High greyscale for high quality image and video display.

Refresh Rate 3840Hz

Reduce glint for camera. Achieve the best visual effect.

Power Consumption

Max power consumption: 560w±3%/m2 vs 1000w/m2
Ave power consumption: 152w/m2 vs 360w/m2

Product Size

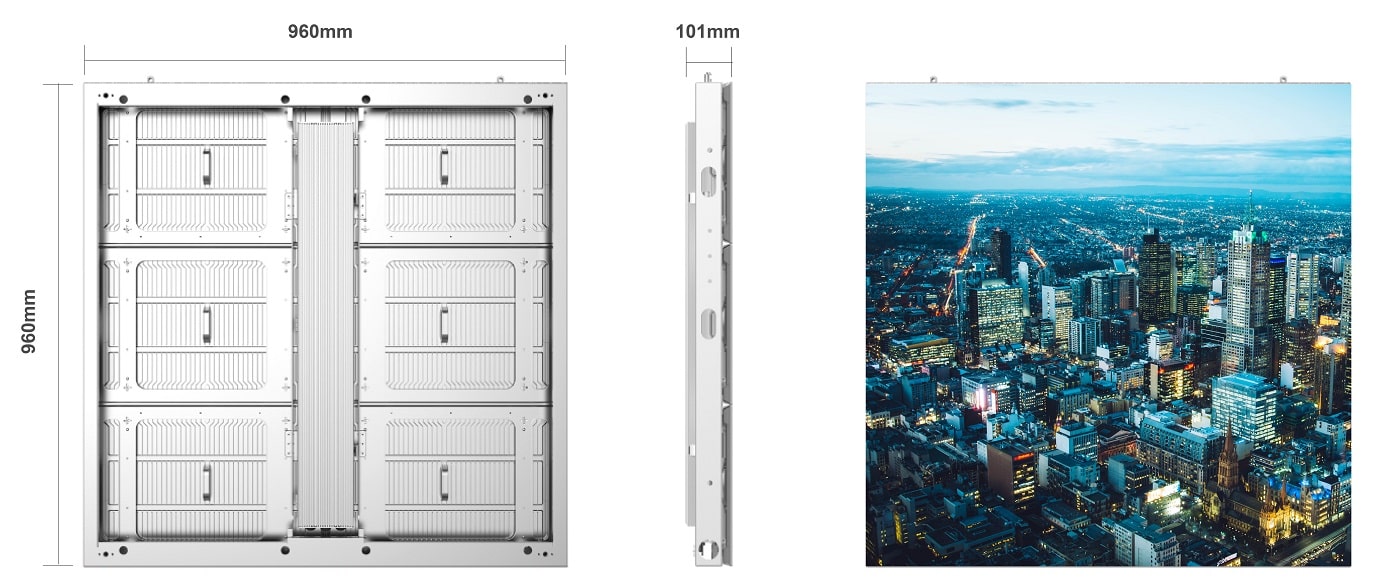

Big Outdoor LED S Series Size

Specifications

ModelBIG-O6.6-SBIG-O8-SBIG-O10-S
Pixel Pitch6.67810
Pixel Density225001562510000
LED ArrangementSMD2727SMD3535SMD3535
Module Resolution72 x 4860 x 4048 x 32
Module Dimension480 x 320480 x 320480 x 320
Module Weight1.9kg1.9kg1.9kg
Module Thickness23.5mm23.5mm23.5mm
Gray Scale (bit)14-16bit14-16bit14-16bit
Brightness Level5500-6000nits5500-6000nits5500-6000nits
Cabinet Size960×1280 / 960 x 960 / 960 x 640 / 1440 x 1280 / 1440 x 960960×1280 / 960 x 960 / 960 x 640 / 1440 x 1280 / 1440 x 960960×1280 / 960 x 960 / 960 x 640 / 1440 x 1280 / 1440 x 960
Cabinet Weight (kg)30kg/m230kg/m230kg/m2
Cabinet Thickness (mm)101mm101mm101mm
Max Power Consumption550w/m2550w/m2550w/m2
Ave Power Consumption200w/m2200w/m2200w/m2
Visual View Angle16°/60°/30°16°/60°/30°16°/60°/30°
Operating Power SourceAC110-220V/200-240VAC110-220V/200-240VAC110-220V/200-240V
Operating Temperature-30°C ~ +60°C-30°C ~ +60°C-30°C ~ +60°C
Refresh Rate3840Hz3840Hz3840Hz
Protecting RatingIP66IP66IP66
