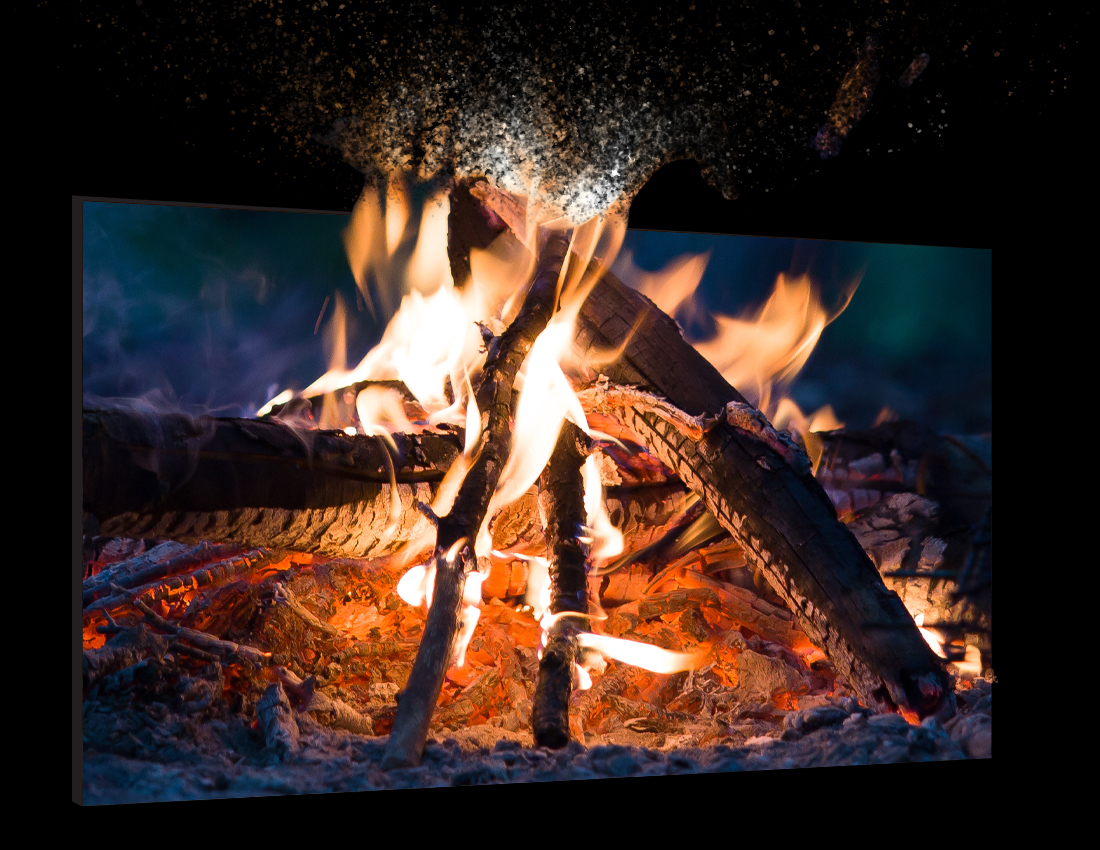

Unveiling Superior Pixel Pitch
Discover the future of display technology with COB microLED Display, offering a superior pixel pitch that takes visual clarity to new heights. Each pixel is meticulously placed, providing unrivaled precision and detail in your content. Experience visuals like never before, whether it's immersive gaming, cinema-quality movies, or impactful presentations. Say goodbye to pixelation and hello to a world of vibrant, life-like imagery.
Discover the future of display technology with COB microLED Display, offering a superior pixel pitch that takes visual clarity to new heights. Each pixel is meticulously placed, providing unrivaled precision and detail in your content. Experience visuals like never before, whether it's immersive gaming, cinema-quality movies, or impactful presentations. Say goodbye to pixelation and hello to a world of vibrant, life-like imagery.
Vivid Colors
Exceptional color purity
and an extended color gamut
beyond classic LED Displays.
and an extended color gamut
beyond classic LED Displays.
Vivid Colors
Exceptional color purity and an extended color gamut beyond classic LED Displays.
Exceptional color purity and an extended color gamut beyond classic LED Displays.
Purest Black
Vanta 5H Black Matte Film (BMF) coating technology is meticulously designed to provide greater detail in dark scenes while ensuring an eye-friendly and comfortable viewing experience.
Purest Black
Vanta 5H Black Matte Film (BMF) coating technology is meticulously designed to provide greater detail in dark scenes while ensuring an eye-friendly and comfortable viewing experience.
Vanta 5H Black Matte Film (BMF) coating technology is meticulously designed to provide greater detail in dark scenes while ensuring an eye-friendly and comfortable viewing experience.
Comfortable Viewing Experience
Benefit from VANTA 5H Black Matte Film (BMF) matter coated surface, ensuring umblemished LED surface with minimal reflection from any ambient light or viewing angle.
Comfortable Viewing Experience
Benefit from VANTA 5H Black Matte Film (BMF) matter coated surface, ensuring umblemished LED surface with minimal reflection from any ambient light or viewing angle.
Great Contrast for Lifelike Content
Dive into a world of lifelike content with COB microLED technology, known for its exceptional contrast capabilities.Discover a visual experience that brings every detail to life, from the deepest blacks to the most vibrant colors. COB microLED's great contrast ensures that your content are displayed with stunning realism, making you feel like you're part of the action.Immerse yourself in vivid, true-to-life visuals, and take your viewing experience to the next level with COB microLED.
Dive into a world of lifelike content with COB microLED technology, known for its exceptional contrast capabilities.Discover a visual experience that brings every detail to life, from the deepest blacks to the most vibrant colors. COB microLED's great contrast ensures that your content are displayed with stunning realism, making you feel like you're part of the action.Immerse yourself in vivid, true-to-life visuals, and take your viewing experience to the next level with COB microLED.
Energy Saving
Elevate your viewing experience while reducing your carbon footprint.
Embrace sustainability without compromising on excellence.
Embrace sustainability without compromising on excellence.
Energy Saving
Elevate your viewing experience while reducing your carbon footprint. Embrace sustainability without compromising on excellence.
Energy Saving
Elevate your viewing experience while reducing your carbon footprint. Embrace sustainability without compromising on excellence.

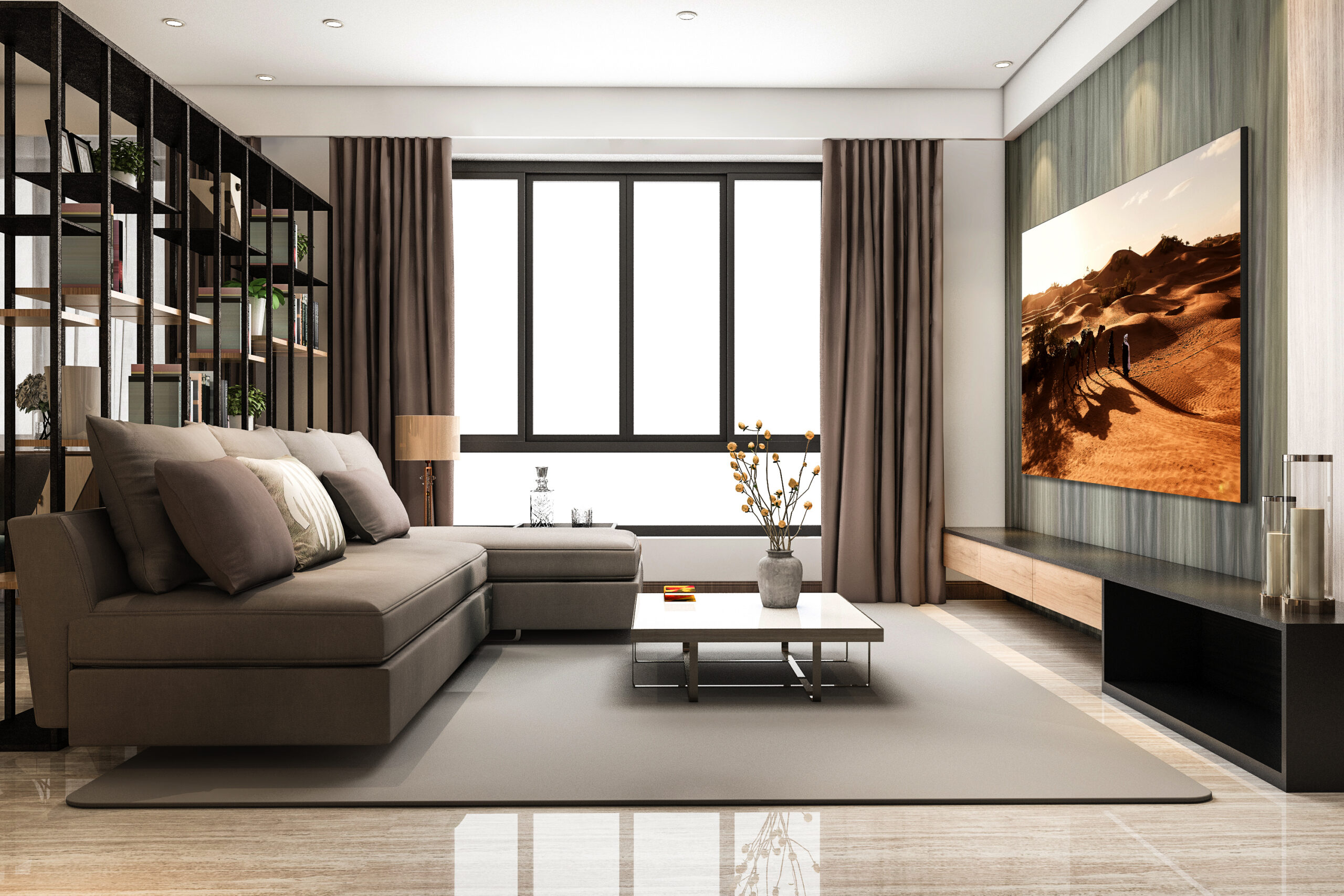

170° Viewing Angle
When it comes to screens and displays, seeing is believing. Imagine having a viewing experience that offers more than just what’s in front of you. With a 170° viewing angle, you can embrace the whole picture.
When it comes to screens and displays, seeing is believing. Imagine having a viewing experience that offers more than just what’s in front of you. With a 170° viewing angle, you can embrace the whole picture.
When it comes to screens and displays, seeing is believing. Imagine having a viewing experience that offers more than just what’s in front of you. With a 170° viewing angle, you can embrace the whole picture.
Effortless Operation
Flip-Chip COB technology elevates durability to unparalleled levels with exceptional resistance to
Impacts
Water
Dust
Electrostatic discharge (ESD)
Effortless Operation
Flip-Chip COB technology elevates durability to unparalleled levels with exceptional resistance to
Impacts
Water
Dust
Electrostatic discharge (ESD)

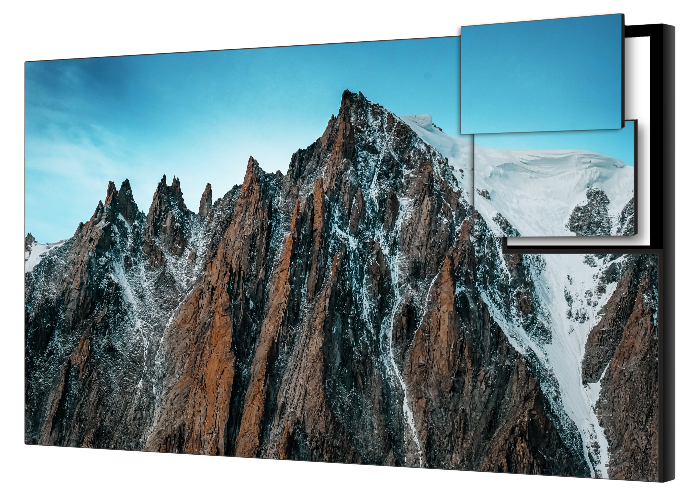

Easy Installation
Experience remarkable thin design, installation is easy and hassle free. Min depth of only 39.5mm. COB microLED Display module is designed to be attached to the die-cast magnesium alloy panel via strong magnetic attachments.
Easy Installation
Experience remarkable thin design, installation is easy and hassle free. Min depth of only 39.5mm. COB microLED Display module is designed to be attached to the die-cast magnesium alloy panel via strong magnetic attachments.
Product Specification
| Pixel Pitch (mm) | 0.78 |
| Pixel Density (pixel/m²) | 1,638,400 |
| Module Resolution (WxH) | 192 x 216 |
| Cabinet Resolution (WxH) | 768 x 432 |
| Pixel Type | flip-chip, COB encapsulation |
| Sub-module Size (WxH) | 150mm x 168.75mm |
| Module Size (WxH) | 160mm x 337.5mm |
| Cabinet Size (WxHxD) | 600mm x 337.5mm x 39.5mm |
| Cabinet Area (m²) | 0.2025 |
| Cabinet Flatness (mm) | ≤ 0.1 |
| Cabinet Weight | 6.1 ± 0.1kg / 13.45 ± 0.22lb |
| Service ability | front |
| Peak Brightness (cd/m²) | 1200 |
| Max. Brightness (cd/m²) | 0-800 (Calibrated@9300K) |
| Calibration Brightness | Support |
| Calibration Chroma | Support |
| Brightness Uniformity | ≥ 98% |
| Color Temperature (K) | 3000-10000 adjustable |
| Color Gamut | ≥ 115% NTSC |
| FOV Horizontal (°) | ≥ 170 |
| FOV Vertical (°) | ≥ 170 |
| Static Contrast | ≥ 10,000:1 |
| Dynamic Contrast | ≥ 300,000:1 |
| Input Voltage (V) | AC 100-240V (50/60Hz) |
| Power Consumption (Max/Avg) | ≤500/166 (W/m²) |
| Heat (Max/Avg) | 1707/567 (BTU/m²) |
| Drive Mode | Constant Current |
| Common Cathode | Support |
| Bit Depth | 16 |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50/60 |
| Ingress Protection | IP54 (LED Surface Moisture-proof & Dust-proof) |
| Operation Temperature (°) | -10~+40 / 10%~90% with no condensation |
| Storage Temperature (°) | -20~+60 / 10%~90% with no condensation |
| Verification | CE/FCC/RoHS |
| LED Chips Typical Lifespan | 100,000 Hours |
| Pixel Pitch (mm) | 0.93 |
| Pixel Density (pixel/m²) | 1,137,777 |
| Module Resolution (WxH) | 161 x 181 |
| Cabinet Resolution (WxH) | 644 x 362 |
| Pixel Type | flip-chip, COB encapsulation |
| Sub-module Size (WxH) | 150mm x 168.75mm |
| Module Size (WxH) | 160mm x 337.5mm |
| Cabinet Size (WxHxD) | 600mm x 337.5mm x 39.5mm |
| Cabinet Area (m²) | 0.2025 |
| Cabinet Flatness (mm) | ≤ 0.1 |
| Cabinet Weight | 6.1 ± 0.1kg / 13.45 ± 0.22lb |
| Service ability | front |
| Peak Brightness (cd/m²) | 1200 |
| Max. Brightness (cd/m²) | 0-800 (Calibrated@9300K) |
| Calibration Brightness | Support |
| Calibration Chroma | Support |
| Brightness Uniformity | ≥ 98% |
| Color Temperature (K) | 3000-10000 adjustable |
| Color Gamut | ≥ 115% NTSC |
| FOV Horizontal (°) | ≥ 170 |
| FOV Vertical (°) | ≥ 170 |
| Static Contrast | ≥ 10,000:1 |
| Dynamic Contrast | ≥ 300,000:1 |
| Input Voltage (V) | AC 100-240V (50/60Hz) |
| Power Consumption (Max/Avg) | ≤500/166 (W/m²) |
| Heat (Max/Avg) | 1707/567 (BTU/m²) |
| Drive Mode | Constant Current |
| Common Cathode | Support |
| Bit Depth | 16 |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50/60 |
| Ingress Protection | IP54 (LED Surface Moisture-proof & Dust-proof) |
| Operation Temperature (°) | -10~+40 / 10%~90% with no condensation |
| Storage Temperature (°) | -20~+60 / 10%~90% with no condensation |
| Verification | CE/FCC/RoHS |
| LED Chips Typical Lifespan | 100,000 Hours |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixel/m²) | 640,000 |
| Module Resolution (WxH) | 120 x 135 |
| Cabinet Resolution (WxH) | 480 x 270 |
| Pixel Type | flip-chip, COB encapsulation |
| Sub-module Size (WxH) | 150mm x 168.75mm |
| Module Size (WxH) | 160mm x 337.5mm |
| Cabinet Size (WxHxD) | 600mm x 337.5mm x 39.5mm |
| Cabinet Area (m²) | 0.2025 |
| Cabinet Flatness (mm) | ≤ 0.1 |
| Cabinet Weight | 6.1 ± 0.1kg / 13.45 ± 0.22lb |
| Service ability | front |
| Peak Brightness (cd/m²) | 1200 |
| Max. Brightness (cd/m²) | 0-800 (Calibrated@9300K) |
| Calibration Brightness | Support |
| Calibration Chroma | Support |
| Brightness Uniformity | ≥ 98% |
| Color Temperature (K) | 3000-10000 adjustable |
| Color Gamut | ≥ 115% NTSC |
| FOV Horizontal (°) | ≥ 170 |
| FOV Vertical (°) | ≥ 170 |
| Static Contrast | ≥ 10,000:1 |
| Dynamic Contrast | ≥ 300,000:1 |
| Input Voltage (V) | AC 100-240V (50/60Hz) |
| Power Consumption (Max/Avg) | ≤500/166 (W/m²) |
| Heat (Max/Avg) | 1707/567 (BTU/m²) |
| Drive Mode | Constant Current |
| Common Cathode | Support |
| Bit Depth | 16 |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50/60 |
| Ingress Protection | IP54 (LED Surface Moisture-proof & Dust-proof) |
| Operation Temperature (°) | -10~+40 / 10%~90% with no condensation |
| Storage Temperature (°) | -20~+60 / 10%~90% with no condensation |
| Verification | CE/FCC/RoHS |
| LED Chips Typical Lifespan | 100,000 Hours |
| Pixel Pitch (mm) | 1.56 |
| Pixel Density (pixel/m²) | 409,600 |
| Module Resolution (WxH) | 96 x 108 |
| Cabinet Resolution (WxH) | 384 x 216 |
| Pixel Type | flip-chip, COB encapsulation |
| Sub-module Size (WxH) | 150mm x 168.75mm |
| Module Size (WxH) | 160mm x 337.5mm |
| Cabinet Size (WxHxD) | 600mm x 337.5mm x 39.5mm |
| Cabinet Area (m²) | 0.2025 |
| Cabinet Flatness (mm) | ≤ 0.1 |
| Cabinet Weight | 6.1 ± 0.1kg / 13.45 ± 0.22lb |
| Service ability | front |
| Peak Brightness (cd/m²) | 1200 |
| Max. Brightness (cd/m²) | 0-800 (Calibrated@9300K) |
| Calibration Brightness | Support |
| Calibration Chroma | Support |
| Brightness Uniformity | ≥ 98% |
| Color Temperature (K) | 3000-10000 adjustable |
| Color Gamut | ≥ 115% NTSC |
| FOV Horizontal (°) | ≥ 170 |
| FOV Vertical (°) | ≥ 170 |
| Static Contrast | ≥ 10,000:1 |
| Dynamic Contrast | ≥ 300,000:1 |
| Input Voltage (V) | AC 100-240V (50/60Hz) |
| Power Consumption (Max/Avg) | ≤500/166 (W/m²) |
| Heat (Max/Avg) | 1707/567 (BTU/m²) |
| Drive Mode | Constant Current |
| Common Cathode | Support |
| Bit Depth | 16 |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50/60 |
| Ingress Protection | IP54 (LED Surface Moisture-proof & Dust-proof) |
| Operation Temperature (°) | -10~+40 / 10%~90% with no condensation |
| Storage Temperature (°) | -20~+60 / 10%~90% with no condensation |
| Verification | CE/FCC/RoHS |
| LED Chips Typical Lifespan | 100,000 Hours |
| Pixel Pitch (mm) | 1.875 |
| Pixel Density (pixel/m²) | 284,444 |
| Module Resolution (WxH) | 80 x 90 |
| Cabinet Resolution (WxH) | 320 x 180 |
| Pixel Type | flip-chip, COB encapsulation |
| Sub-module Size (WxH) | 150mm x 168.75mm |
| Module Size (WxH) | 160mm x 337.5mm |
| Cabinet Size (WxHxD) | 600mm x 337.5mm x 39.5mm |
| Cabinet Area (m²) | 0.2025 |
| Cabinet Flatness (mm) | ≤ 0.1 |
| Cabinet Weight | 6.1 ± 0.1kg / 13.45 ± 0.22lb |
| Service ability | front |
| Peak Brightness (cd/m²) | 1200 |
| Max. Brightness (cd/m²) | 0-800 (Calibrated@9300K) |
| Calibration Brightness | Support |
| Calibration Chroma | Support |
| Brightness Uniformity | ≥ 98% |
| Color Temperature (K) | 3000-10000 adjustable |
| Color Gamut | ≥ 115% NTSC |
| FOV Horizontal (°) | ≥ 170 |
| FOV Vertical (°) | ≥ 170 |
| Static Contrast | ≥ 10,000:1 |
| Dynamic Contrast | ≥ 300,000:1 |
| Input Voltage (V) | AC 100-240V (50/60Hz) |
| Power Consumption (Max/Avg) | ≤500/166 (W/m²) |
| Heat (Max/Avg) | 1707/567 (BTU/m²) |
| Drive Mode | Constant Current |
| Common Cathode | Support |
| Bit Depth | 16 |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50/60 |
| Ingress Protection | IP54 (LED Surface Moisture-proof & Dust-proof) |
| Operation Temperature (°) | -10~+40 / 10%~90% with no condensation |
| Storage Temperature (°) | -20~+60 / 10%~90% with no condensation |
| Verification | CE/FCC/RoHS |
| LED Chips Typical Lifespan | 100,000 Hours |
