Indoor LED Screen HD Series
High-definition indoor LED display to deliver exceptional viewing experience. Reach your target audience effectively with full HD, 2K or 4K Ultra HD LED screen.
Indoor LED Display HD Series
High-definition indoor LED display to deliver exceptional viewing experience. Reach your target audience effectively with full HD, 2K or 4K Ultra HD LED screen.
Improve Audience Engagement
BIG INDOOR LED Screen HD Series brings cable-less design together with exceptional indoor-ready picture quality to engage your audience with an immersive visual environment. Various pixel pitches available.
Fit perfectly different architectural curves to expand the display composition possibilities. Build LED wall and digital display with full HD, 2K or 4K UHD resolution easily.
Finer Pixel Pitch
Finer pixel pitch options available. Support high-definition LED display screen. Available in 300 x 337.5mm and 600 x 337mm LED screen sizes.
- P0.93 – pixel pitch of 0.93mm
- P1.25 – pixel pitch of 1.25mm
- P1.56 – pixel pitch of 1.56mm
- P1.87 – pixel pitch of 1.87mm
Easy To Assemble
LED cabinets can be customized to meet unique screen size requirements. Support wall-mount installation and make use of limited spaces effectively. Feel free to build your desired digital screen or LED video wall.

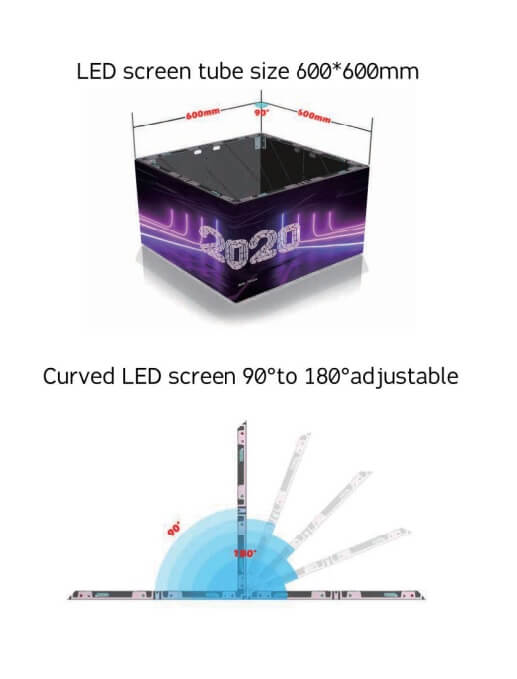

Fit Different Curves
Seamless splicing of the LED screen allows unlimited screen size, structure, and space. Fit perfectly different architectural curves to maximize the visual experience.
Seamless alignment of two cabinets can be achieved by using positioning pins and Coaxial screws.
Ultra-high Refresh Rate
The refresh rate can reach up to 3,840Hz. Support fast decoding and response. Eliminate visible lines and noise when capturing with a digital camera. Deliver clear and smooth visual experience.
Vivid Colours
16-bit processing technology helps to deliver excellent grayscale performance with vivid colours regardless of the screen brightness.
Wide Viewing Angle
160° wide viewing. Deliver an excellent viewing experience without the loss of true colour definition.

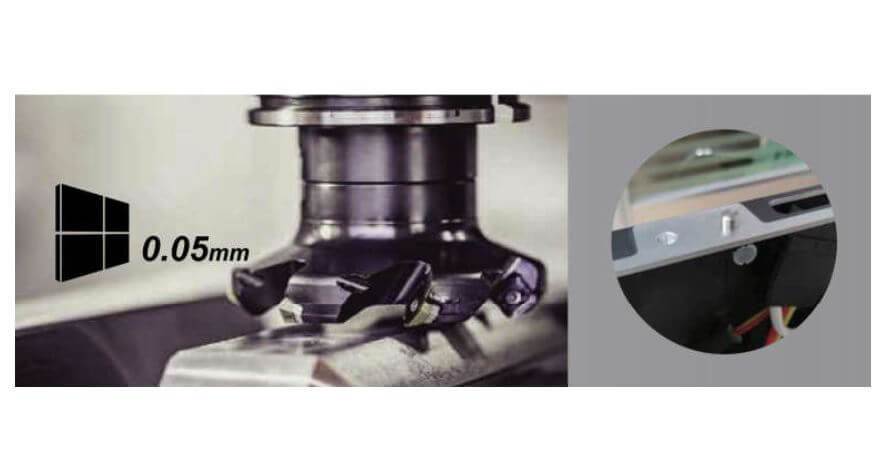

Excellent Surface Flatness
Manufactured by a high-precision CNC machine, the aluminium case is light-weight, strong and anticorrosion proof. The flat pins in the aluminium case control have a tolerance within 0.05mm. The flatness of the LED screen allows viewers to enjoy the best viewing experience.

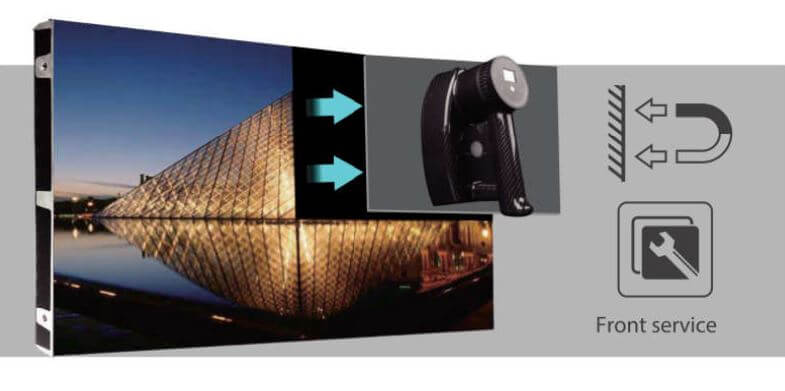

Front Maintenance Design
Front maintenance is a key engineering requirement for fine pitch LED displays. Thickness can be greatly reduced. Rear maintenance access can be eliminated to prevent dust accumulation and damage to the electronic components or the PCB boards. The modules can be replaced quickly with the vacuum sucker tool to guarantee the maintenance efficiency.

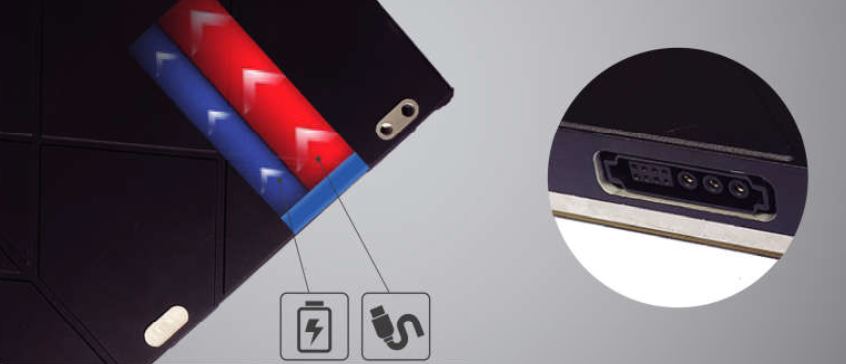

Fast & Hidden Interface
Power and signal cables are hidden inside of the LED cabinet to avoid accidental damage of the cables and to keep the entire LED screen neat. The usage of the aviation connectors integrates both data and power into one cable quickly.
The LED screen also adopts a dual backup design. The data backup will be activated automatically whenever there is an interruption of data transmitting.
Noiseless & Energy Saving
The aluminium back plate helps to ensure an effective heat dissipation. Zero noise ensures a more friendly operation since no fans are required in the cabinet. Besides, it also reduces the power consumption of the display effectively. Operation cost can be reduced.
Finer Pixel Pitch
Finer pixel pitch options available. Support high-definition LED display screen. Available in 300 x 337.5mm and 600 x 337mm LED screen sizes.
- P0.93 – pixel pitch of 0.93mm
- P1.25 – pixel pitch of 1.25mm
- P1.56 – pixel pitch of 1.56mm
- P1.87 – pixel pitch of 1.87mm
Easy To Assemble
LED cabinets can be customized to meet unique screen size requirements. Support wall-mount installation and make use of limited spaces effectively. Feel free to build your desired digital screen or LED video wall.
Fit Different Curves
Seamless splicing of the LED screen allows unlimited screen size, structure, and space. Fit perfectly different architectural curves to maximize the visual experience.
Seamless alignment of two cabinets can be achieved by using positioning pins and Coaxial screws.
Ultra-high Refresh Rate
The refresh rate can reach up to 3,840Hz. Support fast decoding and response. Eliminate visible lines and noise when capturing with a digital camera. Deliver clear and smooth visual experience.
Vivid Colours
16-bit processing technology helps to deliver excellent grayscale performance with vivid colours regardless of the screen brightness.
Wide Viewing Angle
160° wide viewing. Deliver an excellent viewing experience without the loss of true colour definition.
Even Flatness
Manufactured by a high-precision CNC machine, the aluminium case is light-weight, strong and anticorrosion proof. The flat pins in the aluminium case control have a tolerance within 0.05mm. The flatness of the LED screen allows viewers to enjoy the best viewing experience.
Front Maintenance Design
Front maintenance is a key engineering requirement for fine pitch LED displays. Thickness can be greatly reduced. Rear maintenance access can be eliminated to prevent dust accumulation and damage to the electronic components or the PCB boards. The modules can be replaced quickly with the vacuum sucker tool to guarantee the maintenance efficiency.
Fast & Hidden Interface
Power and signal cables are hidden inside of the LED cabinet to avoid accidental damage of the cables and to keep the entire LED screen neat. The usage of the aviation connectors integrates both data and power into one cable quickly.
The LED screen also adopts a dual backup design. The data backup will be activated automatically whenever there is an interruption of data transmitting.
Noiseless & Energy Saving
The aluminium back plate helps to ensure an effective heat dissipation. Zero noise ensures a more friendly operation since no fans are required in the cabinet. Besides, it also reduces the power consumption of the display effectively. Operation cost can be reduced.
LED Display: The Ultimate Guide
Examples of Full HD Multi-screen Configurations by Viewing Distance
Specifications
| Model | P0.93 | P1.25 | P1.56 | P1.87 |
| Pixel Pitch | 0.93mm | 1.25mm | 1.56mm | 1.87mm |
| Cabinet Resolution | 640 x 360px | 480 x 270px | 384 x 216px | 320 x 180px |
| Brightness (6,000K color temperature) | 800cd ~ 1,500cd/m2 | 800cd ~ 1,500cd/m2 | 800cd ~ 1,200cd/m2 | 600cd ~ 1,000cd/m2 |
| Pixel Density | 1,137,778 dots/m2 | 640,000 dots/m2 | 409,600 dots/m2 | 284,444 dots/m2 |
| Pixel Constitution | 3-IN-1 (1R1G1B) | |||
| Cabinet Weight | 4.3 kg | |||
| Cabinet Dimensions | 600mm x 337.5mm x 32mm / 300mm x 337.5mm x 32mm | |||
| Grayscale | 16 bit | |||
| Contrast Ratio | 3500:1 | |||
| Peak Consumption | ≤ 600W/m2 | |||
| Average Consumption | 100W/m2 ~ 300W/m2 | |||
| Screen Color Temperature | 2,000 ~ 9,500K Adjustable | |||
| Module Flatness | 0.1mm | |||
| Viewing Angle | 160°/140° | |||
| Refresh Rate | ≥ 3,000Hz | |||
| Working Voltage | AC: 95V ~ 240V | |||
| Power Supply Mode | DC/AC Power Supply (Options) | |||
| Ingress Protection | IP41 | |||
| LED life-time | 100,000h | |||
| Viewing Distance | ≤ 0.1mm | |||
| Screen Temperature Raise (under normal use) | ≤ 20°C | |||
| Pixel Calibration | Brightness & Chromatic Pixel Calibrations | |||
| Control Method | Synchronous / Asynchronous Control | |||
| Driving Method | Constant Current Drive | |||
| Cabinet Material | Die-casting Aluminium Case | |||
| Heat Dissipation Method | Electronics passive cooling, entire unit air-flow cooling | |||
| MTBF | ≥ 10,000 Hours | |||
| Power Backup | Dual backup power supply (Optional) | |||
| Signal Backup | Dual backup signal (Optional) | |||
| Transmission Distance | CAT5, Optic fibre cables when exceed 100 meters | |||
| Working Temperature / Humidity | -10°C ~ +60°C / 10% ~ 90%RH, No condensation | |||
| Installation Method | Mount-bracket / Wall-mount / Frame mount | |||
| Maintenance | Front Service | |||
| Model | P0.93 | P1.25 |
| Pixel Pitch | 0.93mm | 1.25mm |
| Cabinet Resolution | 640 x 360px | 480 x 270px |
| Brightness (6,000K color temperature) | 800cd ~ 1,500cd/m2 | 800cd ~ 1,500cd/m2 |
| Pixel Density | 1,137,778 dots/m2 | 640,000 dots/m2 |
| Model | P1.56 | P1.87 |
| Pixel Pitch | 1.56mm | 1.87mm |
| Cabinet Resolution | 384 x 216px | 320 x 180px |
| Brightness (6,000K color temperature) | 800cd ~ 1,200cd/m2 | 600cd ~ 1,000cd/m2 |
| Pixel Density | 409,600 dots/m2 | 284,444 dots/m2 |
| Pixel Constitution | 3-IN-1 (1R1G1B) | |||
| Cabinet Weight | 4.3 kg | |||
| Cabinet Dimensions | 600mm x 337.5mm x 32mm / 300mm x 337.5mm x 32mm | |||
| Grayscale | 16 bit | |||
| Contrast Ratio | 3500:1 | |||
| Peak Consumption | ≤ 600W/m2 | |||
| Average Consumption | 100W/m2 ~ 300W/m2 | |||
| Screen Color Temperature | 2,000 ~ 9,500K Adjustable | |||
| Module Flatness | 0.1mm | |||
| Viewing Angle | 160°/140° | |||
| Refresh Rate | ≥ 3,000Hz | |||
| Working Voltage | AC: 95V ~ 240V | |||
| Power Supply Mode | DC/AC Power Supply (Options) | |||
| Ingress Protection | IP41 | |||
| LED life-time | 100,000h | |||
| Viewing Distance | ≤ 0.1mm | |||
| Screen Temperature Raise (under normal use) | ≤ 20°C | |||
| Pixel Calibration | Brightness & Chromatic Pixel Calibrations | |||
| Control Method | Synchronous / Asynchronous Control | |||
| Driving Method | Constant Current Drive | |||
| Cabinet Material | Die-casting Aluminium Case | |||
| Heat Dissipation Method | Electronics passive cooling, entire unit air-flow cooling | |||
| MTBF | ≥ 10,000 Hours | |||
| Power Backup | Dual backup power supply (Optional) | |||
| Signal Backup | Dual backup signal (Optional) | |||
| Transmission Distance | CAT5, Optic fibre cables when exceed 100 meters | |||
| Working Temperature / Humidity | -10°C ~ +60°C / 10% ~ 90%RH, No condensation | |||
| Installation Method | Mount-bracket / Wall-mount / Frame mount | |||
| Maintenance | Front Service | |||
