The Wall
All-in-One
To inspire with unrivaled and outstanding visual experiences. Offering world-class visual quality while supporting quick installation and auto configuration setup.
THE WALL
All-in-One
To inspire with unrivaled and outstanding visual experiences. Offering world-class visual quality while supporting quick installation and auto configuration setup.
Innovation Without Limit
Deliver a truly immersive experience while drastically improving the installation process.
✘ Long Installation Period
✘ Complex Product Choices
✘ Extra Peripherals
✘ Time-consuming Configuration
Innovation without limit
Deliver a truly immersive experience while drastically improving the installation process.
✘ Long Installation Period
✘ Complex Product Choices
✘ Extra Peripherals
✘ Time-consuming Configuration
Quick Installation
The Wall can be installed in just 2 hours with a manpower of two.
Superb Image
Advanced picture refinement with accurate colors & higher dynamic range.
Simple Choice
Make purchase decision based on Resolution and Size only.
All-In-One
No additional purchases or components needed.
Auto Configuration
Built-in control box that allows a quick configuration.
Powerful Processor
Powerful AI processor that delivers superior visuals with enhanced contrast.

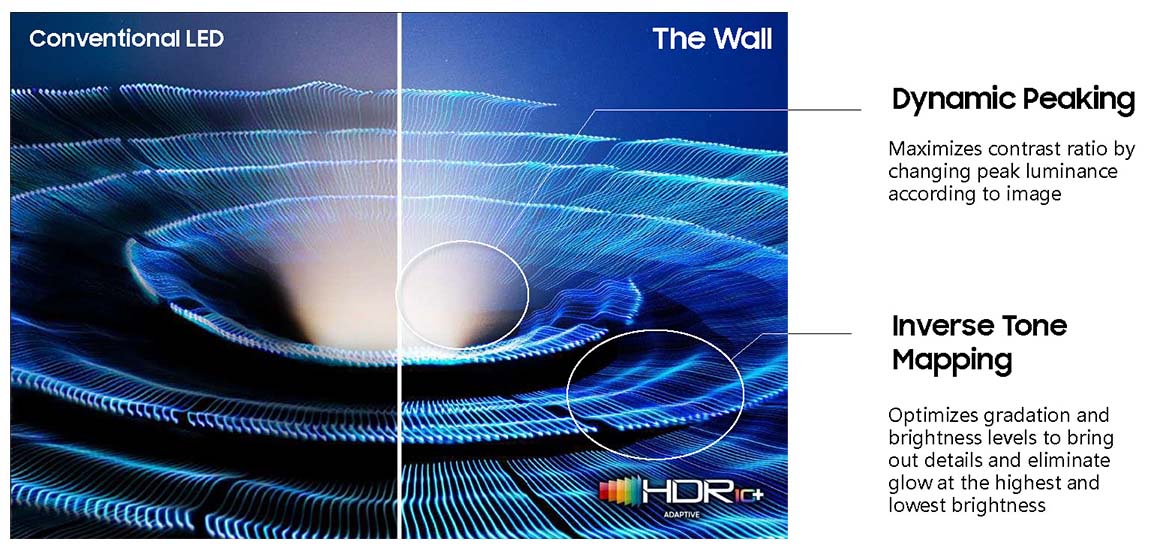

Extraordinary Viewing Experience
Present images in ideal contrast and peak brightness using the Micro HDR Technology. Equipped with several groundbreaking technologies and a powerful AI processor to display optimized picture quality in both 2K and 4K resolutions.
Black Seal Technology
Deliver purer black levels and better contrast ratio with a deep black background. Besides, The Wall also offers 20-bit processing to present smooth gradients and continuous shadow details with a precise linear grayscale.
Ultra Chroma Technology
Narrow wavelengths help to provide true-to-life image displays. Produce RGB colors that are more accurate and two times purer than conventional LED displays.
Black Seal
Technology
Deliver purer black levels and better contrast ratio with a deep black background. Besides, The Wall also offers 20-bit processing to present smooth gradients and continuous shadow details with a precise linear grayscale.
Ultra Chroma
Technology
Narrow wavelengths help to provide true-to-life image displays. Produce RGB colors that are more accurate and two times purer than conventional LED displays.
Quick Installation
Step 1 : Mount the wall brackets.
Step 2 : Dock the background plates.
Step 3 : Hang 3 or 4 preset modules.
Step 4 : Complete the installation in 2 hours.

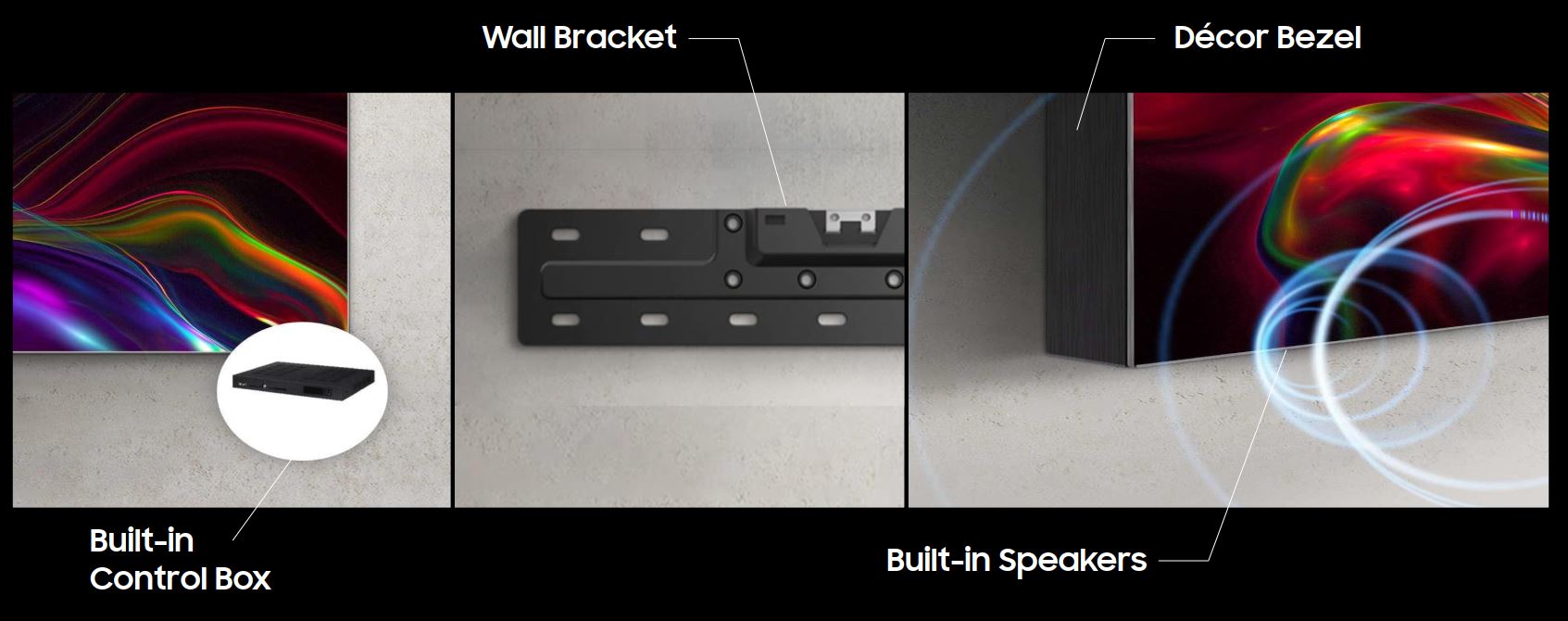

All-inclusive Components
Equipped with a built-in control box, The Wall All-in-One eliminates time-consuming configuration. Besides, no additional components or purchases are needed. All critical components including wall brackets, deco bezels and speakers come together with The Wall.
Product Lineup
Product Lineup
146" 4K
| Model | IAB 146″ 4K |
| Pixel Pitch | 0.84mm |
| Resolution | 3,840 x 2,160 px |
| Contrast ratio | 24,000:1 |
| Brightness | 1,600nit (Peak) / 500nit (Max) |
| Video Rate | 50/60Hz, 100/120 (FRC) Hz |
| Weight | 168kg per screen |
| Dimensions | 3,225.6 x 1,814.4 x 49 mm |
146" FHD
| Model | IAB 146″ 2K |
| Pixel Pitch | 1.68mm |
| Resolution | 1,920 x 1,080 px |
| Contrast ratio | 22,000:1 |
| Brightness | 1,400nit (Peak) / 500nit (Max) |
| Video Rate | 50/60Hz, 100/120 (FRC) Hz |
| Weight | 168kg per screen |
| Dimensions | 3,225.6 x 1,814.4 x 49 mm |
110" FHD
| Model | IAB 110″ 2K |
| Pixel Pitch | 1.26mm |
| Resolution | 1,920 x 1,080 px |
| Contrast ratio | 24,000:1 |
| Brightness | 1,600nit (Peak) / 500nit (Max) |
| Video Rate | 50/60Hz, 100/120 (FRC) Hz |
| Weight | 108kg (TBD) per screen |
| Dimensions | 2,419.2 x 1,360.8 x 49 mm |
For more information about Samsung The Wall All-in-One, feel free to call / WhatsApp us.
General Sales +6012-680 7800
146" 4K
| Model | IAB 146″ 4K |
| Pixel Pitch | 0.84mm |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Resolution | 3,840 x 2,160 pixels |
| Diode Type | Flip-chip RGB LED |
| Dimensions | 3,225.6 x 1,814.4 x 49 mm |
| No. of Modules (WxH) | 16 x 12 |
| Screen Weight | 168 kg |
| Brightness (Peak/Max) | 1,600 nit / 500 nit |
| Contrast Ratio | 24,000 : 1 |
| HDR Compatibility | LED HDR / HDR10+ support / AI Picture |
| Viewing Angle (H/V) | 170° / 155° |
| Bit Depth | 16 bit (Internal processing 20bit) |
| Color Temperature (Default) | 6,500K ± 500K (Floating bin) |
| Color Temperature (Adjustable) | 2,800K ~ 10,000K |
| Video Rate | 50/60 Hz 100/120 (FRC) Hz |
| Input Power Range | 100~240V AC, 50/60 Hz |
| Heat Generation – Max | 5800 (BTU/Screen) |
| Heat Generation – Typ | 3753 (BTU/Screen) |
| Refresh Rate | 3,840 Hz |
| Power Redundancy | No |
| Working Temperature / Humidity | 0°C~+40°C / 10%~80% RH |
| Storage Temperature / Humidity | -20°C~+45°C / 5%~95% RH |
| IP Rating | IP20 |
| LED Lifetime | 150,000 hours |
| Controller | Built-in |
| Input (Video) | DP1.2 (1), HDMI 2.0 (3), USB 2.0 (2) |
| Output | Audio (Stereo mini Jack) / eARC |
| WiFi/BT | O / O |
| External Control | RS232C(in), RJ45 |
| Speaker | 10W 2ch |
| Safety Certification | 62368-1, 60950-1 |
| EMC | Class A |
| Eye-protection | TUV Low Blue Light |
| Fire-protection | N/A |
| Accessories | Decor Frame, Frame Kit, Buffer parts (18 Modules, 1 T-Con, 1 SMPS) |
| Remote Control | IR Remote Controller |
| Box Dimension | 2,000 x 2,162 x 1,000 |
| Package Weight (per cabinet) | 301 kg |
| Power Consumption – Max | 1700 (W/Screen) |
| Power Consumption – Typ | 1100 (W/Screen) |
| Operating System | Tizen 6.5 |
| MagicINFO | Yes |
| Sensor | Temperature, Eco Sensor |
| Other Features | AI Picture, LED HDR, HDR10/10+, Dynamic Peaking |
146" FHD
| Model | IAB 146″ 2K |
| Pixel Pitch | 1.68mm |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Resolution | 1,920 x 1,080 pixels |
| Diode Type | Flip-chip RGB LED |
| Dimensions | 3,225.6 x 1,814.4 x 49 mm |
| No. of Modules (WxH) | 16 x 12 |
| Screen Weight | 168 kg |
| Brightness (Peak/Max) | 1,400 nit / 500 nit |
| Contrast Ratio | 22,000 : 1 |
| HDR Compatibility | LED HDR / HDR10+ support / AI Picture |
| Viewing Angle (H/V) | 170° / 155° |
| Bit Depth | 16 bit (Internal processing 20bit) |
| Color Temperature (Default) | 6,500K ± 500K (Floating bin) |
| Color Temperature (Adjustable) | 2,800K ~ 10,000K |
| Video Rate | 50/60 Hz 100/120 (FRC) Hz |
| Input Power Range | 100~240V AC, 50/60 Hz |
| Heat Generation – Max | 4231 (BTU/Screen) |
| Heat Generation – Typ | 2934 (BTU/Screen) |
| Refresh Rate | 7,680 Hz |
| Power Redundancy | No |
| Working Temperature / Humidity | 0°C~+40°C / 10%~80% RH |
| Storage Temperature / Humidity | -20°C~+45°C / 5%~95% RH |
| IP Rating | IP20 |
| LED Lifetime | 150,000 hours |
| Controller | Built-in |
| Input (Video) | DP1.2 (1), HDMI 1.4 (3), USB 2.0 (2) |
| Output | Audio (Stereo mini Jack) / eARC |
| WiFi/BT | O / O |
| External Control | RS232C(in), RJ45 |
| Speaker | 10W 2ch |
| Safety Certification | 62368-1, 60950-1 |
| EMC | Class A |
| Eye-protection | TUV Low Blue Light |
| Fire-protection | N/A |
| Accessories | Decor Frame, Frame Kit, Buffer parts (18 Modules, 1 T-Con, 1 SMPS) |
| Remote Control | IR Remote Controller |
| Box Dimension | 2,000 x 2,162 x 1,000 |
| Package Weight (per cabinet) | 301 kg |
| Power Consumption – Max | 1240 (W/Screen) |
| Power Consumption – Typ | 860 (W/Screen) |
| Operating System | Tizen 6.5 |
| MagicINFO | Yes |
| Sensor | Temperature, Eco Sensor |
| Other Features | AI Picture, LED HDR, HDR10/10+, Dynamic Peaking |
110" FHD
| Model | IAB 110″ 2K |
| Pixel Pitch | 1.26mm |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Resolution | 1,920 x 1,080 pixels |
| Diode Type | Flip-chip RGB LED |
| Dimensions | 2,419.2 x 1,360.8 x 49 mm |
| No. of Modules (WxH) | 12 x 9 |
| Screen Weight | 108 kg (TBD) |
| Brightness (Peak/Max) | 1,600 nit / 500 nit |
| Contrast Ratio | 24,000 : 1 |
| HDR Compatibility | LED HDR / HDR10+ support / AI Picture |
| Viewing Angle (H/V) | 170° / 155° |
| Bit Depth | 16 bit (Internal processing 20bit) |
| Color Temperature (Default) | 6,500K ± 500K (Floating bin) |
| Color Temperature (Adjustable) | 2,800K ~ 10,000K |
| Video Rate | 50/60 Hz 100/120 (FRC) Hz |
| Input Power Range | 100~240V AC, 50/60 Hz |
| Heat Generation – Max | 9504 (BTU/Screen) |
| Heat Generation – Typ | 7104 (BTU/Screen) |
| Refresh Rate | 3,840 Hz |
| Power Redundancy | No |
| Working Temperature / Humidity | 0°C~+40°C / 10%~80% RH |
| Storage Temperature / Humidity | -20°C~+45°C / 5%~95% RH |
| IP Rating | IP20 |
| LED Lifetime | 150,000 hours |
| Controller | Built-in |
| Input (Video) | DP1.2 (1), HDMI 1.4 (3), USB 2.0 (2) |
| Output | Audio (Stereo mini Jack) / eARC |
| WiFi/BT | O / O |
| External Control | RS232C(in), RJ45 |
| Speaker | 10W 2ch |
| Safety Certification | 62368-1, 60950-1 |
| EMC | Class A |
| Eye-protection | TUV Low Blue Light |
| Fire-protection | N/A |
| Accessories | Decor Frame, Frame Kit, Buffer parts (12 Modules, 1 T-Con, 1 SMPS) |
| Remote Control | IR Remote Controller |
| Box Dimension | TBD |
| Package Weight (per cabinet) | 148 kg |
| Power Consumption – Max | 1000 (W/Screen) |
| Power Consumption – Typ | 2080 (W/Screen) |
| Operating System | Tizen 6.5 |
| MagicINFO | Yes |
| Sensor | Temperature, Eco Sensor |
| Other Features | AI Picture, LED HDR, HDR10/10+, Dynamic Peaking |
