P1.3 Indoor LED Module

P1 LED Display Module

Fine Pitch Indoor LED Display

  • Lightweight LED screen panel with a pixel pitch of 1.0mm
  • Deliver high contrast image with deeper black level
  • Support multiple installation methods

1.0mm Fine Pixel Pitch

P1.0 fine pitch indoor LED display is one of the most suitable displays for various indoor applications such as airport, conference room, event, seminar and exhibition. High contrast ratio and high brightness.

Vibrant LED Display

P1 LED Screen

  • P1.0 LED display module with a pixel pitch of 1mm.
  • Easy-handling lightweight LED display panel.
  • Optimized for high-definition viewing performance.
  • Consistent and uniform picture quality.

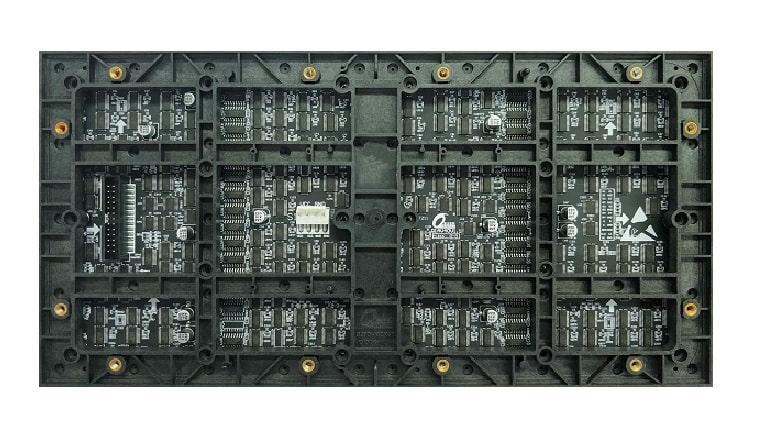

P1.3 Indoor LED Module
P1.3 Indoor LED Module

High Contrast

Reproduce accurate colors with high contrast ratio.

Wide Applications

Widely used for various indoor applications.

Easy Installation

Lightweight module enables easy installation & maintenance.

High Refresh Rate

High refresh rate helps to deliver smoother-looking motion.

P1.0 LED Display - Specification

ModelP1.0
Pixel Pitch1.0mm
Module Size320 x 160mm
Module Resolution320 x 160 dots
LED Lamp TypeSMD 0808
Brightness450 – 600nits (Adjustable)
Refresh Rate3,840Hz
Greyscale16-bit (281 trillion color) / 65,536 shades per primary color
Driving Method1/40
Min Viewing Distance> 1.0 meter
Pixel Density / m21,000,000 dots
Standard PanelMagnesium Alloy
Power Rating (Typ)316W/m2
Max Power Rating790W/m2
MaintenanceFully Front Accessible

P1 Fine Pitch Applications

Conference - P1.5 LED Display Application

Event Conference

Meeting Room - P1.5 LED Display Application

Meeting Room

Monitoring Center - P1.8 LED Display Application

Monitoring Room
