P1.2 Indoor LED Module

P1.2 LED Display Module

Fine Pitch Indoor LED Display

  • Vivid and high quality LED display for various applications
  • Fine pixel pitch of 1.25mm
  • Durable and reliable

Fine Pixel Pitch 1.25mm

P1.2 fine pitch indoor LED display has both high reliability and high durability. Designed to meet various indoor applications, the LED screen delivers stunning viewing experience at an extremely short viewing distance.

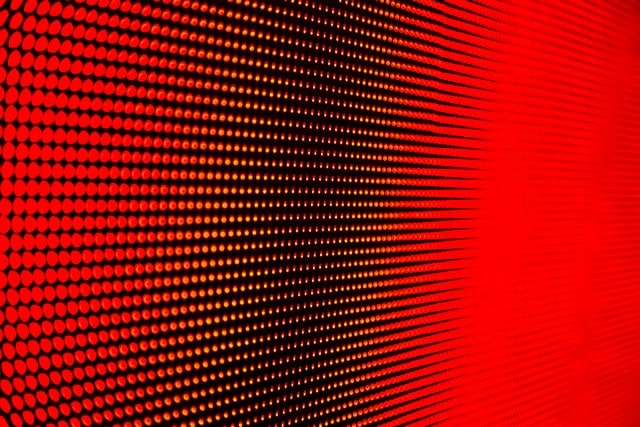

Micro LED screen display.

P1.2 LED Screen

  • Outstanding viewing experience with 1.25mm pixel pitch.
  • P1.2 Indoor LED Display is widely used in both public places and commercial areas.
  • Easy installation and maintenance.
  • High brightness and high definition.

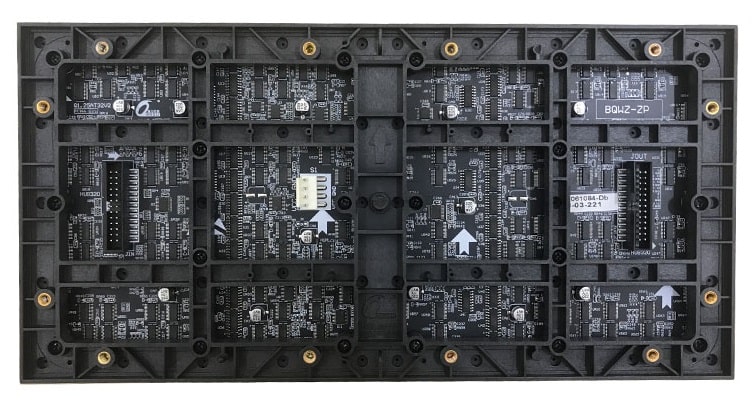

P1.2 Indoor LED Module

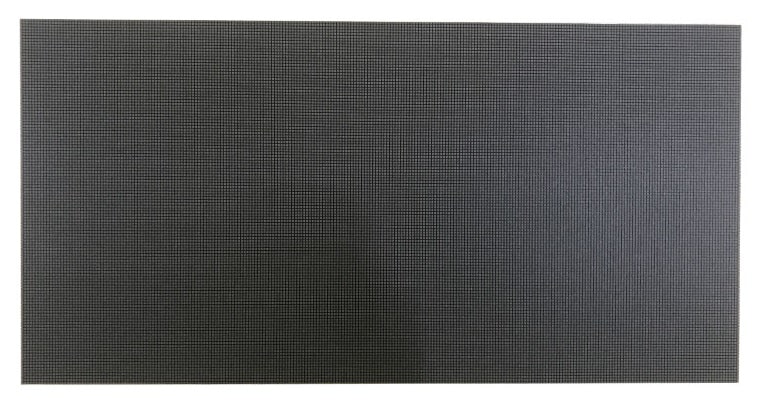

P1.2 Indoor LED Module

High Resolution

P1.25 LED screen provides a seamless viewing experience.

High Refresh Rate

Support refresh rate that can go up to 3,840Hz.

High Contrast

Offer excellent color and superlative contrast.

High Brightness

Generate far more brightness than an ordinary LCD display.

P1.2 LED Display - Specification

ModelP1.2
Pixel Pitch1.25mm
Module Size320 x 160mm
Module Resolution256 x 128 dots
LED Lamp TypeSMD 1010
Brightness450 – 600nits (Adjustable)
Refresh Rate3,840Hz
Greyscale16-bit (281 trillion color) / 65,536 shades per primary color
Driving Method1/32
Min Viewing Distance> 1.2 meter
Pixel Density / m2640,000 dots
Standard PanelMagnesium Alloy
Power Rating (Typ)232W/m2
Max Power Rating580W/m2
MaintenanceFully Front Accessible

P1.2 Fine Pitch Applications

Broadcast Studio - P1.8 LED Display Application

Broadcast Studio

Boardroom - P1.8 LED Display Application

Meeting Room

Control Room - P1.6 LED Display Application

Control Center
