P1.5 LED Display Module
Fine Pitch Indoor LED Display
- Fine and narrow pixel pitch for indoor usages
- A pixel pitch of 1.5mm
- Higher resolution with a shorter viewing distance
1.5mm Fine Pixel Pitch
BIG Indoor series’ P1.5 fine pitch indoor LED display is designed to deliver an extraordinary viewing experience and to increase viewer engagement. With a pixel pitch of 1.5mm, the viewing distance is greatly reduced and the resolution is higher than ever before.

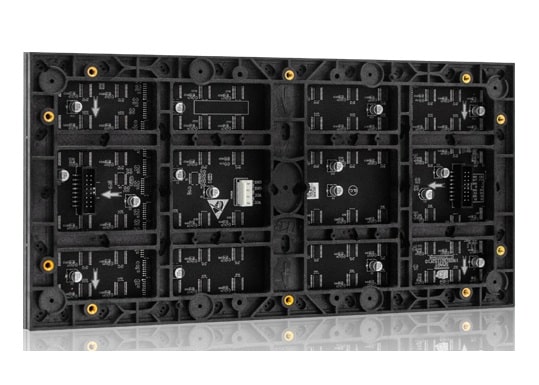

P1.5 LED Screen
- P1.5 Fine Pitch Indoor LED Screen Module provides a finer pixel pitch of 1.5mm.
- Viewing distance is never an issue, even if the viewer is viewing at a short distance from the screen.
- Easy installation and maintenance.
- Front maintenance is possible. Help to save space and reduce the complexity due to the rear maintenance.
- High brightness and contrast ratio.
Rich Color
Deliver sharp image with accurate color representation.
High Brightness
Ensure the best viewing experience with a bright screen.
High Contrast
Improve visibility and readability by using high color contrast.
High Refresh Rate
Refresh rate can go up to 3,840Hz.
P1.5 LED Display - Specification
| Model | P1.5 |
| Pixel Pitch | 1.53mm |
| Module Size | 320 x 160mm |
| Module Resolution | 208 x 104 dots |
| LED Lamp Type | SMD 1212 |
| Brightness | 600 – 800nits (Adjustable) |
| Refresh Rate | 3,840Hz |
| Greyscale | 16-bit (281 trillion color) / 65,536 shades per primary color |
| Driving Method | 1/26 |
| Min Viewing Distance | > 1.5 meter |
| Pixel Density / m2 | 422,500 dots |
| Standard Panel | Magnesium Alloy |
| Power Rating (Typ) | 232W/m2 |
| Max Power Rating | 580W/m2 |
| Maintenance | Fully Front Accessible |
P1.5 Fine Pitch Applications
Auditorium

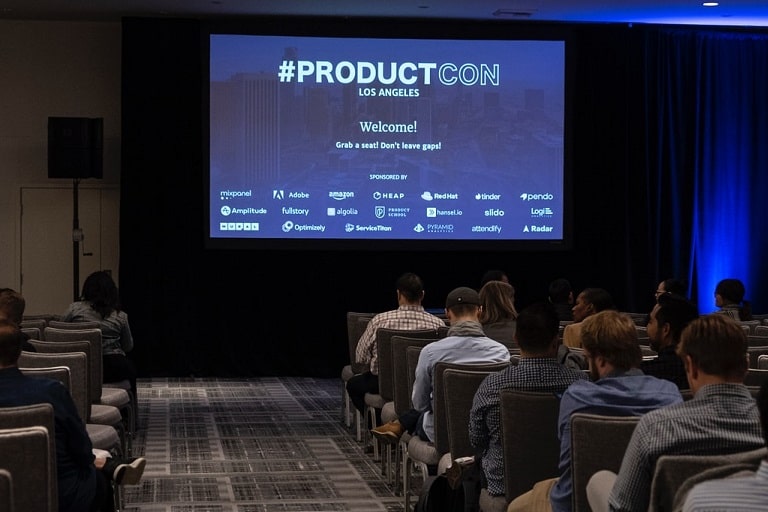

Conference Event
