P1.8 Indoor LED Module

P1.8 LED Display Module

Fine Pitch Indoor LED Display

  • Fine pixel pitch for indoor applications
  • A pixel pitch of 1.86mm
  • High-definition viewing experience at a close viewing distance

1.8mm Fine Pixel Pitch

BIG Indoor series’ P1.8 fine pitch indoor LED display is designed to offer high-definition viewing experience for various indoor applications.
Fine Pixel Pitch LED Application

P1.8 LED Screen

  • P1.8 Indoor LED Display Module offers a fine pixel pitch of 1.86mm.
  • Lower pixel pitch means higher image resolution.
  • Viewers can enjoy the content at an extremely close distance to the display.
  • Lightweight cabinets ensure easy installation and maintenance.
  • High contrast ratio.
  • High bit grayscales.

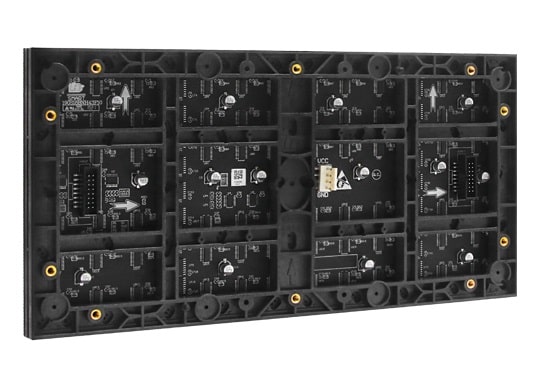

P1.8 Indoor LED Module
P1.8 Indoor LED Module

High Resolution

P1.8 LED screen module with high pixel density.

High Brightness

Perform well even in an area with harsh environment lighting.

High Contrast

High contrast ratio for deeper black and brighter white.

High Refresh Rate

Support refresh rate that can go up to 2,880Hz.

P1.8 LED Display - Specification

Pixel Pitch1.86mm
Module Size320 x 160mm
Module Resolution172 x 86 dots
LED Lamp TypeSMD 1515
Brightness600 – 800nits (Adjustable)
Refresh Rate> 2,880Hz
Greyscale16-bit (281 trillion color) / 65,536 shades per primary color
Driving Method1/43
Min Viewing Distance> 1.8 meter
Pixel Density / m2288,906 dots
Standard PanelMagnesium Alloy/ Bare/ Steel Iron
Power Rating (Typ)176W/m2
Max Power Rating440W/m2

P1.8 Fine Pitch Applications

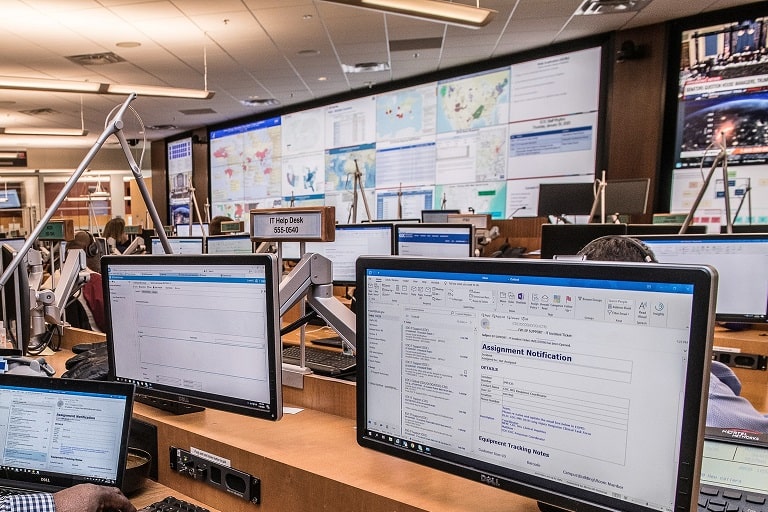

Monitoring Center - P1.8 LED Display Application

Monitoring Center

Broadcast Studio - P1.8 LED Display Application

Broadcast Studio

Boardroom - P1.8 LED Display Application
