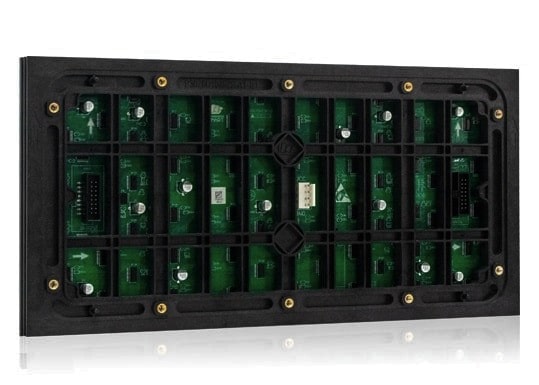

P2.5 Outdoor LED Module
Outdoor LED Display
- Outdoor LED screen with a pixel pitch of 2.5mm
- High screen brightness with a high refresh rate
- Suitable for various outdoor applications under extreme weather conditions
Pixel Pitch 2.5mm (Outdoor)
P2.5 outdoor LED display has a pixel pitch of only 2.5mm. It provides an outstanding outdoor viewing experience at a short viewing distance. Best for high-resolution outdoor applications.
P2.5 Outdoor LED Screen
- P2.5 Outdoor LED screen display with a pixel pitch of 2.5mm.
- High contrast ratio and screen brightness.
- Support diverse outdoor applications such as digital billboards, stadiums, outdoor advertisings and mobile LED trucks.
Image Quality
Supreme image quality with high brightness and contrast ratio.
Waterproof
IP65 rating ensures safe and waterproof components.
Various Formats
Support multiple media playback formats.
Quality Standard
Adhere to strict quality standards for extra reliability.
P2.5 Outdoor LED Display - Specification
| Model | P2.5 |
| Pixel Pitch | 2.5mm |
| Module Size | 320 x 160mm |
| Module Resolution | 128 x 64 dots |
| LED Lamp Type | SMD 1515 |
| Brightness | 5,000 ~ 7,500nits (Adjustable) |
| Refresh Rate | 1,920Hz ~ 3,840Hz |
| Driving Method | 1/16 |
| Min Viewing Distance | > 2.5 meter |
| IP Rating | IP65 |
| Pixel Density / m2 | 160,000 dots |
| Power Rating (Typ) | 250W/m2 |
| Max Power Rating | 750W/m2 |
| Panel Material | Die-cast Aluminium/ Aluminium/ Steel Iron |
Outdoor LED Screen Applications
Digital Billboard
Outdoor Advertising
