P8.0 Outdoor LED Module

P8 Outdoor LED Module

Outdoor LED Display

  • Outdoor LED display with a pixel pitch of 8.0mm
  • High brightness with high color uniformity
  • Modular design

Pixel Pitch 8.0mm (Outdoor)

P8 outdoor LED display is manufactured using high-quality LED lamps and components. High reliability is ensured. The outdoor LED screen can work well day and night.

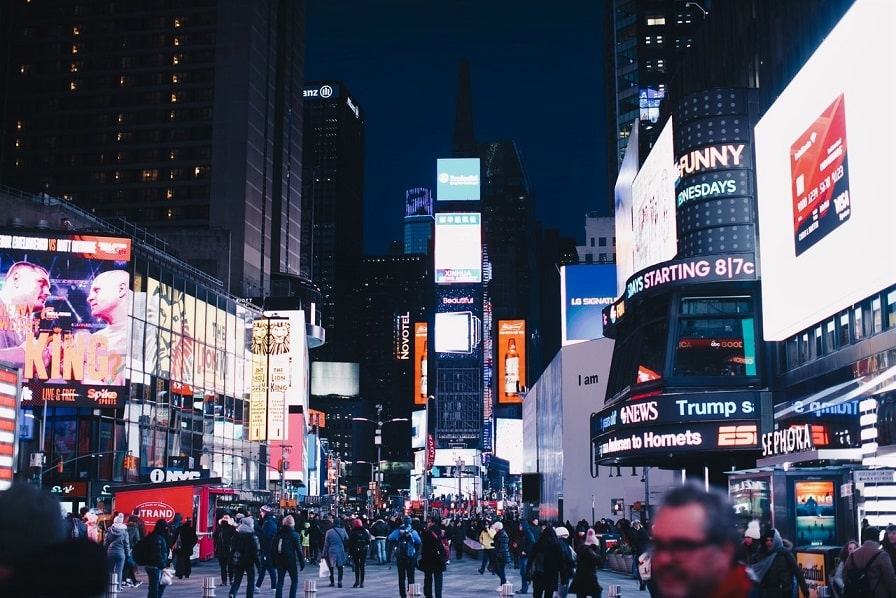

LED Digital Billboard

P8 Outdoor LED Screen

  • P8.0 Outdoor LED display with a pixel pitch of 8mm.
  • Precise color representation.
  • High definition and high screen brightness.
  • Support multiple installation methods. Build your display in several possible ways.
P8.0 Outdoor LED Module

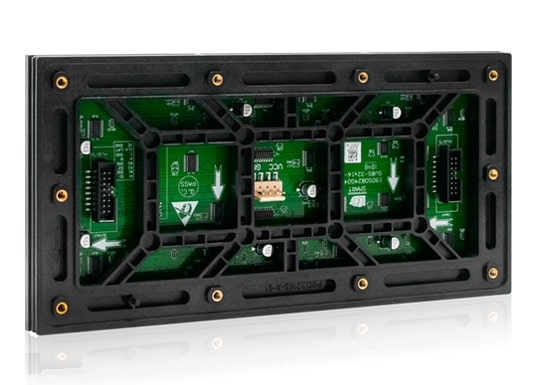

P8 Outdoor LED Display Module

High Brightness

Support screen brightness up to 7,500nits.

Quality Check

Components are tested against various tests to ensure durability.


IP65 rating ensures waterproof components for extra reliability.

Various Formats

Support various media formats such as video and graphics.

P8 Outdoor LED Display - Specification

Pixel Pitch8.0mm
Module Size320 x 160mm
Module Resolution40 x 20 dots
LED Lamp TypeSMD 3535
Brightness5,000 – 7,500nits (Adjustable)
Refresh Rate1,920Hz ~ 3,840Hz
Greyscale16-bit (281 trillion color) / 65,536 shades per primary color
Driving Method1/5
Min Viewing Distance> 8 meter
Pixel Density / m215,625 dots
IP RatingIP65
Power Rating (Typ)250W/m2
Max Power Rating750W/m2
Panel MaterialDie-cast Aluminium/ Aluminium/ Steel Iron

Outdoor LED Screen Applications

Applications Outdoor LED Content

Digital Billboard

Applications Outdoor LED Content

LED Signboard

Applications Outdoor LED Content

Advertising Board
