NovaStar MCTRL600

LED Display Controller

Utilize UART ports to cascade and control multiple units
Single-unit loading capacity of 1920 x 1200 at 60Hz
Support both fixed LED screen installation and rental

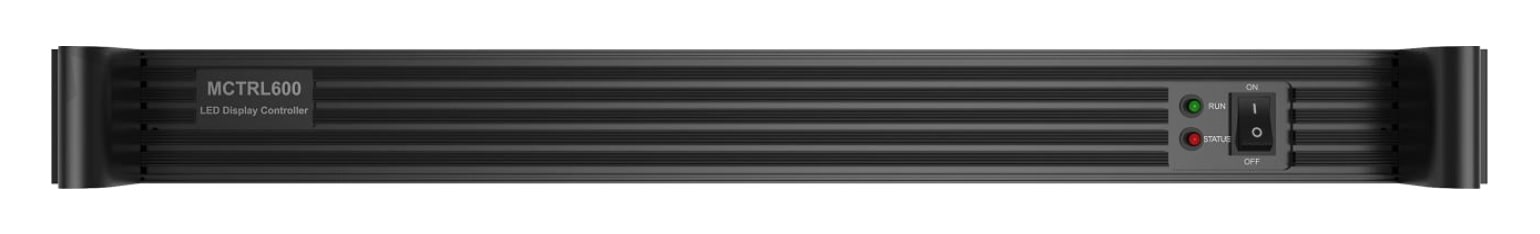

NovaStar MCTRL600 LED Display Controller

The MCTRL600 is an LED display controller or independent controller. It is widely used in various LED display applications such as sports centers, live events, concerts and security rooms.

What is an LED Display Controller?

An LED display controller or an LED control card is used to enable the LED screen to display video successfully. Incoming video signal will be encoded and processed.

Features

1 x SL-DVI
1 x HDMI 1.3
1 x AUDIO
4 x Gigabit Ethernet outputs
1 x light sensor connector
1 x type-B USB control port

2 x UART control ports
UART control ports are used to cascade devices.
Support NovaStar pixel level brightness and chroma calibration technology. Help to maintain chroma consistency.

Specifications

Indicator

Green (Run)

Device operating indicator.

Slow flashing (once in 2s) : No video input is available.
Normal flashing (4 times in 1s) : The video input is available.
Fast flashing (30 times in 1s) : The screen is displaying the startup image.
Breathing : The Ethernet port redundancy has taken effect.

Red (Status)

Device power indicator.

Off : The power is not supplied, or abnormal power supply.
Always On : The power supply is normal.

Input Connector

DVI IN

1 x SL-DVI input connector.

Resolution up to 1920 x 1200 at 60Hz.
Custom resolutions supported. Resolution with max width is 3840 x 600 @ 60Hz. Resolution with max height is 548 x 3840 @ 60Hz.
Do not support interlaced signal input.

HDMI IN

1 x HDMI 1.3 input connector.

Resolution up to 1920 x 1200 at 60Hz.
Custom resolutions supported. Resolution with max width is 3840 x 600 @ 60Hz. Resolution with max height is 548 x 3840 @ 60Hz.
Do not support interlaced signal input.
HDCP 1.4 compliant.

AUDIO

Audio input connector.

Output Connector

RJ45 x 4

RJ45 Gigabit Ethernet ports.

Capacity per port up to 650,000 pixels.
Redundancy between Ethernet ports is supported.

Control

USB	Type-B USB 2.0 port.
UART IN	Input port to cascade devices. Up to 20 devices can be cascaded.
UART OUT	Output port to cascade devices.

Video Source Features

SL-DVI	8bit, RGB4:4:4, Max Input Resolution 1920 x 1200 @ 60Hz 10bit/12bit, RGB4:4:4, Max Input Resolution 1440 x 900 @ 60Hz
HDMI 1.3	8bit, RGB4:4:4, Max Input Resolution 1920 x 1200 @ 60Hz 10bit/12bit, RGB4:4:4, Max Input Resolution 1440 x 900 @ 60Hz

Tech Specs

Functionality	Light sensor – connect to a light sensor to allow screen brightness adjustment.
Power	AC 100V – 240V ~ 50/60Hz
Rated Power Consumption	6.6W
Working Temperature	-20°C to 60°C
Working Humidity	10% RH to 90% RH, non-condensing
Dimension	482.0mm x 268.5mm x 44.4mm
Net Weight	2.5 kg (weight of a single device only)
Accessories	1 x power cord, 1 x USB cable, 1 x DVI cable
Certifications	FCC, CE, RoHS, EAC, IC, PFOS
