P1.8 BIG INDOOR LED Digital Poster

The BIG INDOOR LED Digital Poster is a cutting-edge display solution designed for modern indoor environments. Featuring a built-in audio system, a durable acrylic cover for protection against dust, water, and damage, it combines functionality with sleek design. Its portable, lightweight structure allows for easy placement, while offering multiple control options, such as PC, tablet, phone, and USB, for effortless content updates. Perfect for events, exhibitions, and retail spaces, this poster can be seamlessly joined with other units to create larger, visually striking displays.

SKU: P1.8 LED Digital Poster Categories: ,

P1.8 BIG INDOOR LED Digital Poster

Key Features

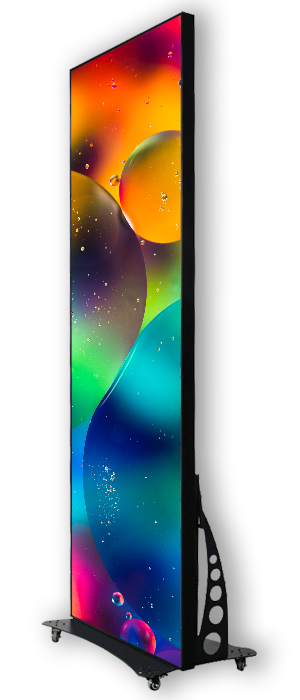

BIG Indoor LED Digital Poster 45 angle

Optimum Viewing Height

Our LED digital poster, measuring 640mm x 1920mm, is designed for optimal visibility and comfort. Featuring a 320 x 160 LED module, it ensures excellent resolution and brightness, delivering vibrant displays even in well-lit environments.

Portable Panel

Weighing under 48kg, each panel is lightweight and easy to set up, reducing labor costs. Its portability makes it perfect for mobile displays without compromising on quality.

Ultra Thin Design

With a slim 45mm profile, this LED digital poster offers flexible installation and integrates seamlessly into various settings, making it a versatile display solution.

Expand and Enhance Display Area

Combine up to five BIG Indoor LED Digital Posters to create a large format display of 3200mm x 1920mm (147”), perfect for digital backgrounds and events. More units can be added for an even bigger and more immersive viewing experience.

Expand and Enhance Display Area with BIG Indoor LED Digital Poster

Multiple Control Methods

Control the LED stand via PC, tablet, phone, or USB, with support for HDMI and WLAN/LAN connectivity. Manage multiple units across different locations, ensuring smooth content updates and improved brand presence.

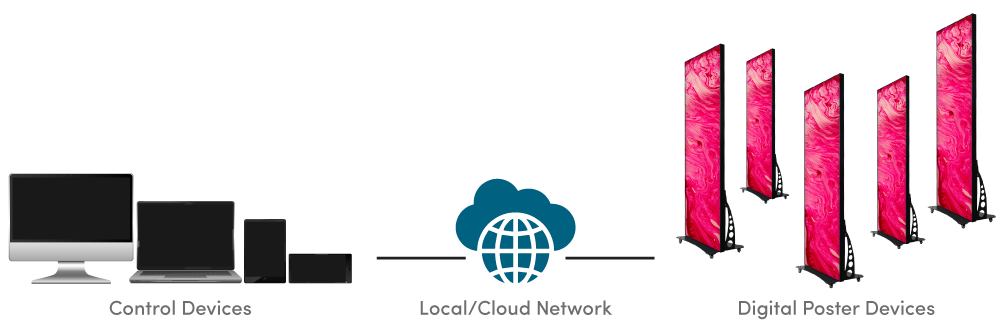

Multiple Control Devices Method to BIG Indoor LED Digital Poster

LED Module

Our LED poster uses high-quality SMD1515 for P1.8 models, with a 320x160mm module size. The black matte surface technology enhances brightness and reduces reflectivity, improving overall display quality.

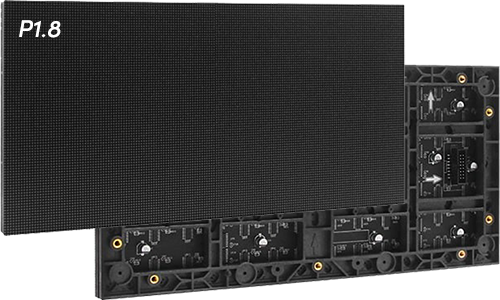

P1.8 LED Module for BIG Indoor LED Digital Poster

Specification

Model P1.8
Model No. BIG-i1.8-DP
Module Size (mm) 320 x 160
Module Resolution (dots) 172 x 86
Display Size (mm) 640 x 1920
Display Cabinet Size (WxHxD) 640 x 1920 x 45
Display Resolution (dots) 344 x 1032
Driving Method 1/43
Min Viewing Distance >1.8m
LED Type Full Black SMD1515 3-in-1 RGB
Colour Temperature (K) 3,000 ~16,000 Adjustable
Horizontal Viewing Angle (°) 160
Vertical Viewing Angle (°) 160
IP Rating IP20
Brightness (Nits) 600 (Adjustable)
Contrast Ratio 3,000:1
Dimming Levels Up to 256 Levels (Automatic or Manual Control)
Refresh Rate (Hz) 3,840 (High Refresh)
Frame Rate (Hz) 50 & 60
LED Lifetime (Hrs) 100,000
Greyscale 16-bit (281 trillion colours) / 65,536 shades per primary colour

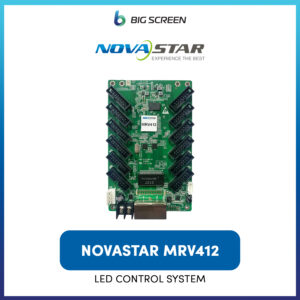

Control System (Optional) Novastar TB4 LED Player & MRV412 with Viplex / Huidu HD-B6 LED Player & R712 with HD-Player
Speaker Yes, Built-in 10W
Cover Material 3mm Thick Clear Acrylic Panel
Body Panel Metal Sheet & Portable Solid Base with Castor Wheels
Display Weight (kg) 48KG
Display Power Consumption 750W (Max) / 250W (Typ)
Power Supply 220 ~ 240VAC 50/60 Hz
Operation Temperature (°C) -10 ~ 40
Storage Temperature (°C) -10 ~ 60
Operatation Humidity (RH) 10 ~ 80% no condensation
Storage Humidity (RH) 10 ~ 85% no condensation

Brand

BIG INDOOR
