VEXO VC500-PTZ – Pan-Tilt-Zoom (PTZ) Camera

The VEXO VC-500-PTZ is a Pan-Tilt-Zoom (PTZ) Camera for professional A/V integration with 12x optical zoom for crystal clear image & video outputs. It suits to various applications such as every classroom, hospital, or business venue. Now equipped with V-GEN image enhancing engines for superior contrast & colour reproductions for better visual representation of output footage.

Equipped with USB & HDMI outputs, it is flexible and fits to multiple use case scenarios. User can view the cam- era’s output from their computer using the USB port or output to display device using HDMI port. The IR remote control enables user to control the camera zoom and angle freely, and able to further enhance the functionality by integrating with other devices via the RS232 port.

SKU: VEXO VC500-PTZ Categories: , ,
VEXO logo

Pan-Tilt-Zoom (PTZ) Camera

Key Features

Better Contrast & Colour

The camera is equipped with V-GEN image enhancing engines that improve the contrast and color reproduction of the video captured. Designed for use in video conferencing and online meetings. Suitable to be used in classrooms and corporate settings where multiple people need to be seen and heard.

Flexible Connectivity

The camera offers flexibility through its USB and HDMI outputs, allowing users to view the camera output on a computer or display device. it can also be intgerated with other devices via the RS232 port.

Wide Applications

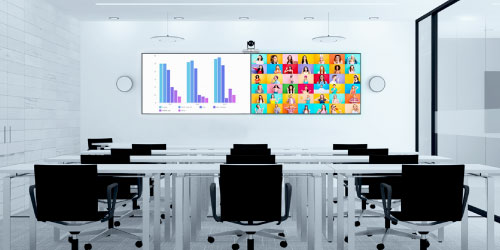

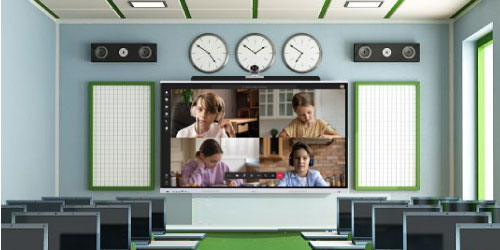

Suitable for use in various settings, such as hospitals , classrooms meeting rooms and conference rooms.

Pan-Tilt-Zoom

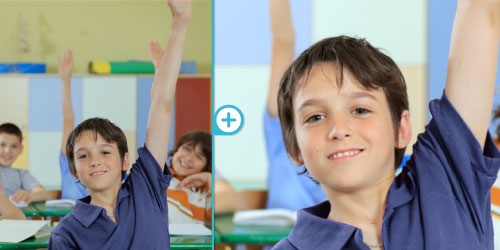

VEXO VC-500-PTZ is a professional-grade Pan-Tilt-Zoom (PTZ) camera with 12x optical zoom that produce high-quality images and video. Camera zoom and angle can be adjusted to further enhance the functionality.

Model VEXO VC500-PTZ
Sensor Sony 1/2.8" Progressive CMOS
Resolution 5.0 Megapixel (3.5 Megapixels - 16:9 mode)
Signal Protocol HDMI 1.3: 1080P60/50,1080P30/25,1080i60/50,720P60/50
USB 2.0: MJPG/H.264:320x240,640x480,720x576,1280x720,1920x1080
Signal Type PAL/NTSC
Lens 12X optical zoom, 12x digital zoom (total 24x combined zoom), F=3 9mm(W)~46 8 mm(T)
Focus Auto / Manual
Min Lux 0.5 Lux (day) / 0.1 Lux (n ght)
Control Protocol RS-232C, RS-422/485
Dimension (mm) 220x150x166 (WxLxH)
Weight 1.39KG
Operating Temperature 0°C ~ 40°C
Storage Temperatue -l0°C ~ 60°C
Packaging Includes VC212S x1pc, IR remote control x1pc, USB Cable x1pc,
HDMI Cable x1pc, Power adapter x1pc, Ceiling bracket x1pc

Brand

VEXO
