4K Ultra-High Definition
Supports ultra-high-definition content, ensuring every detail is crisp and vibrant. Whether you’re showcasing presentations, videos, or digital signage, our player delivers unmatched clarity and realism.
VP60
DIGITAL SIGNAGE MEDIA PLAYER
RICH PERIPHERAL INTERFACES | 4K UHD | INDUSTRIAL DESIGN

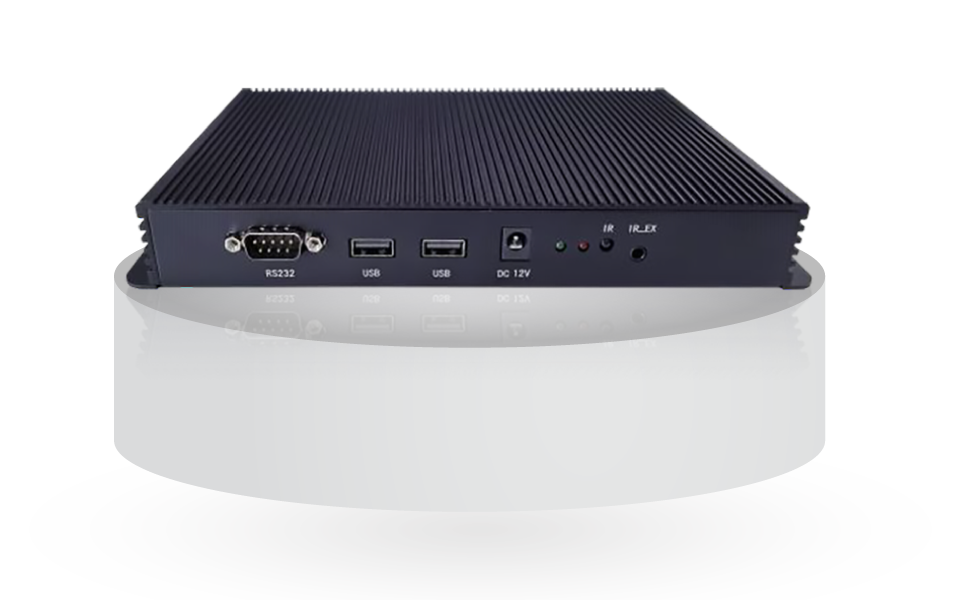

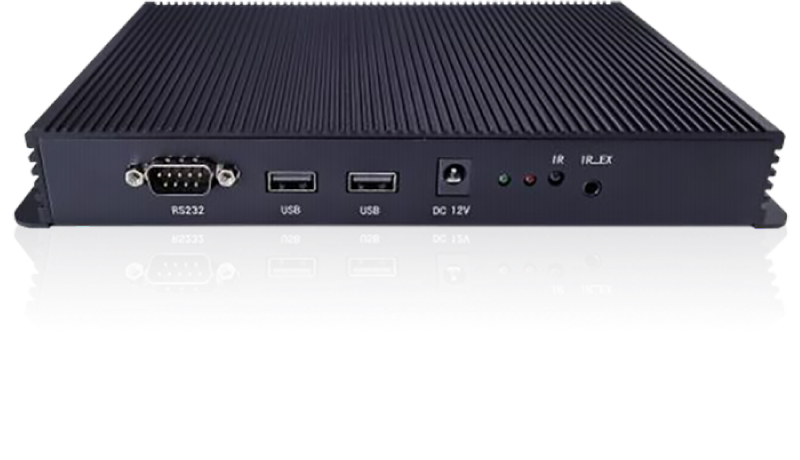

VP60 Digital Signage Media Player
VEXO Media Player VP60 uses the Rockchip RK3399 processor with 6 cores and up to 2.0GHz speed. It comes with 2GB of DDR3 memory (optional 4GB) and 8GB of storage (optional 32GB). Featuring Mali-T864 GPU, it supports 4K resolution and H.265 hardware decoding for smooth, high-quality video playback. With multiple interfaces, easy operation, and reliable performance, perfect for commercial displays.
What is a Digital Signage Media Player?
A digital signage media player is a device that displays digital content on screens. It’s used in places like stores, offices, airports, and public areas. These players help connect the digital signage to a Content Management System (CMS), allowing users to manage and publish their content effectively. They also enable the display of real-time updates and dynamic content through internet connectivity. They support various display types and provide smooth playback of high-quality content. Digital signage media players are essential for showing ads, announcements, schedules, and information effectively on screens.
Versatile Connectivity
- HDMI output
- Support LAN, WiFi, 4G hybrid networking
- Support external expansion equipment
Industrial Design
- Durability and aesthetics, reflecting top-notch production standards.
- Hassle-free user experience.
- Guarantees stability and efficiency in diverse environments.
Multi-Level Encryption Algorithm
- End-to-end encryption technology from platform to terminal.
- Data content security and integrity verification.
- Comparison of digital signatures when various media files are issued.
Versatile Connectivity
- HDMI output
- Support LAN, WiFi, 4G hybrid networking
- Support external expansion equipment
Industrial Design
- Durability and aesthetics, reflecting top-notch production standards.
- Hassle-free user experience.
- Guarantees stability and efficiency in diverse environments.
Multi-Level Encryption Algorithm
- End-to-end encryption technology from platform to terminal.
- Data content security and integrity verification.
- Comparison of digital signatures when various media files are issued.
Digital Signage Media Player Lineup
VP40 Digital Signage Media Player
Digital signage player for 4K Ultra HD applications.
Applications of Digital Signage Media Player
Transportation Hub
Retail Store

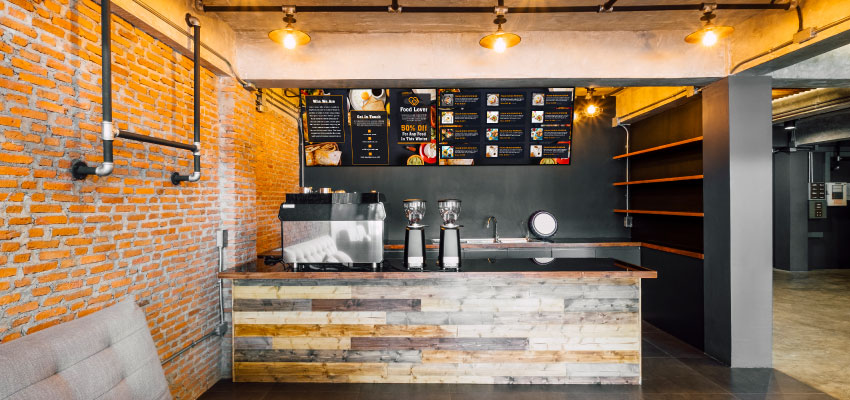

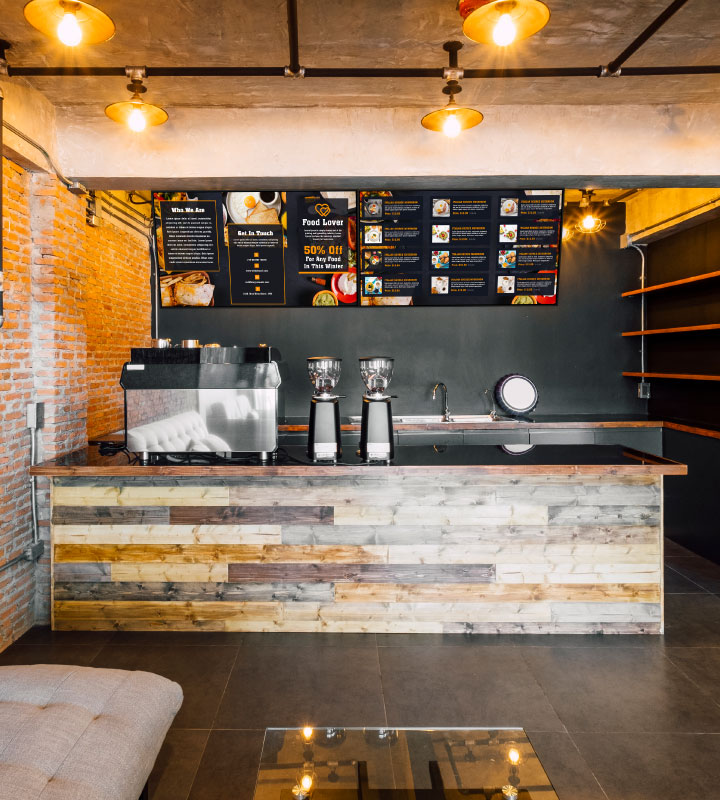

Food and Beverage
Health Centres
Specifications
| Model | VP60 4K UHD Digital Signage Media Player |
|---|---|
| Hardware Configuration | |
| CPU | Rockchip RK3399 + Six-core 64-bit (dual C CPU ortex-A72 large cores + quad Cortex-A53 small cores) at 1.8GHz |
| RAM | LPDDR4 4GB |
| ROM | 4 Core ARM Mali-T864 GPU |
| GPU | Yoshi Tannamuri |
| Resolution | Support 4K resolution (3840px x 2160px) |
| Main Features | |
| OS | Andoroid 7.1 |
| Contents | Video/Image/Subtitle/LOGO/Time/Day/Weather/Background divided area display |
| Content Mangement | CDMS (B/S architecture) C/S architecture, ADPE / EzPoster program production softwa |
| Media Formats | |
| Video | MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, FLV |
| Audio | MP3, ACC |
| Image | JPG, JPEG, BMP, PNG, GIF |
| Interfaces | |
| Power Port | DC×1, 5.5*2. 1/2.5mm female chassis connector, 12V |
| Video Output | HDMI * 1, HDMI Type-A, Output HDMI2.0, supports up to 4K 60Hz |
| Audio Output | Headset x 1, 3.5mm headset stand, output, 1Vrm |
| Infrared Interface | IR_EX×1, 3.5mm, remote extension cable jack |
| Network | Ethernet x1, RJ45, 100M/1000M | Wi-Fi x1,2.4G&5G, 802.11 b/g/n/ac | Support 4G network (Optional module), MINI PCI-E 52P |
| USB Port | USB 2.0×3 ，USB Type-A*3 USB 3.0×2 ，USB Type -A*1&USB Type-C *1 |
| Serial Port | RS232×1, DB9 male socket, RS232*1 |
| GPIO Interface | GPIO EX×1 ，PH2.54mm8P* |
| TF Card Slot | TF card holder × 1, MicroSD, supports up to 128GB |
| SIM Card Slot | SIM card slot ×1 ，Mini SIM (optional) |
| Other Features | |
| RTC | RTC real time clock |
| Watchdog | Built-in watchdog, automatic recovery from abnormalities |
| Infrared Receiver | On-board IR receiver |
| Dimension (LxWxH) | 227.1 x 129.04 x 29.9mm |
| Front | |
|---|---|
| RS232 | RS232 serial port |
| USB | USB2.0 x 2 |
| DC 12V | 12V power connector |
| IR | Onboard IR receiver |
| IR EX | 3.5mm remote control extennsion cable jack |
| Rear | |
|---|---|
| WiFi | 2.4GHz WiFi Antenna |
| LAN | RJ45 |
| HDMI | HDMI out |
| Type-C | Type-C port |
| GPIO EX | GPIO EX port |
| AUDIO | Audio line output interface |
| OTG | USB 3.0 |
| SIM | SIM card socket |
| USB | USB 2.0 port | USB 3.0 port |
| TF CARD | TF slot |
| 4G | 4G Antennas |
